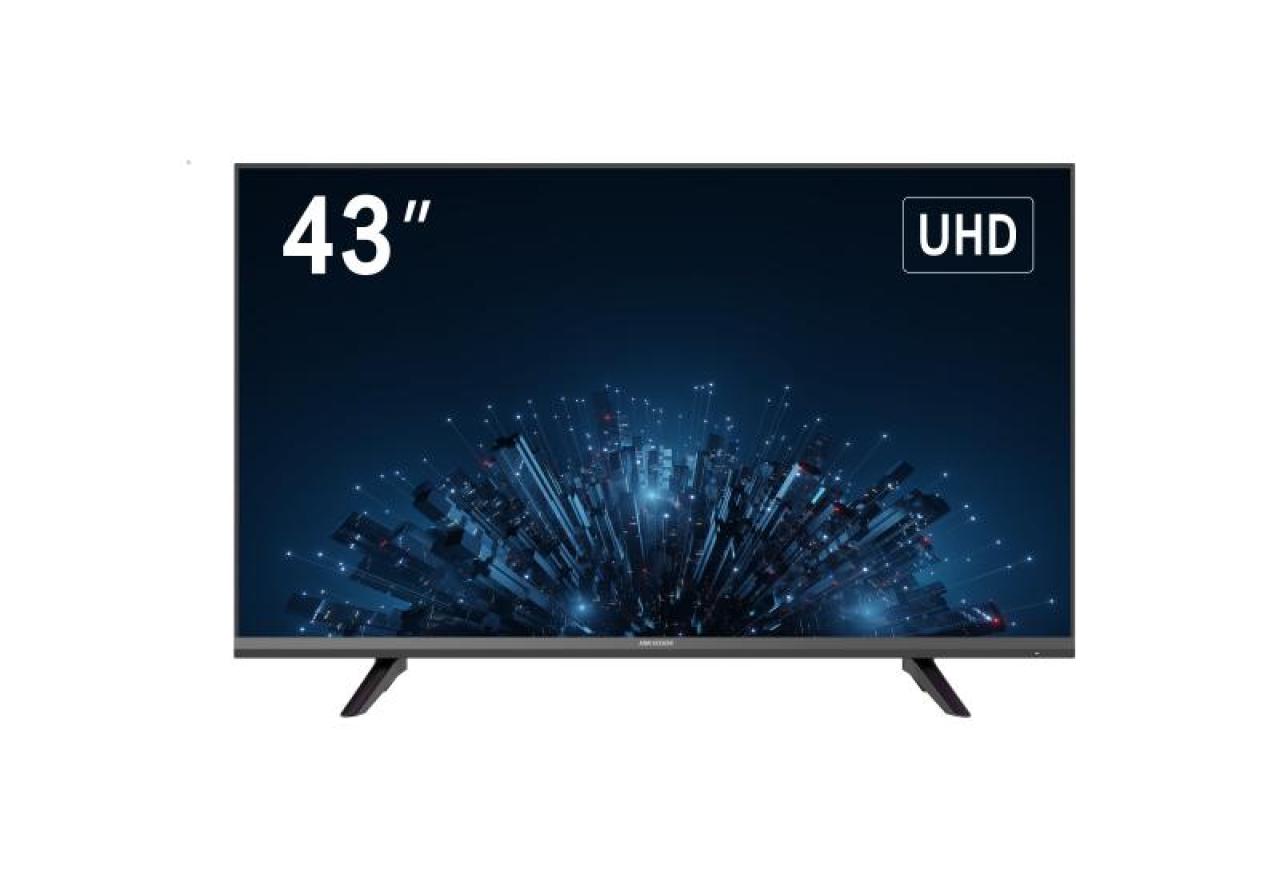

*Images are for illustrative purposes. Actual product appearance and specifications may vary.

NEW HOT

DS-D5243U3-1V0D(O-STD)(EU)

Name: DS-D5243U3-1V0D(O-STD)(EU)
Brand: Hikvision
Availability: InStock
Rating: 5.0 (1 reviews)

Ultra HD 3840 ×2160 @60 Hz.
Support H.265、H.264、MPEG4、MJPEG video codec
Support PS, RTP (H.265, H.264, MJPEG, MPEG2-TS)
Maximum 36CH Video Decoding Channel
1-screen layout support max. 32MP
Support ONVIF, RTSP camera protocol
Dual interface with HDMI, USB 2.0, RJ45
Support local UI, Web UI

View Less

Available models:

DS-D5243U3-1V0D

View more View Less

DS-D5243U3-1V0D

Specification
Resources
Accessories

Video Decoding
Video Decoding FormatH.264，H.265，Smart264，Smart265，MJPEG
Decoding ResolutionMax. 32 MP
Video Decoding ChannelMax 36CH
Video Decoding Capability1) H.264/H.265 format: Supports decoding 1-channel 32 MP/24 MP, 2-channel 12 MP, 4-channel 8 MP, 5-channel 6 MP, 9-channel 4 MP, 16-channel 1080p, 32-channel 720p, 36-channel D1 and lower resolution @ 30 fps in real time. 2) MJPEG format: Supports decoding 4-channel of 1080p and lower resolution @ 25 fps in real time. 3) HIK264 format: Supports decoding 2-channel of 720p and lower resolution @ 25 fps in real time.
Encrypted Stream Decoding ChannelMax 16CH
Encrypted Stream Decoding Capability1) H.264/H.265 format: Supports decoding 1-channel 32 MP/24 MP, 2-channel 12 MP, 4-channel 8 MP, 5-channel 6 MP, 9-channel 4 MP, 16-channel 1080p, 32-channel 720p, 36-channel D1 and lower resolution @ 30 fps in real time. 2) MJPEG format: Supports decoding 4-channel of 1080p and lower resolution @ 25 fps in real time. 3) HIK264 format: Supports decoding 2-channel of 720p and lower resolution @ 25 fps in real time.
Screen Split Quantity1/4/6/8/9/16/25/36
Scene Quantity4
Contingency Plan Quantity1
Audio DecodingSupported

Display
Screen Size43 inch
Active Display Area941.184 (H) mm × 529.416 (V) mm
Resolution3840 × 2160 @60 Hz
BacklightD-LED
Pixel Pitch0.2451 (H)mm × 0.2451 (V) mm
Brightness300 cd/㎡
Viewing Angle178° / 178°
Color Depth8 bit+FRC
Contrast Ratio4000 : 1
Response Time6.5 ms (typ)
Refresh Rate60 Hz
HazeHaze 25%, 3H
Color Gamut72% NTSC
Reliability7 * 24H

Interface
Video & Audio InputHDMI 2.0 ×1
Video & Audio OutputSpeaker Out × 2 ( 8Ω 10W ), Line-out 3.5mm × 1
Data Transmission InterfaceUSB2.0 ×2, 1000M LAN × 1, RELAY IN × 1, RELAY OUT × 2
Control InterfaceCONSOLE × 1, RS485 × 1

Power
Power Supply100-240 V～, 50/60 Hz, 1.0 A Max
Power Consumption≤80W
Standby Consumption≤ 0.5 W

Working Environment
Working Temperature0 °C to 50 °C (41 °F to 104 °F)
Working Humidity10% ~ 90% RH (Non-Condensing)
Storage Temperature-20 °C to 60 °C (14 °F to 140 °F)
Storage Humidity5% ~ 90% RH (Non-Condensing)

General
Speaker8 Ω 10 W ×2
Casing MaterialPlastic
VESA7.87 inch × 7.87 inch
Bezel Width0.04 inch (top/left/right) , 0.94 inch (bottom)
Product Dimensions (W × H × D)Without base: 956.7 (W) mm × 561.65 (H) mm × 76.06 (D) mm 37.67 (W) inch × 22.11 (H) inch × 2.99(D) inch With base: 956.7 (W) mm × 616.21 (H) mm × 242.11 (D) mm 37.67 (W) inch × 24.26 (H) inch × 9.53 (D) inch
Package Dimensions (W × H × D)1073 (W) mm × 668 (H) mm × 161 (D) mm 42.24 (W) inch × 26.3 (H) inch × 6.34 (D) inch
Net Weight6.88 ± 0.5 kg (15.93 ± 1.1 lb.)
Gross Weight9.77 ± 0.5 kg (22.11 ± 1.1 lb.)
Packing ListMonitor × 1, Base component × 1, Power cable × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1, Remote control × 1, Screw × 6
Remarks*The base is included by default. *The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information.

Video Decoding

Video Decoding Format

H.264，H.265，Smart264，Smart265，MJPEG

Decoding Resolution

Max. 32 MP

Video Decoding Channel

Max 36CH

Video Decoding Capability

1) H.264/H.265 format: Supports decoding 1-channel 32 MP/24 MP, 2-channel 12 MP, 4-channel 8 MP, 5-channel 6 MP, 9-channel 4 MP, 16-channel 1080p, 32-channel 720p, 36-channel D1 and lower resolution @ 30 fps in real time. 2) MJPEG format: Supports decoding 4-channel of 1080p and lower resolution @ 25 fps in real time. 3) HIK264 format: Supports decoding 2-channel of 720p and lower resolution @ 25 fps in real time.

Encrypted Stream Decoding Channel

Max 16CH

Encrypted Stream Decoding Capability

Screen Split Quantity

1/4/6/8/9/16/25/36

Scene Quantity

Contingency Plan Quantity

Audio Decoding

Supported

Display

Screen Size

43 inch

Active Display Area

941.184 (H) mm × 529.416 (V) mm

Resolution

3840 × 2160 @60 Hz

Backlight

D-LED

Pixel Pitch

0.2451 (H)mm × 0.2451 (V) mm

Brightness

300 cd/㎡

Viewing Angle

178° / 178°

Color Depth

8 bit+FRC

Contrast Ratio

4000 : 1

Response Time

6.5 ms (typ)

Refresh Rate

60 Hz

Haze

Haze 25%, 3H

Color Gamut

72% NTSC

Reliability

7 * 24H

Interface

Video & Audio Input

HDMI 2.0 ×1

Video & Audio Output

Speaker Out × 2 ( 8Ω 10W ), Line-out 3.5mm × 1

Data Transmission Interface

USB2.0 ×2, 1000M LAN × 1, RELAY IN × 1, RELAY OUT × 2

Control Interface

CONSOLE × 1, RS485 × 1

Power

Power Supply

100-240 V～, 50/60 Hz, 1.0 A Max

Power Consumption

≤80W

Standby Consumption

≤ 0.5 W

Working Environment

Working Temperature

0 °C to 50 °C (41 °F to 104 °F)

Working Humidity

10% ~ 90% RH (Non-Condensing)

Storage Temperature

-20 °C to 60 °C (14 °F to 140 °F)

Storage Humidity

5% ~ 90% RH (Non-Condensing)

General

Speaker

8 Ω 10 W ×2

Casing Material

Plastic

VESA

7.87 inch × 7.87 inch

Bezel Width

0.04 inch (top/left/right) , 0.94 inch (bottom)

Product Dimensions (W × H × D)

Without base: 956.7 (W) mm × 561.65 (H) mm × 76.06 (D) mm 37.67 (W) inch × 22.11 (H) inch × 2.99(D) inch With base: 956.7 (W) mm × 616.21 (H) mm × 242.11 (D) mm 37.67 (W) inch × 24.26 (H) inch × 9.53 (D) inch

Package Dimensions (W × H × D)

1073 (W) mm × 668 (H) mm × 161 (D) mm 42.24 (W) inch × 26.3 (H) inch × 6.34 (D) inch

Net Weight

6.88 ± 0.5 kg (15.93 ± 1.1 lb.)

Gross Weight

9.77 ± 0.5 kg (22.11 ± 1.1 lb.)

Packing List

Monitor × 1, Base component × 1, Power cable × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1, Remote control × 1, Screw × 6

Remarks

*The base is included by default. *The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information.
