AcuSeek NEW HOT
add compare icon

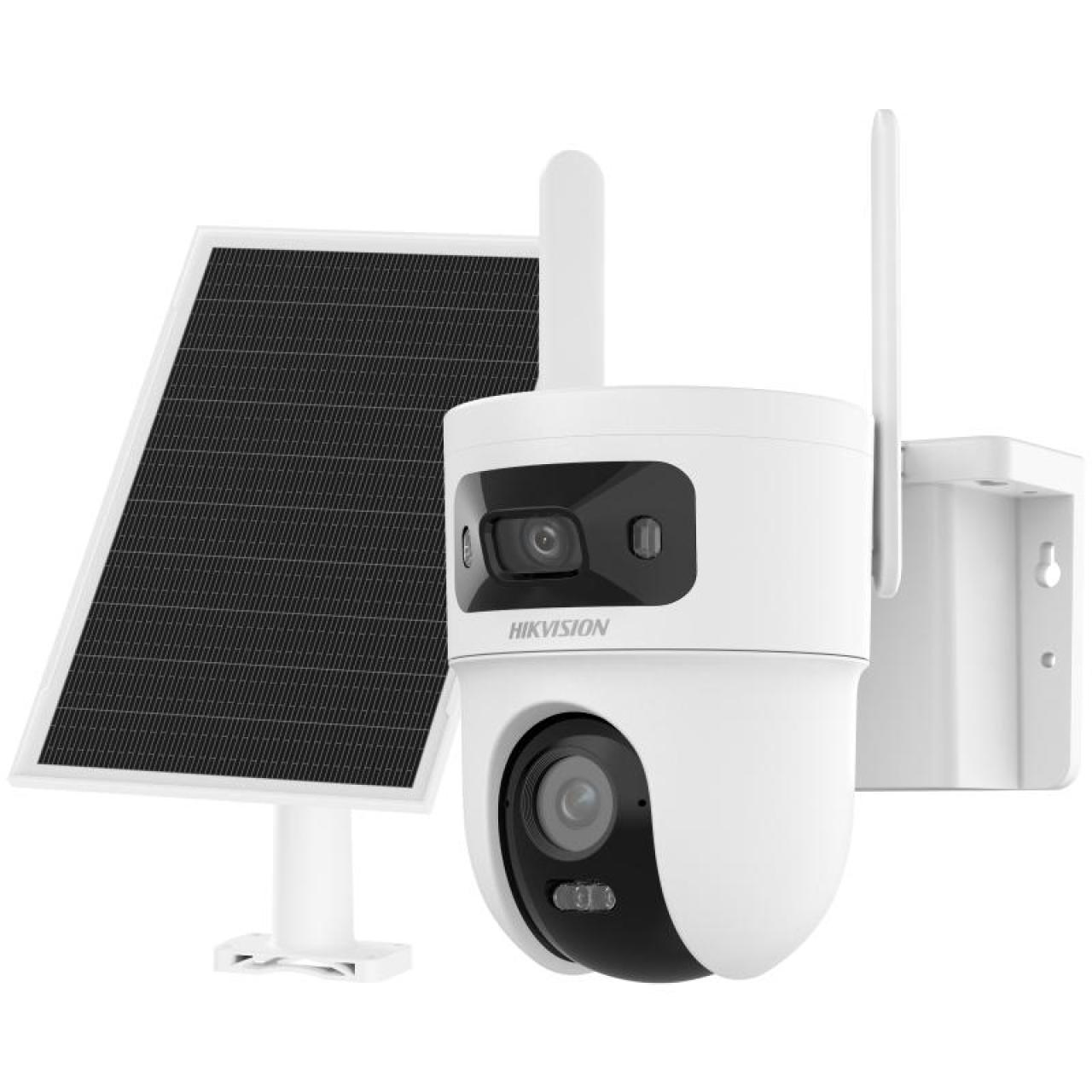

4+4MP 24/7 Solar 4G Dual-lens PT Camera

  • Support AOV Mode: 24/7 video recording
  • 8 W solar panel and 9000 mAh battery
  • Support 4G LTE data transmission
  • Smart Hybrid Light: 30 m white light and IR
  • Built-in microphone and speaker, support two-way audio
  • Smart Tracking: PT Camera achieves person tracking with Motion Detection 2.0
  • Panoramic Details: Wide-angle lens for background information, specific lens for close-up details
  • Motion Detection 2.0: Support person and vehicle detection

View Less
View more
Sales Inquiry

Available models:

DS-2CFSP8-D/4G(2.8+4mm)
View more View Less
DS-2CFSP8-D/4G

Specification

  • câmara
  • Image Sensor1/3" Progressive Scan CMOS
  • Max. Resolution2560 × 1440
  • Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON)
  • Shutter Time1 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: -170° to 170°,tilt: 0° to 80°
  • Lens
  • Focal Length & FOV2.8 mm, horizontal FOV 98.2°, vertical FOV 54.2°, diagonal FOV 114.6° 4 mm, horizontal FOV 78.8°, vertical FOV 42.3°, diagonal FOV 93.4°
  • Lens TypeFixed focal lens Bullet channel: 2.8 mm PT channel: 4 mm
  • ApertureF1.6
  • Lens MountM12
  • Iris TypeFixed
  • DORI
  • DORIBullet channel: 2.8 mm D: 61 m, O: 24 m, R: 12 m, I: 6 m PT channel: 4 mm D: 82 m, O: 32 m, R: 16 m, I: 8 m
  • Illuminator
  • Supplement Light TypeIR,White Light
  • Supplement Light RangeUp to 30 m
  • IR Wavelength850 nm
  • Smart Supplement LightYes
  • Video
  • Main StreamBullet channel 1: 50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720) PT channel 2: 50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
  • Sub StreamBullet channel 1: 50 Hz: 12.5 fps (768 × 432) 60 Hz: 15 fps (768 × 432) PT channel 2: 50 Hz: 12.5 fps (768 × 432) 60 Hz: 15 fps (768 × 432)
  • Video Compression Main stream: H.265, Sub-stream: H.265
  • Video Bit Rate32 Kbps to 8 Mbps
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR,VBR
  • Audio
  • Audio Compression G.711ulaw
  • Audio Bit Rate64 Kbps(G.711ulaw)
  • Audio Sampling Rate8 kHz
  • Environment Noise FilteringYes
  • Network
  • Simultaneous Live ViewUp to 6 channels
  • APISDK
  • User/HostUp to 32 users 3 user levels: administrator, operator, and user
  • ClientHik-Connect
  • Mobile Communication
  • StandardLTE-FDD
  • FrequencyEU:LTE-FDD: B1/3/5/7/8/20/28 LA:LTE-FDD: B2/3/4/5/7/8/28/66
  • Uplink and Downlink Data RateCat 1, uplink: 5.1 Mbps, downlink: 10.3 Mbps
  • SIM Card TypeNano SIM
  • Image
  • Image Settingsbrightness,contrast,white balance,saturation,sharpness
  • Day/Night SwitchDay,Night,Auto,Schedule
  • Image EnhancementBLC,HLC,3D DNR
  • Wide Dynamic Range (WDR)Digital WDR
  • Interface
  • On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Built-in MicrophoneYes,1 built-in microphone
  • Reset KeyYes
  • Built-in SpeakerYes, 1 built-in speaker
  • Event
  • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle))
  • Linkagenotify surveillance center,trigger recording,trigger capture,audible warning,Upload to memory card
  • General
  • Power12 V, 1.5 A, max. 18 W
  • MaterialPlastic
  • DimensionØ110.9 mm × 145.4 mm (Ø4.37" × 5.72")
  • Package Dimension322 mm × 197 mm × 210 mm (12.68" × 7.76" × 8.27")
  • Approx. 1560 g (3.44 lb.)
  • With Package WeightApprox. 2180 g (4.81 lb.)
  • Startup and Operating Conditions-20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
  • General FunctionMirror,flash log
  • Storage Conditions-20 °C to 50 °C (-4 °F to 122 °F). Humidity 70% or less (non-condensing)
  • Flashing LightNA
  • Battery
  • Battery TypeLithium
  • Capacity9000 mAh
  • Max. Charging Voltage8.4 V
  • Battery Voltage 6 V to 8.4 V
  • Operating TemperatureCharging: 0 °C to 45 °C (32 °F to 113 °F) Discharging: -20 °C to 50 °C (-4 °F to 122 °F)
  • Cycle LifetimeCap(800th) ≥ 80%
  • Battery WeightApprox. 170 g (0.37 lb.)
  • Approval
  • RFEN IEC 62311:2020, ETSI EN 301 489-17 V3.3.1, ETSI EN 301 908-1 V15.2.1, ETSI EN 301 489-1 V2.2.3, ETSI EN 301 908-13 V13.2.1
  • EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019
  • SafetyCB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
  • EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • Solar Power
  • Solar Panel TypeMonocrystalline silicon solar panel
  • Power Consumption8 W
  • Solar Panel Dimensions & WeightDimensions: 263.8 mm × 171.7 mm × 18.5 mm (10.39" × 6.76" × 0.73") Weight: 450 g (0.99 lb.)
  • Working Temperature-20 °C to 60 °C (-4 °F to 140 °F)
  • ProtectionIP65
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

câmara
Image Sensor
1/3" Progressive Scan CMOS
Max. Resolution
2560 × 1440
Min. Illumination
Color: 0.005 Lux @ (F1.6, AGC ON)
Shutter Time
1 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: -170° to 170°,tilt: 0° to 80°
Lens
Focal Length & FOV
2.8 mm, horizontal FOV 98.2°, vertical FOV 54.2°, diagonal FOV 114.6° 4 mm, horizontal FOV 78.8°, vertical FOV 42.3°, diagonal FOV 93.4°
Lens Type
Fixed focal lens Bullet channel: 2.8 mm PT channel: 4 mm
Aperture
F1.6
Lens Mount
M12
Iris Type
Fixed
DORI
DORI
Bullet channel: 2.8 mm D: 61 m, O: 24 m, R: 12 m, I: 6 m PT channel: 4 mm D: 82 m, O: 32 m, R: 16 m, I: 8 m
Illuminator
Supplement Light Type
IR,White Light
Supplement Light Range
Up to 30 m
IR Wavelength
850 nm
Smart Supplement Light
Yes
Video
Main Stream
Bullet channel 1: 50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720) PT channel 2: 50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream
Bullet channel 1: 50 Hz: 12.5 fps (768 × 432) 60 Hz: 15 fps (768 × 432) PT channel 2: 50 Hz: 12.5 fps (768 × 432) 60 Hz: 15 fps (768 × 432)
Video Compression
Main stream: H.265, Sub-stream: H.265
Video Bit Rate
32 Kbps to 8 Mbps
H.265 Type
Main Profile
Bit Rate Control
CBR,VBR
Audio
Audio Compression
G.711ulaw
Audio Bit Rate
64 Kbps(G.711ulaw)
Audio Sampling Rate
8 kHz
Environment Noise Filtering
Yes
Network
Simultaneous Live View
Up to 6 channels
API
SDK
User/Host
Up to 32 users 3 user levels: administrator, operator, and user
Client
Hik-Connect
Mobile Communication
Standard
LTE-FDD
Frequency
EU:LTE-FDD: B1/3/5/7/8/20/28 LA:LTE-FDD: B2/3/4/5/7/8/28/66
Uplink and Downlink Data Rate
Cat 1, uplink: 5.1 Mbps, downlink: 10.3 Mbps
SIM Card Type
Nano SIM
Image Settings
brightness,contrast,white balance,saturation,sharpness
Day/Night Switch
Day,Night,Auto,Schedule
Image Enhancement
BLC,HLC,3D DNR
Wide Dynamic Range (WDR)
Digital WDR
Interface
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone
Yes,1 built-in microphone
Reset Key
Yes
Built-in Speaker
Yes, 1 built-in speaker
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle))
Linkage
notify surveillance center,trigger recording,trigger capture,audible warning,Upload to memory card
General
Power
12 V, 1.5 A, max. 18 W
Material
Plastic
Dimension
Ø110.9 mm × 145.4 mm (Ø4.37" × 5.72")
Package Dimension
322 mm × 197 mm × 210 mm (12.68" × 7.76" × 8.27")
Approx. 1560 g (3.44 lb.)
With Package Weight
Approx. 2180 g (4.81 lb.)
Startup and Operating Conditions
-20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
General Function
Mirror,flash log
Storage Conditions
-20 °C to 50 °C (-4 °F to 122 °F). Humidity 70% or less (non-condensing)
Flashing Light
NA
Battery
Battery Type
Lithium
Capacity
9000 mAh
Max. Charging Voltage
8.4 V
Battery Voltage
6 V to 8.4 V
Operating Temperature
Charging: 0 °C to 45 °C (32 °F to 113 °F) Discharging: -20 °C to 50 °C (-4 °F to 122 °F)
Cycle Lifetime
Cap(800th) ≥ 80%
Battery Weight
Approx. 170 g (0.37 lb.)
Approval
RF
EN IEC 62311:2020, ETSI EN 301 489-17 V3.3.1, ETSI EN 301 908-1 V15.2.1, ETSI EN 301 489-1 V2.2.3, ETSI EN 301 908-13 V13.2.1
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019
Safety
CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Solar Power
Solar Panel Type
Monocrystalline silicon solar panel
Power Consumption
8 W
Solar Panel Dimensions & Weight
Dimensions: 263.8 mm × 171.7 mm × 18.5 mm (10.39" × 6.76" × 0.73") Weight: 450 g (0.99 lb.)
Working Temperature
-20 °C to 60 °C (-4 °F to 140 °F)
Protection
IP65
