AcuSeek NEW HOT
add compare icon

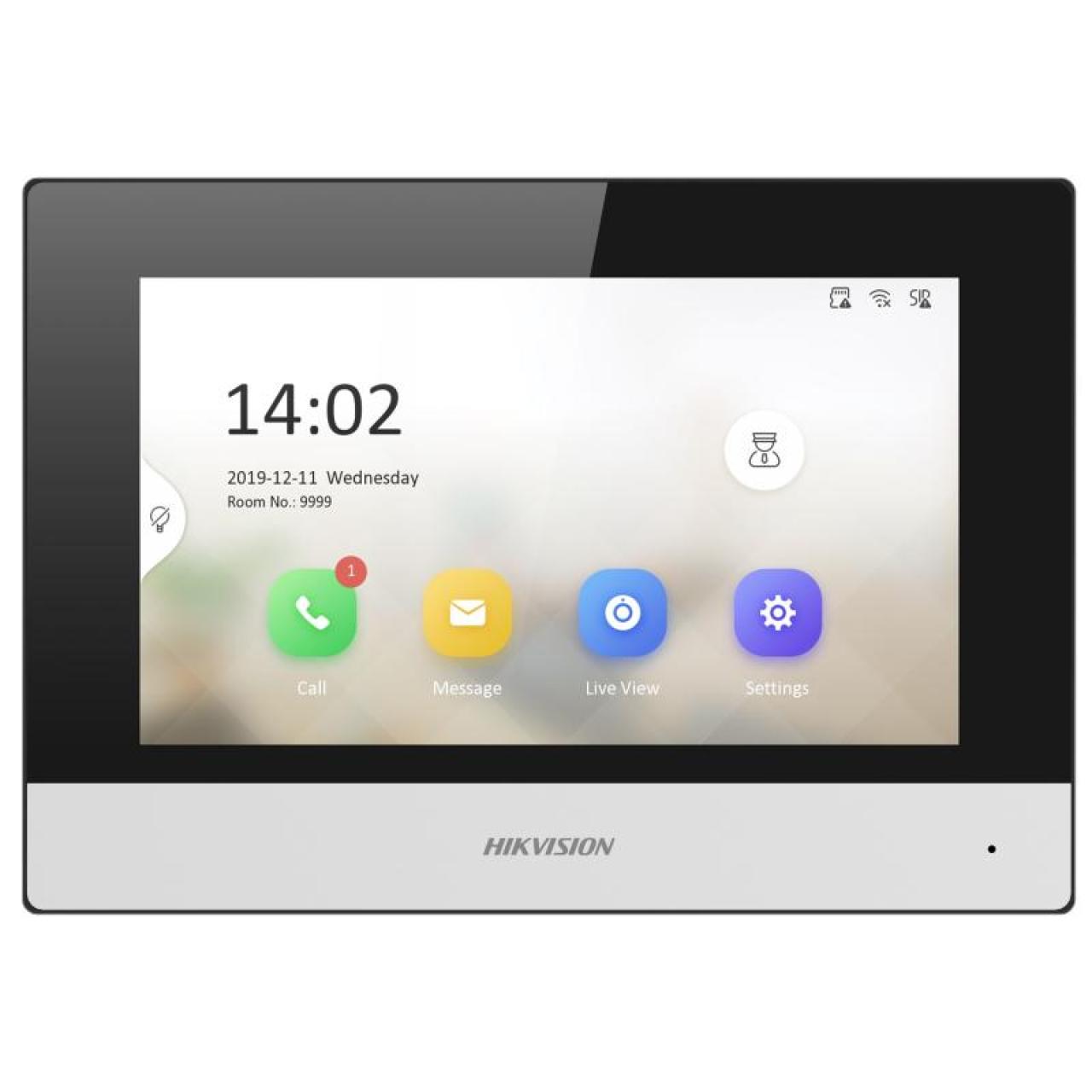

KH6 Series IP-Based Indoor Station

  • New UI V2.0: User friendly design
  • 7-inch colorful touch screen with resolution 1024 × 600
  • Standard PoE
  • Stores messages and capture pictures in the TF card
  • Remote unlocking via the client software or the mobile client
  • Views live videos of door stations and linked cameras
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-KH6320-WTE1(B)
View more View Less
DS-KH6320-WTE1(B)
Data Sheet

Specification

  • System parameters
  • Operation systemEmbedded Linux operation system
  • ROM32 MB
  • RAM128 MB
  • ProcessorEmbedded high performance processor
  • Display parameters
  • Screen size7-inch colorful TFT screen
  • Operation methodCapacitive touch screen
  • TypeColorful TFT screen
  • Resolution1024 × 600
  • Video parameters
  • Lens/
  • Resolution/
  • FOV/
  • Wide dynamic range (WDR)/
  • Video compression standard/
  • Focal length/
  • Audio parameters
  • Audio input1 built-in omnidirectional microphone
  • Audio compression standardG.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1
  • Audio output1 built-in loudspeaker
  • Audio compression bitrate64 Kbps
  • Audio qualityNoise suppression and echo cancellation
  • Volume adjustmentAdjustable
  • Capacity
  • Message capacityTF card inserted: 200 captured pictures, 200 alarm records Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records
  • Notice capacity200
  • Linked network camera capacity16
  • Linked indoor extensions capacity16
  • Linked doorphone capacity17
  • Network parameters
  • Network protocolTCP/IP, RTSP, SIP, IPv6, ONVIF
  • Wi-FiWiFi 802.11b/g/n
  • BluetoothReserved
  • 3G/4G/
  • Zigbee/
  • Device interfaces
  • Alarm input8
  • Network interface1 RJ-45 10/100Mbps self-adaptive
  • TAMPER/
  • RS-4851
  • USB/
  • TF cardSupport TF card, up to 128 GB
  • Alarm output/
  • Power supply outputMax. 12VDC 0.2 A (Only when powered by PoE)
  • Debugging port1
  • Relay2 relays, Max. 30VDC 0.3A
  • General
  • Button/
  • InstallationSurface mounting
  • Indicator/
  • Without package: 340 g (0.75 lb),With package: 610 g (1.34 lb)
  • Protective level/
  • Working temperature-10 °C to 50 °C (14 °F to 122 °F)
  • Working humidity10% to 90% (non-condensing)
  • Dimension (W × H × D)200 mm × 140 mm × 23.3 mm (7.87" × 5.51" × 0.92")
  • Battery/
  • Application environmentIndoor
  • Power supplyIEEE 802.3af, Standard PoE,12 VDC
  • LanguageEnglish, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
  • Power consumption≤ 12 W
  • MaterialPlastic casing
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

System parameters
Operation system
Embedded Linux operation system
ROM
32 MB
RAM
128 MB
Processor
Embedded high performance processor
Display parameters
Screen size
7-inch colorful TFT screen
Operation method
Capacitive touch screen
Type
Colorful TFT screen
Resolution
1024 × 600
Video parameters
Lens
/
Resolution
/
FOV
/
Wide dynamic range (WDR)
/
Video compression standard
/
Focal length
/
Audio parameters
Audio input
1 built-in omnidirectional microphone
Audio compression standard
G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1
Audio output
1 built-in loudspeaker
Audio compression bitrate
64 Kbps
Audio quality
Noise suppression and echo cancellation
Volume adjustment
Adjustable
Capacity
Message capacity
TF card inserted: 200 captured pictures, 200 alarm records Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records
Notice capacity
200
Linked network camera capacity
16
Linked indoor extensions capacity
16
Linked doorphone capacity
17
Network parameters
Network protocol
TCP/IP, RTSP, SIP, IPv6, ONVIF
Wi-Fi
WiFi 802.11b/g/n
Bluetooth
Reserved
3G/4G
/
Zigbee
/
Device interfaces
Alarm input
8
Network interface
1 RJ-45 10/100Mbps self-adaptive
TAMPER
/
RS-485
1
USB
/
TF card
Support TF card, up to 128 GB
Alarm output
/
Power supply output
Max. 12VDC 0.2 A (Only when powered by PoE)
Debugging port
1
Relay
2 relays, Max. 30VDC 0.3A
General
Button
/
Installation
Surface mounting
Indicator
/
Without package: 340 g (0.75 lb),With package: 610 g (1.34 lb)
Protective level
/
Working temperature
-10 °C to 50 °C (14 °F to 122 °F)
Working humidity
10% to 90% (non-condensing)
Dimension (W × H × D)
200 mm × 140 mm × 23.3 mm (7.87" × 5.51" × 0.92")
Battery
/
Application environment
Indoor
Power supply
IEEE 802.3af, Standard PoE,12 VDC
Language
English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
Power consumption
≤ 12 W
Material
Plastic casing
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
System parameters
  • System parameters
  • System parameters
  • System parameters
  • System parameters
Display parameters
  • Display parameters
  • Display parameters
  • Display parameters
  • Display parameters
Video parameters
  • Video parameters
  • Video parameters
  • Video parameters
  • Video parameters
  • Video parameters
  • Video parameters
Audio parameters
  • Audio parameters
  • Audio parameters
  • Audio parameters
  • Audio parameters
  • Audio parameters
  • Audio parameters
Capacity
  • Capacity
  • Capacity
  • Capacity
  • Capacity
  • Capacity
Network parameters
  • Network parameters
  • Network parameters
  • Network parameters
  • Network parameters
  • Network parameters
Device interfaces
  • Device interfaces
  • Device interfaces
  • Device interfaces
  • Device interfaces
  • Device interfaces
  • Device interfaces
  • Device interfaces
  • Device interfaces
  • Device interfaces
  • Device interfaces
General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V2.3.2_260803
B1Pro Indoor Station Firmware V2.3.2_build260803 Release Note
Applied to:
DS-KH6320-WTE1(B)
