AcuSeek NEW HOT
NEW
add compare icon

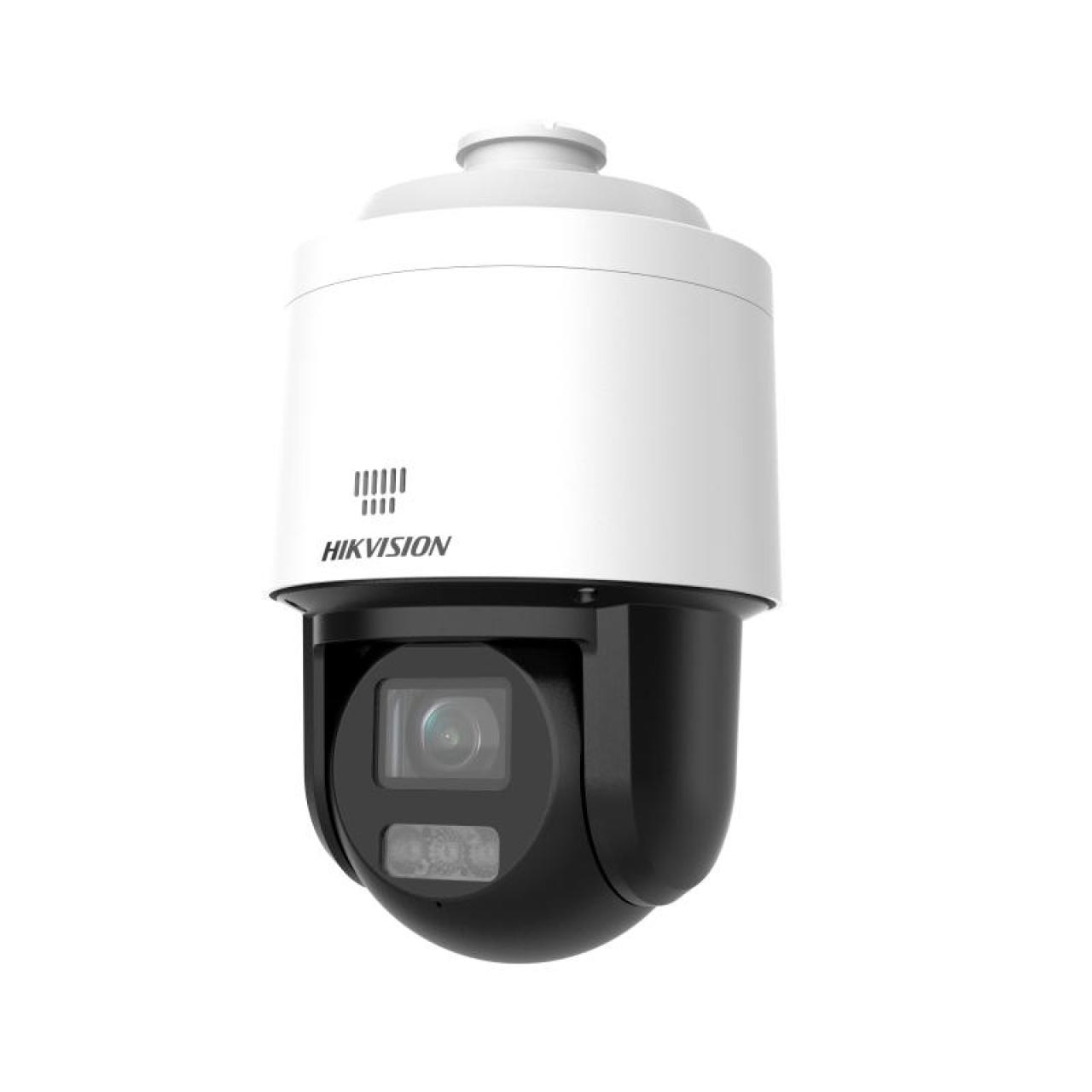

4 MP 16X Powered by DarkFighter Smart Hybrid Light Network PTZ Camera

  • High quality imaging with 4 MP resolution
  • Excellent low-light performance with powered-by-DarkFighter technology
  • Secures an expansive area with 16× optical zoom and 16× digital zoom
  • Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
  • Supports 12V DC & PoE+
  • Support Human and Vehicle Detection

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-2DE3C416MWG1-E
View more View Less
DS-2DE3C416MWG1-E NEW
Data Sheet

Specification

  • กล้อง
  • Image Sensor1/2.8" Progressive Scan CMOS
  • Min. IlluminationColor: 0.01 Lux @ (F1.7, AGC ON),B/W: 0.005 Lux @ (F1.7, AGC ON),0 Lux with IR
  • Shutter Speed1 s to 1/30,000 s
  • Slow ShutterYes
  • Day & NightICR
  • Zoom16 × optical,16 × digital
  • Max. Resolution2560 × 1440
  • Lens
  • Focusauto,manual,semi-auto
  • Focal Length5 to 80 mm
  • Zoom SpeedApprox. 3.3 s
  • FOVHorizontal field of view: 53.3° to 2.6°, vertical field of view: 30.6° to 1.5°, diagonal field of view: 60.5° to 3°
  • ApertureMax. F1.7
  • Illuminator
  • Supplement Light TypeIR,White Light
  • Smart Supplement LightYes
  • Supplement Light RangeWhite light distance: up to 30 m,IR distance: up to 80 m
  • PTZ
  • Movement Range (Pan)0° to 360°
  • Movement Range (Tilt)-5° to 90°
  • Pan SpeedPan speed: configurable from 1° to 35°/s, preset speed: 35°/s
  • Tilt SpeedTilt speed: configurable from 1° to 30°/s, preset speed 30°/s
  • Proportional PanYes
  • Presets300
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Power-off MemoryYes
  • Park ActionPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
  • 3D PositioningYes
  • PTZ Status DisplayYes
  • Scheduled TaskPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust
  • Video
  • Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Region of Interest (ROI)1 fixed regions for each stream
  • Main Stream50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
  • Video CompressionH.265,H.264,MJPEG
  • Video Bit Rate32 kbps to 16384 kbps
  • H.264 Typemain profile,baseline profile,high profile
  • H.265 Typemain profile
  • Scalable Video Coding (SVC)Yes
  • Audio
  • Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,AAC
  • Audio Bit RateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps; AAC : 16 kbps, 32 kbps, 64 kbps; MP3: 8 kbps, 16 kbps, 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps
  • Audio Sampling Rate8 kHz,16 kHz
  • Environment Noise FilteringYes
  • Network
  • API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
  • Network StorageNAS (NFS, SMB/ CIFS), ANR
  • ProtocolsSSL/TLS,ISUP,WebSocket,WebSockets,IPv4,IPv6,TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv4/IPv6,UDP
  • Simultaneous Live ViewUp to 6 channels
  • User/Host32
  • Security802.1X authenticated access,MAC address binding,Authenticated username and password,IP address filter,HTTPS encryption
  • ClientiVMS-4200,Hik-Connect
  • Web BrowserChrome80+，Firefox80+，Safari13+，Edge89
  • Image
  • Image Settingscontrast,gain,saturation,sharpness,brightness,white balance,adjustable by client software or web browser
  • SNR≥ 52 dB
  • DefogDigital defog
  • Day/Night Switchday, night, auto, scheduled-switch
  • Image EnhancementBLC,HLC,3D DNR
  • Privacy Mask24 programmable polygon privacy masks
  • Regional FocusYes
  • Regional ExposureYes
  • Image Parameters SwitchYes
  • Interface
  • Built-in Microphone1 built-in microphone
  • Built-in Speaker1 built-in speaker
  • Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
  • On-board StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 512 GB
  • รีเซ็ตYes
  • Event
  • Basic Eventexception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),Motion detection,video tampering alarm
  • Smart Eventaudio exception detection,region entrance detection,region exiting detection,intrusion detection,Line crossing detection
  • LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,white light flashing,audible warning,smart tracking
  • Linkage and Tracking
  • Smart TrackingYes
  • General
  • General Functionmirror,password protection,watermark,IP address filter
  • Power12 VDC, max.12W, PoE+
  • Operating Condition-30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)
  • MaterialPC
  • DimensionØ156 mm × 250.8 mm (Ø6.14" × 9.87")
  • Approx. 1.2 kg (2.65 lb.)
  • Approval
  • ProtectionIP66 (IEC 60529-2013)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

กล้อง
Image Sensor
1/2.8" Progressive Scan CMOS
Min. Illumination
Color: 0.01 Lux @ (F1.7, AGC ON),B/W: 0.005 Lux @ (F1.7, AGC ON),0 Lux with IR
Shutter Speed
1 s to 1/30,000 s
Slow Shutter
Yes
Day & Night
ICR
Zoom
16 × optical,16 × digital
Max. Resolution
2560 × 1440
Lens
Focus
auto,manual,semi-auto
Focal Length
5 to 80 mm
Zoom Speed
Approx. 3.3 s
FOV
Horizontal field of view: 53.3° to 2.6°, vertical field of view: 30.6° to 1.5°, diagonal field of view: 60.5° to 3°
Aperture
Max. F1.7
Illuminator
Supplement Light Type
IR,White Light
Smart Supplement Light
Yes
Supplement Light Range
White light distance: up to 30 m,IR distance: up to 80 m
PTZ
Movement Range (Pan)
0° to 360°
Movement Range (Tilt)
-5° to 90°
Pan Speed
Pan speed: configurable from 1° to 35°/s, preset speed: 35°/s
Tilt Speed
Tilt speed: configurable from 1° to 30°/s, preset speed 30°/s
Proportional Pan
Yes
Presets
300
Patrol Scan
8 patrols, up to 32 presets for each patrol
Power-off Memory
Yes
Park Action
Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
3D Positioning
Yes
PTZ Status Display
Yes
Scheduled Task
Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust
Video
Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Region of Interest (ROI)
1 fixed regions for each stream
Main Stream
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Video Compression
H.265,H.264,MJPEG
Video Bit Rate
32 kbps to 16384 kbps
H.264 Type
main profile,baseline profile,high profile
H.265 Type
main profile
Scalable Video Coding (SVC)
Yes
Audio
Audio Compression
G.711,G.722.1,G.726,MP2L2,PCM,AAC
Audio Bit Rate
MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps; AAC : 16 kbps, 32 kbps, 64 kbps; MP3: 8 kbps, 16 kbps, 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps
Audio Sampling Rate
8 kHz,16 kHz
Environment Noise Filtering
Yes
Network
API
ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Network Storage
NAS (NFS, SMB/ CIFS), ANR
Protocols
SSL/TLS,ISUP,WebSocket,WebSockets,IPv4,IPv6,TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv4/IPv6,UDP
Simultaneous Live View
Up to 6 channels
User/Host
32
Security
802.1X authenticated access,MAC address binding,Authenticated username and password,IP address filter,HTTPS encryption
Client
iVMS-4200,Hik-Connect
Web Browser
Chrome80+，Firefox80+，Safari13+，Edge89
Image Settings
contrast,gain,saturation,sharpness,brightness,white balance,adjustable by client software or web browser
SNR
≥ 52 dB
Defog
Digital defog
Day/Night Switch
day, night, auto, scheduled-switch
Image Enhancement
BLC,HLC,3D DNR
Privacy Mask
24 programmable polygon privacy masks
Regional Focus
Yes
Regional Exposure
Yes
Image Parameters Switch
Yes
Interface
Built-in Microphone
1 built-in microphone
Built-in Speaker
1 built-in speaker
Ethernet Interface
RJ45, self-adaptive 10M/100M Ethernet port
On-board Storage
Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 512 GB
รีเซ็ต
Yes
Event
Basic Event
exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),Motion detection,video tampering alarm
Smart Event
audio exception detection,region entrance detection,region exiting detection,intrusion detection,Line crossing detection
Linkage
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,white light flashing,audible warning,smart tracking
Linkage and Tracking
Smart Tracking
Yes
General
General Function
mirror,password protection,watermark,IP address filter
Power
12 VDC, max.12W, PoE+
Operating Condition
-30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)
Material
PC
Dimension
Ø156 mm × 250.8 mm (Ø6.14" × 9.87")
Approx. 1.2 kg (2.65 lb.)
Approval
Protection
IP66 (IEC 60529-2013)
