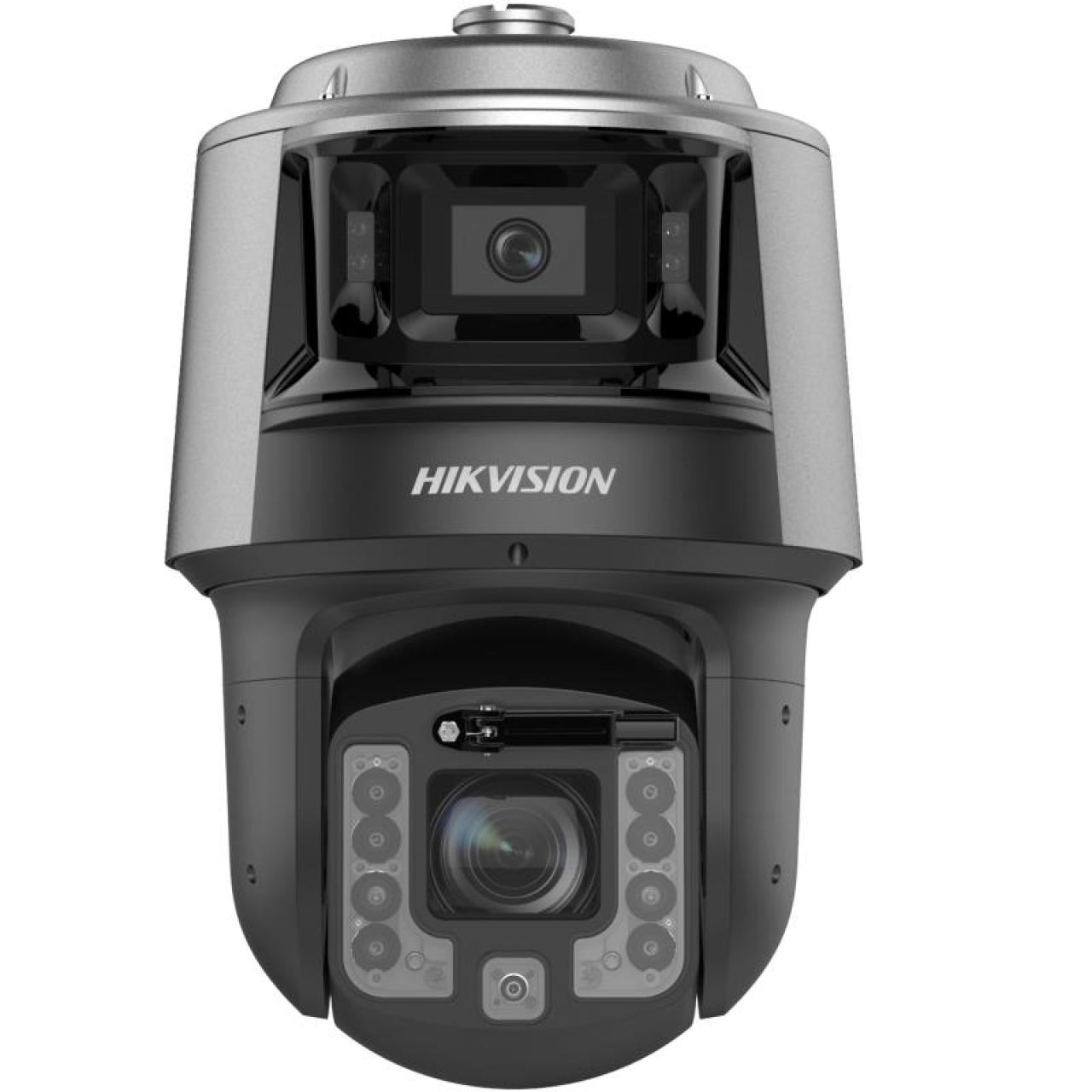

DeepinView TandemVu 7C Series Panoramic 8 MP 25X DarkFighter Network Speed Dome

Name: DeepinView TandemVu 7C Series Panoramic 8 MP 25X DarkFighter Network Speed Dome
Brand: Hikvision
Availability: InStock
Rating: 5.0 (1 reviews)

Captures a large area and great details at the same time
High quality imaging with 4 MP resolution for bullet channel and 8 MP resolution for PTZ channel
24/7 colorful imaging and excellent low-light performance with DarkFighter 2.0 technology
Bullet channel tilt adjustable from 7° to 17°
Secures an expansive area with 25 × optical zoom and 16 × digital zoom
Expansive night view with up to 30 m white light distance and 400 m IR distance
Supports deep learning functions
Water and dust resistant (IP67) and vandal resistant (IK10) excluding glass window
Smart Pan-Tilt Correction
Audio visual alarm: The white flashing light and audible warning can be triggered by certain events

View Less

DS-2SF7C825MXG1-ELWY/26(B)

DS-2SF7C825MXG1-ELW/26(B)

DS-2SF7C825MXG1-ELY/26(B)

DS-2SF7C825MXG1-EL/26(B)

Data Sheet

Available models:

DS-2SF7C825MXG1-ELWY/26(F0)(B)

View more View Less

Available models:

DS-2SF7C825MXG1-ELW/26(F0)(B)

View more View Less

Available models:

DS-2SF7C825MXG1-ELY/26(F0)(B)

View more View Less

Available models:

DS-2SF7C825MXG1-EL/26(F0)(B)

View more View Less

DS-2SF7C825MXG1-EL(W)(Y)/26 AcuSeek

Specification
Resources
Accessories

Data Sheet

กล้อง
Image Sensor [Panoramic channel] 1/1.8" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS
Min. Illumination [Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR, [PTZ channel] Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON)
Shutter Speed 1/25 s to 1/30000 s
Slow Shutter Yes
Day & Night [Bullet channel] Color, [PTZ channel] IR cut filter
Zoom [PTZ channel] 25 × optical, 16 × digital
Max. Resolution [Bullet channel] 3680 × 1656, [PTZ channel] 3840 × 2160

Lens
Focus Auto,semi-auto,manual
Zoom Speed [Bullet channel] No, [PTZ channel] approx. 4.8 s
Focal Length [Bullet channel] 4 mm, [PTZ channel] 5.9 to 147.5 mm
FOV [Bullet channel] horizontal field of view: 89° ± 5°°, vertical field of view: 45° ± 5°°, diagonal field of view: 107° ± 5°°, [PTZ channel] horizontal field of view: 60.2° to 2.3°, vertical field of view: 35.2° to 1.3°, diagonal field of view: 67.4° to 2.6°
Aperture [Bullet channel] F1.0, [PTZ channel] F1.5

Illuminator
Supplement Light Type [Bullet channel] White light and IR, [PTZ channel] IR
Supplement Light Range [Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 400 m
Smart Supplement Light Yes

PTZ
Movement Range (Pan) [PTZ channel] 0° to 360°
Movement Range (Tilt) [Bullet channel] 7° to 17°, [PTZ channel] -20° to 90°
Pan Speed [PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
Tilt Speed [Bullet channel] tilt speed configurable,[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
Proportional Pan [Bullet channel] No, [PTZ channel] Yes
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory Yes
Park Action Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
3D Positioning Yes
PTZ Status Display Yes
Preset Freezing Yes
Scheduled Task Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output

DORI
O2DCPVS [Panoramic channel] Overview: 48.3 m, Outline: 24.1 m, Discern: 12.1 m, Perceive: 7.7 m, Characterize: 3.9 m, Validate: 1.9 m, Scrutinize: 0.6 m [PTZ channel] Wide: Overview: 147.5 m, Outline: 73.8 m, Discern: 36.9 m, Perceive: 23.6 m, Characterize: 11.8 m, Validate: 5.9 m, Scrutinize: 2.0 m Tele: Overview: 3687.5 m, Outline: 1843.8 m, Discern: 921.9 m, Perceive: 590 m, Characterize: 295 m, Validate: 147.5 m, Scrutinize: 49.2 m The OODPCVS values are calculated using pixel densities for different use cases as recommended by the IEC/EN 62676-4: 2025 standard. IEC 62676-4:2025 describes the planning, design, installation, testing, commissioning, and maintaining of video surveillance systems (VSS) comprising image capture device(s), interconnection(s) and image handling device(s), for use in security applications within private or public spaces.

Video
Main Stream [Bullet channel] 50 Hz: 25 fps (3680 × 1656，3632 × 1632) 60 Hz: 30 fps (3680 × 1656，3632 × 1632) [PTZ channel] 50 Hz: 50 fps (3840 × 2160, 2688 × 1520), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 60 fps (3840 × 2160, 2688 × 1520), 120 fps (1920 × 1080, 1280 × 960, 1280 × 720) *High frame rate is supported under monitoring mode only.
Sub-Stream [Bullet channel] 50 Hz: 25 fps (1200 × 536、960x432) 60 Hz: 30 fps (1200 × 536、960x432) [PTZ channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream [Bullet channel] No [PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline profile,Main profile,High profile
H.265 Type Main profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 8 fixed regions for each stream

Audio
Audio Compression G.711,MP2L2,AAC-LC,MP3,G.726,G.722.1,PCM
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3),16 Kbps (G.726),16 Kbps (G.722.1)
Audio Sampling Rate 8 kHz,16 kHz,32 kHz,48 kHz
Environment Noise Filtering Yes

Network
Protocols DHCP,RTP,SMTP,DNS,WebSocket,ICMP,HTTPS,RTSP,QoS,SSL/TLS,RTCP,PPPoE,NTP,IGMP,UDP,FTP,WebSockets,SNMP,HTTP,DDNS,IPv4,UPnP,SFTP,TCP/IP,802.1X,IPv6
API ISAPI,SDK,ISUP,ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M)，OTAP
Security Password protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address),TLS 1.2
Network Storage NAS (NFS, SMB/CIFS),auto network replenishment (ANR)
Simultaneous Live View Up to 20 channels
User/Host Up to 32 users. 3 user levels: administrator, operator, and user
Client iVMS-4200,HikCentral Pro,Hik-Connect
Web Browser Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+； Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

AI Open Platform
Model Specification Model type for AI Open Platform trained algorithm loading: high-performance model (small model).↵ Supports 4 model packages, each capable of detecting 16 target types and classifying 4 targets. The targets can be classified as 64 types. The device runs only 1 model at the same time.
Task Type Algorithm type for AI Open Platform high-performance model (small model): Detection, Classification.
Event Type Region target exception status detection, region target number counting, area overlap ratio counting, area overlap ratio exception detection, line crossing target detection, line crossing target counting, full analysis rule, combined rule
Rule Setting Up to 16 rules. Supports moving target filtering and shield region setting.

Day/Night Switch Day,night,auto,schedule
Image Enhancement 3D DNR,HLC,BLC,EIS
Wide Dynamic Range (WDR) [Bullet channel] 120 dB, [PTZ channel] 140 dB
Defog Digital defog
Image Stabilization EIS (Built-in gyroscope to improve EIS performance)
Regional Exposure Yes
Regional Focus [Bullet channel] No, [PTZ channel] Yes
Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Image Parameters Switch Yes
Privacy Mask [Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
SNR ≥ 52 dB

Supplement Detection
Satellite Positioning No
Gyroscope Yes
Compass No

Interface
รีเซ็ต Yes
Ethernet Interface 1 RJ45 100M self-adaptive Ethernet port
On-board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1TB .
Alarm 7 input(s), 2 output(s)
Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω
RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Event
Basic Event [PTZ channel] video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception
Smart Event unattended baggage detection,object removal detection,people gathering detection,fast moving detection,loitering detection,parking detection,Line crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection
Linkage [Bullet channel] no,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function
Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
Multi-Target-Type Detection Supports simultaneous detection and capture of human body, face and vehicle
Face Capture Detects up to 30 faces simultaneously, Uploads face with background and closed-up face pictures
Face Comparison Up to 10 face libraries. 30000 faces for each library. 150000 faces in total, Recognizes face identity via face modeling, grading and comparing to those in face library
Road Traffic and Vehicle Detection Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc. Support vehicle and non-vehicle counting Blocklist and allowlist: up to 10,000 records LPR Countries/Regions: 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98% Capture rate ≥99% Driving direction accuracy rate ≥98% Vehicle Capture Speed: Front installation in checkpoint scenario: up to 120 km/h Side installation: up to 80 km/h Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode
People Density Supports detecting the level of people density in the configured area
Intelligent Transportation System Traffic Violation Evidence Collection: • PTZ camera channels support detection of six types of violations: wrongly parking, wrong-way driving, crossing the line, lane change, motor vehicle on non-motor vehicle lane, and U-turns. • Box camera channels support detection of five types of violations: wrong-way driving, driving on the lane line, lane change, motor vehicle on non-motor vehicle lane, and U-turns. Traffic Data Collection: Supports the collection of traffic flow, lane average speed, time headway, space headway, lane time occupancy, and lane space occupancy information. Traffic Flow Road incident detection: (1)Road incident detection for highways and elevated roads: The PTZ camera suppoorts fallen object detection, pedestrian detection, congestion detection, roadblock detection, construction detection, traffic accident detection; The box camera supports pedestrian detection, parking detction, congestion detection, roadblock detection, construction detection, traffic accident detection. (2)Road incident detection for urban roads: The PTZ camera suppoorts congestion detection, roadblock detection, construction detection, traffic accident detection; The box camera supports parking detction, congestion detection, roadblock detection, construction detection, traffic accident detection.
Regional People Counting Supports up to 8 detection regions, and independent arming schedule and linkage method Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection Supports parameter settings: alarm times per exception, alarm interval, first alarm delay Supports searching real-time number of people People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B) Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)

Linkage and Tracking
Smart Tracking Manual tracking, auto-tracking 3.0
Smart Linkage Manual tracking, auto tracking, tracking takeover, linked tracking capture
Object Tracking Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.

General
Power 36 VDC± 20%, max. 60 W (Max. 54W, including max. 15 W for IR and max. 8 W for heater) PoE 802.3bt, type4, class8, max. 90W (Max. 60 W, including max. 15 W for IR and max. 8 W for heater)
General Function mirror,password protection
Operating Condition -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing)
Wiper Yes
Demist Yes
Material ADC12
Dimension Ø260 mm × 382.9 mm (Ø10.24" × 15.07")
Approx. 8.1 kg (17.86 lb.)
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval
EMC CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021)
Safety CE-LVD (EN 62368-1:2014 + A11:2017),CB (IEC 62368-1:2014)
Environment CE-RoHS (2011/65/EU and its amendment (EU)2015/863)
Protection IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013),IK10 (IEC 62262:2002, excluding glass window),Lightning Protection,Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line
Anti-Corrosion Protection Model with -Y: NEMA 4X (NEMA 250-2018), Model without -Y: No

กล้อง

Image Sensor

[Panoramic channel] 1/1.8" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS

Min. Illumination

[Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR, [PTZ channel] Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON)

Shutter Speed

1/25 s to 1/30000 s

Slow Shutter

Yes

Day & Night

[Bullet channel] Color, [PTZ channel] IR cut filter

Zoom

[PTZ channel] 25 × optical, 16 × digital

Max. Resolution

[Bullet channel] 3680 × 1656, [PTZ channel] 3840 × 2160

Lens

Focus

Auto,semi-auto,manual

Zoom Speed

[Bullet channel] No, [PTZ channel] approx. 4.8 s

Focal Length

[Bullet channel] 4 mm, [PTZ channel] 5.9 to 147.5 mm

FOV

[Bullet channel] horizontal field of view: 89° ± 5°°, vertical field of view: 45° ± 5°°, diagonal field of view: 107° ± 5°°, [PTZ channel] horizontal field of view: 60.2° to 2.3°, vertical field of view: 35.2° to 1.3°, diagonal field of view: 67.4° to 2.6°

Aperture

[Bullet channel] F1.0, [PTZ channel] F1.5

Illuminator

Supplement Light Type

[Bullet channel] White light and IR, [PTZ channel] IR

Supplement Light Range

[Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 400 m

Smart Supplement Light

Yes

PTZ

Movement Range (Pan)

[PTZ channel] 0° to 360°

Movement Range (Tilt)

[Bullet channel] 7° to 17°, [PTZ channel] -20° to 90°

Pan Speed

[PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s

Tilt Speed

[Bullet channel] tilt speed configurable,[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s

Proportional Pan

[Bullet channel] No, [PTZ channel] Yes

Presets

300

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans, record time over 10 minutes for each scan

Power-off Memory

Yes

Park Action

Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan

3D Positioning

Yes

PTZ Status Display

Yes

Preset Freezing

Yes

Scheduled Task

Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output

DORI

O2DCPVS

[Panoramic channel] Overview: 48.3 m, Outline: 24.1 m, Discern: 12.1 m, Perceive: 7.7 m, Characterize: 3.9 m, Validate: 1.9 m, Scrutinize: 0.6 m [PTZ channel] Wide: Overview: 147.5 m, Outline: 73.8 m, Discern: 36.9 m, Perceive: 23.6 m, Characterize: 11.8 m, Validate: 5.9 m, Scrutinize: 2.0 m Tele: Overview: 3687.5 m, Outline: 1843.8 m, Discern: 921.9 m, Perceive: 590 m, Characterize: 295 m, Validate: 147.5 m, Scrutinize: 49.2 m The OODPCVS values are calculated using pixel densities for different use cases as recommended by the IEC/EN 62676-4: 2025 standard. IEC 62676-4:2025 describes the planning, design, installation, testing, commissioning, and maintaining of video surveillance systems (VSS) comprising image capture device(s), interconnection(s) and image handling device(s), for use in security applications within private or public spaces.

Video

Main Stream

[Bullet channel] 50 Hz: 25 fps (3680 × 1656，3632 × 1632) 60 Hz: 30 fps (3680 × 1656，3632 × 1632) [PTZ channel] 50 Hz: 50 fps (3840 × 2160, 2688 × 1520), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 60 fps (3840 × 2160, 2688 × 1520), 120 fps (1920 × 1080, 1280 × 960, 1280 × 720) *High frame rate is supported under monitoring mode only.

Sub-Stream

[Bullet channel] 50 Hz: 25 fps (1200 × 536、960x432) 60 Hz: 30 fps (1200 × 536、960x432) [PTZ channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

[Bullet channel] No [PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline profile,Main profile,High profile

H.265 Type

Main profile

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

8 fixed regions for each stream

Audio

Audio Compression

G.711,MP2L2,AAC-LC,MP3,G.726,G.722.1,PCM

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3),16 Kbps (G.726),16 Kbps (G.722.1)

Audio Sampling Rate

8 kHz,16 kHz,32 kHz,48 kHz

Environment Noise Filtering

Yes

Network

Protocols

DHCP,RTP,SMTP,DNS,WebSocket,ICMP,HTTPS,RTSP,QoS,SSL/TLS,RTCP,PPPoE,NTP,IGMP,UDP,FTP,WebSockets,SNMP,HTTP,DDNS,IPv4,UPnP,SFTP,TCP/IP,802.1X,IPv6

API

ISAPI,SDK,ISUP,ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M)，OTAP

Security

Password protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address),TLS 1.2

Network Storage

NAS (NFS, SMB/CIFS),auto network replenishment (ANR)

Simultaneous Live View

Up to 20 channels

User/Host

Up to 32 users. 3 user levels: administrator, operator, and user

Client

iVMS-4200,HikCentral Pro,Hik-Connect

Web Browser

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+； Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

AI Open Platform

Model Specification

Model type for AI Open Platform trained algorithm loading: high-performance model (small model).↵ Supports 4 model packages, each capable of detecting 16 target types and classifying 4 targets. The targets can be classified as 64 types. The device runs only 1 model at the same time.

Task Type

Algorithm type for AI Open Platform high-performance model (small model): Detection, Classification.

Event Type

Region target exception status detection, region target number counting, area overlap ratio counting, area overlap ratio exception detection, line crossing target detection, line crossing target counting, full analysis rule, combined rule

Rule Setting

Up to 16 rules. Supports moving target filtering and shield region setting.


Day/Night Switch

Day,night,auto,schedule

Image Enhancement

3D DNR,HLC,BLC,EIS

Wide Dynamic Range (WDR)

[Bullet channel] 120 dB, [PTZ channel] 140 dB

Defog

Digital defog

Image Stabilization

EIS (Built-in gyroscope to improve EIS performance)

Regional Exposure

Yes

Regional Focus

[Bullet channel] No, [PTZ channel] Yes

Image Settings

Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

Image Parameters Switch

Yes

Privacy Mask

[Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable

SNR

≥ 52 dB

Supplement Detection

Satellite Positioning

Gyroscope

Yes

Compass

Interface

รีเซ็ต

Yes

Ethernet Interface

1 RJ45 100M self-adaptive Ethernet port

On-board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1TB .

Alarm

7 input(s), 2 output(s)

Audio

1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω

RS-485

1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Event

Basic Event

[PTZ channel] video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception

Smart Event

unattended baggage detection,object removal detection,people gathering detection,fast moving detection,loitering detection,parking detection,Line crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection

Linkage

[Bullet channel] no,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

Multi-Target-Type Detection

Supports simultaneous detection and capture of human body, face and vehicle

Face Capture

Detects up to 30 faces simultaneously, Uploads face with background and closed-up face pictures

Face Comparison

Up to 10 face libraries. 30000 faces for each library. 150000 faces in total, Recognizes face identity via face modeling, grading and comparing to those in face library

Road Traffic and Vehicle Detection

Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc. Support vehicle and non-vehicle counting Blocklist and allowlist: up to 10,000 records LPR Countries/Regions: 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98% Capture rate ≥99% Driving direction accuracy rate ≥98% Vehicle Capture Speed: Front installation in checkpoint scenario: up to 120 km/h Side installation: up to 80 km/h Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode

People Density

Supports detecting the level of people density in the configured area

Intelligent Transportation System

Traffic Violation Evidence Collection: • PTZ camera channels support detection of six types of violations: wrongly parking, wrong-way driving, crossing the line, lane change, motor vehicle on non-motor vehicle lane, and U-turns. • Box camera channels support detection of five types of violations: wrong-way driving, driving on the lane line, lane change, motor vehicle on non-motor vehicle lane, and U-turns. Traffic Data Collection: Supports the collection of traffic flow, lane average speed, time headway, space headway, lane time occupancy, and lane space occupancy information. Traffic Flow Road incident detection: (1)Road incident detection for highways and elevated roads: The PTZ camera suppoorts fallen object detection, pedestrian detection, congestion detection, roadblock detection, construction detection, traffic accident detection; The box camera supports pedestrian detection, parking detction, congestion detection, roadblock detection, construction detection, traffic accident detection. (2)Road incident detection for urban roads: The PTZ camera suppoorts congestion detection, roadblock detection, construction detection, traffic accident detection; The box camera supports parking detction, congestion detection, roadblock detection, construction detection, traffic accident detection.

Regional People Counting

Supports up to 8 detection regions, and independent arming schedule and linkage method Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection Supports parameter settings: alarm times per exception, alarm interval, first alarm delay Supports searching real-time number of people People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B) Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)

Linkage and Tracking

Smart Tracking

Manual tracking, auto-tracking 3.0

Smart Linkage

Manual tracking, auto tracking, tracking takeover, linked tracking capture

Object Tracking

Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.

General

Power

36 VDC± 20%, max. 60 W (Max. 54W, including max. 15 W for IR and max. 8 W for heater) PoE 802.3bt, type4, class8, max. 90W (Max. 60 W, including max. 15 W for IR and max. 8 W for heater)

General Function

mirror,password protection

Operating Condition

-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing)

Wiper

Yes

Demist

Yes

Material

ADC12

Dimension

Ø260 mm × 382.9 mm (Ø10.24" × 15.07")

Approx. 8.1 kg (17.86 lb.)

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval

EMC

CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021)

Safety

CE-LVD (EN 62368-1:2014 + A11:2017),CB (IEC 62368-1:2014)

Environment

CE-RoHS (2011/65/EU and its amendment (EU)2015/863)

Protection

IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013),IK10 (IEC 62262:2002, excluding glass window),Lightning Protection,Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line

Anti-Corrosion Protection

Model with -Y: NEMA 4X (NEMA 250-2018), Model without -Y: No

Technical documents

Data Sheet

Quick Start Guide

User Manual

Dimensions

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.

Firmware_V5.10.0_260727

IPDG_XLF_H13H11_V5.10.0 Release Note

Applied to:

DS-2SF7C825MXG1-ELWY/26(F0)(B)

กล้อง
Image Sensor [Panoramic channel] 1/1.8" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS
Min. Illumination [Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR, [PTZ channel] Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON)
Shutter Speed 1/25 s to 1/30000 s
Slow Shutter Yes
Day & Night [Bullet channel] Color, [PTZ channel] IR cut filter
Zoom [PTZ channel] 25 × optical, 16 × digital
Max. Resolution [Bullet channel] 3680 × 1656, [PTZ channel] 3840 × 2160

Lens
Focus Auto,semi-auto,manual
Zoom Speed [Bullet channel] No, [PTZ channel] approx. 4.8 s
Focal Length [Bullet channel] 4 mm, [PTZ channel] 5.9 to 147.5 mm
FOV [Bullet channel] horizontal field of view: 89° ± 5°°, vertical field of view: 45° ± 5°°, diagonal field of view: 107° ± 5°°, [PTZ channel] horizontal field of view: 60.2° to 2.3°, vertical field of view: 35.2° to 1.3°, diagonal field of view: 67.4° to 2.6°
Aperture [Bullet channel] F1.0, [PTZ channel] F1.5

Illuminator
Supplement Light Type [Bullet channel] White light and IR, [PTZ channel] IR
Supplement Light Range [Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 400 m
Smart Supplement Light Yes

PTZ
Movement Range (Pan) [PTZ channel] 0° to 360°
Movement Range (Tilt) [Bullet channel] 7° to 17°, [PTZ channel] -20° to 90°
Pan Speed [PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
Tilt Speed [Bullet channel] tilt speed configurable,[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
Proportional Pan [Bullet channel] No, [PTZ channel] Yes
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory Yes
Park Action Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
3D Positioning Yes
PTZ Status Display Yes
Preset Freezing Yes
Scheduled Task Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output

DORI
O2DCPVS [Panoramic channel] Overview: 48.3 m, Outline: 24.1 m, Discern: 12.1 m, Perceive: 7.7 m, Characterize: 3.9 m, Validate: 1.9 m, Scrutinize: 0.6 m [PTZ channel] Wide: Overview: 147.5 m, Outline: 73.8 m, Discern: 36.9 m, Perceive: 23.6 m, Characterize: 11.8 m, Validate: 5.9 m, Scrutinize: 2.0 m Tele: Overview: 3687.5 m, Outline: 1843.8 m, Discern: 921.9 m, Perceive: 590 m, Characterize: 295 m, Validate: 147.5 m, Scrutinize: 49.2 m The OODPCVS values are calculated using pixel densities for different use cases as recommended by the IEC/EN 62676-4: 2025 standard. IEC 62676-4:2025 describes the planning, design, installation, testing, commissioning, and maintaining of video surveillance systems (VSS) comprising image capture device(s), interconnection(s) and image handling device(s), for use in security applications within private or public spaces.

Video
Main Stream [Bullet channel] 50 Hz: 25 fps (3680 × 1656，3632 × 1632) 60 Hz: 30 fps (3680 × 1656，3632 × 1632) [PTZ channel] 50 Hz: 50 fps (3840 × 2160, 2688 × 1520), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 60 fps (3840 × 2160, 2688 × 1520), 120 fps (1920 × 1080, 1280 × 960, 1280 × 720) *High frame rate is supported under monitoring mode only.
Sub-Stream [Bullet channel] 50 Hz: 25 fps (1200 × 536、960x432) 60 Hz: 30 fps (1200 × 536、960x432) [PTZ channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream [Bullet channel] No [PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline profile,Main profile,High profile
H.265 Type Main profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 8 fixed regions for each stream

Audio
Audio Compression G.711,MP2L2,AAC-LC,MP3,G.726,G.722.1,PCM
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3),16 Kbps (G.726),16 Kbps (G.722.1)
Audio Sampling Rate 8 kHz,16 kHz,32 kHz,48 kHz
Environment Noise Filtering Yes

Network
Protocols DHCP,RTP,SMTP,DNS,WebSocket,ICMP,HTTPS,RTSP,QoS,SSL/TLS,RTCP,PPPoE,NTP,IGMP,UDP,FTP,WebSockets,SNMP,HTTP,DDNS,IPv4,UPnP,SFTP,TCP/IP,802.1X,IPv6
API ISAPI,SDK,ISUP,ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M)，OTAP
Security Password protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address),TLS 1.2
Network Storage NAS (NFS, SMB/CIFS),auto network replenishment (ANR)
Simultaneous Live View Up to 20 channels
User/Host Up to 32 users. 3 user levels: administrator, operator, and user
Client iVMS-4200,HikCentral Pro,Hik-Connect
Web Browser Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+； Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

AI Open Platform
Model Specification Model type for AI Open Platform trained algorithm loading: high-performance model (small model).↵ Supports 4 model packages, each capable of detecting 16 target types and classifying 4 targets. The targets can be classified as 64 types. The device runs only 1 model at the same time.
Task Type Algorithm type for AI Open Platform high-performance model (small model): Detection, Classification.
Event Type Region target exception status detection, region target number counting, area overlap ratio counting, area overlap ratio exception detection, line crossing target detection, line crossing target counting, full analysis rule, combined rule
Rule Setting Up to 16 rules. Supports moving target filtering and shield region setting.

Day/Night Switch Day,night,auto,schedule
Image Enhancement 3D DNR,HLC,BLC,EIS
Wide Dynamic Range (WDR) [Bullet channel] 120 dB, [PTZ channel] 140 dB
Defog Digital defog
Image Stabilization EIS (Built-in gyroscope to improve EIS performance)
Regional Exposure Yes
Regional Focus [Bullet channel] No, [PTZ channel] Yes
Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Image Parameters Switch Yes
Privacy Mask [Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
SNR ≥ 52 dB

Supplement Detection
Satellite Positioning No
Gyroscope Yes
Compass No

Interface
รีเซ็ต Yes
Ethernet Interface 1 RJ45 100M self-adaptive Ethernet port
On-board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1TB .
Alarm 7 input(s), 2 output(s)
Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω
RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Event
Basic Event [PTZ channel] video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception
Smart Event unattended baggage detection,object removal detection,people gathering detection,fast moving detection,loitering detection,parking detection,Line crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection
Linkage [Bullet channel] no,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function
Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
Multi-Target-Type Detection Supports simultaneous detection and capture of human body, face and vehicle
Face Capture Detects up to 30 faces simultaneously, Uploads face with background and closed-up face pictures
Face Comparison Up to 10 face libraries. 30000 faces for each library. 150000 faces in total, Recognizes face identity via face modeling, grading and comparing to those in face library
Road Traffic and Vehicle Detection Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc. Support vehicle and non-vehicle counting Blocklist and allowlist: up to 10,000 records LPR Countries/Regions: 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98% Capture rate ≥99% Driving direction accuracy rate ≥98% Vehicle Capture Speed: Front installation in checkpoint scenario: up to 120 km/h Side installation: up to 80 km/h Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode
People Density Supports detecting the level of people density in the configured area
Intelligent Transportation System Traffic Violation Evidence Collection: • PTZ camera channels support detection of six types of violations: wrongly parking, wrong-way driving, crossing the line, lane change, motor vehicle on non-motor vehicle lane, and U-turns. • Box camera channels support detection of five types of violations: wrong-way driving, driving on the lane line, lane change, motor vehicle on non-motor vehicle lane, and U-turns. Traffic Data Collection: Supports the collection of traffic flow, lane average speed, time headway, space headway, lane time occupancy, and lane space occupancy information. Traffic Flow Road incident detection: (1)Road incident detection for highways and elevated roads: The PTZ camera suppoorts fallen object detection, pedestrian detection, congestion detection, roadblock detection, construction detection, traffic accident detection; The box camera supports pedestrian detection, parking detction, congestion detection, roadblock detection, construction detection, traffic accident detection. (2)Road incident detection for urban roads: The PTZ camera suppoorts congestion detection, roadblock detection, construction detection, traffic accident detection; The box camera supports parking detction, congestion detection, roadblock detection, construction detection, traffic accident detection.
Regional People Counting Supports up to 8 detection regions, and independent arming schedule and linkage method Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection Supports parameter settings: alarm times per exception, alarm interval, first alarm delay Supports searching real-time number of people People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B) Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)

Linkage and Tracking
Smart Tracking Manual tracking, auto-tracking 3.0
Smart Linkage Manual tracking, auto tracking, tracking takeover, linked tracking capture
Object Tracking Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.

General
Power 36 VDC± 20%, max. 60 W (Max. 54W, including max. 15 W for IR and max. 8 W for heater) PoE 802.3bt, type4, class8, max. 90W (Max. 60 W, including max. 15 W for IR and max. 8 W for heater)
General Function mirror,password protection
Operating Condition -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing)
Wiper Yes
Demist Yes
Material ADC12
Dimension Ø260 mm × 382.9 mm (Ø10.24" × 15.07")
Approx. 8.1 kg (17.86 lb.)
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval
EMC CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021)
Safety CE-LVD (EN 62368-1:2014 + A11:2017),CB (IEC 62368-1:2014)
Environment CE-RoHS (2011/65/EU and its amendment (EU)2015/863)
Protection IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013),IK10 (IEC 62262:2002, excluding glass window),Lightning Protection,Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line
Anti-Corrosion Protection Model with -Y: NEMA 4X (NEMA 250-2018), Model without -Y: No

กล้อง

Image Sensor

[Panoramic channel] 1/1.8" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS

Min. Illumination

[Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR, [PTZ channel] Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON)

Shutter Speed

1/25 s to 1/30000 s

Slow Shutter

Yes

Day & Night

[Bullet channel] Color, [PTZ channel] IR cut filter

Zoom

[PTZ channel] 25 × optical, 16 × digital

Max. Resolution

[Bullet channel] 3680 × 1656, [PTZ channel] 3840 × 2160

Lens

Focus

Auto,semi-auto,manual

Zoom Speed

[Bullet channel] No, [PTZ channel] approx. 4.8 s

Focal Length

[Bullet channel] 4 mm, [PTZ channel] 5.9 to 147.5 mm

FOV

Aperture

[Bullet channel] F1.0, [PTZ channel] F1.5

Illuminator

Supplement Light Type

[Bullet channel] White light and IR, [PTZ channel] IR

Supplement Light Range

[Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 400 m

Smart Supplement Light

Yes

PTZ

Movement Range (Pan)

[PTZ channel] 0° to 360°

Movement Range (Tilt)

[Bullet channel] 7° to 17°, [PTZ channel] -20° to 90°

Pan Speed

[PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s

Tilt Speed

[Bullet channel] tilt speed configurable,[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s

Proportional Pan

[Bullet channel] No, [PTZ channel] Yes

Presets

300

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans, record time over 10 minutes for each scan

Power-off Memory

Yes

Park Action

Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan

3D Positioning

Yes

PTZ Status Display

Yes

Preset Freezing

Yes

Scheduled Task

Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output

DORI

O2DCPVS

Video

Main Stream

Sub-Stream

Third Stream

Video Compression

Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline profile,Main profile,High profile

H.265 Type

Main profile

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

8 fixed regions for each stream

Audio

Audio Compression

G.711,MP2L2,AAC-LC,MP3,G.726,G.722.1,PCM

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3),16 Kbps (G.726),16 Kbps (G.722.1)

Audio Sampling Rate

8 kHz,16 kHz,32 kHz,48 kHz

Environment Noise Filtering

Yes

Network

Protocols

DHCP,RTP,SMTP,DNS,WebSocket,ICMP,HTTPS,RTSP,QoS,SSL/TLS,RTCP,PPPoE,NTP,IGMP,UDP,FTP,WebSockets,SNMP,HTTP,DDNS,IPv4,UPnP,SFTP,TCP/IP,802.1X,IPv6

API

ISAPI,SDK,ISUP,ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M)，OTAP

Security

Network Storage

NAS (NFS, SMB/CIFS),auto network replenishment (ANR)

Simultaneous Live View

Up to 20 channels

User/Host

Up to 32 users. 3 user levels: administrator, operator, and user

Client

iVMS-4200,HikCentral Pro,Hik-Connect

Web Browser

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+； Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

AI Open Platform

Model Specification

Task Type

Algorithm type for AI Open Platform high-performance model (small model): Detection, Classification.

Event Type

Rule Setting

Up to 16 rules. Supports moving target filtering and shield region setting.


Day/Night Switch

Day,night,auto,schedule

Image Enhancement

3D DNR,HLC,BLC,EIS

Wide Dynamic Range (WDR)

[Bullet channel] 120 dB, [PTZ channel] 140 dB

Defog

Digital defog

Image Stabilization

EIS (Built-in gyroscope to improve EIS performance)

Regional Exposure

Yes

Regional Focus

[Bullet channel] No, [PTZ channel] Yes

Image Settings

Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

Image Parameters Switch

Yes

Privacy Mask

[Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable

SNR

≥ 52 dB

Supplement Detection

Satellite Positioning

Gyroscope

Yes

Compass

Interface

รีเซ็ต

Yes

Ethernet Interface

1 RJ45 100M self-adaptive Ethernet port

On-board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1TB .

Alarm

7 input(s), 2 output(s)

Audio

1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω

RS-485

1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Event

Basic Event

[PTZ channel] video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception

Smart Event

Linkage

Deep Learning Function

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

Multi-Target-Type Detection

Supports simultaneous detection and capture of human body, face and vehicle

Face Capture

Detects up to 30 faces simultaneously, Uploads face with background and closed-up face pictures

Face Comparison

Up to 10 face libraries. 30000 faces for each library. 150000 faces in total, Recognizes face identity via face modeling, grading and comparing to those in face library

Road Traffic and Vehicle Detection

People Density

Supports detecting the level of people density in the configured area

Intelligent Transportation System

Regional People Counting

Linkage and Tracking

Smart Tracking

Manual tracking, auto-tracking 3.0

Smart Linkage

Manual tracking, auto tracking, tracking takeover, linked tracking capture

Object Tracking

General

Power

36 VDC± 20%, max. 60 W (Max. 54W, including max. 15 W for IR and max. 8 W for heater) PoE 802.3bt, type4, class8, max. 90W (Max. 60 W, including max. 15 W for IR and max. 8 W for heater)

General Function

mirror,password protection

Operating Condition

-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing)

Wiper

Yes

Demist

Yes

Material

ADC12

Dimension

Ø260 mm × 382.9 mm (Ø10.24" × 15.07")

Approx. 8.1 kg (17.86 lb.)

Language

Approval

EMC

CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021)

Safety

CE-LVD (EN 62368-1:2014 + A11:2017),CB (IEC 62368-1:2014)

Environment

CE-RoHS (2011/65/EU and its amendment (EU)2015/863)

Protection

IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013),IK10 (IEC 62262:2002, excluding glass window),Lightning Protection,Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line

Anti-Corrosion Protection

Model with -Y: NEMA 4X (NEMA 250-2018), Model without -Y: No

Technical documents

Data Sheet

Quick Start Guide

User Manual

Dimensions

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.

Firmware_V5.10.0_260727

IPDG_XLF_H13H11_V5.10.0 Release Note

Applied to:

DS-2SF7C825MXG1-ELW/26(F0)(B)

กล้อง
Image Sensor [Panoramic channel] 1/1.8" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS
Min. Illumination [Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR, [PTZ channel] Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON)
Shutter Speed 1/25 s to 1/30000 s
Slow Shutter Yes
Day & Night [Bullet channel] Color, [PTZ channel] IR cut filter
Zoom [PTZ channel] 25 × optical, 16 × digital
Max. Resolution [Bullet channel] 3680 × 1656, [PTZ channel] 3840 × 2160

Lens
Focus Auto,semi-auto,manual
Zoom Speed [Bullet channel] No, [PTZ channel] approx. 4.8 s
Focal Length [Bullet channel] 4 mm, [PTZ channel] 5.9 to 147.5 mm
FOV [Bullet channel] horizontal field of view: 89° ± 5°°, vertical field of view: 45° ± 5°°, diagonal field of view: 107° ± 5°°, [PTZ channel] horizontal field of view: 60.2° to 2.3°, vertical field of view: 35.2° to 1.3°, diagonal field of view: 67.4° to 2.6°
Aperture [Bullet channel] F1.0, [PTZ channel] F1.5

Illuminator
Supplement Light Type [Bullet channel] White light and IR, [PTZ channel] IR
Supplement Light Range [Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 400 m
Smart Supplement Light Yes

PTZ
Movement Range (Pan) [PTZ channel] 0° to 360°
Movement Range (Tilt) [Bullet channel] 7° to 17°, [PTZ channel] -20° to 90°
Pan Speed [PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
Tilt Speed [Bullet channel] tilt speed configurable,[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
Proportional Pan [Bullet channel] No, [PTZ channel] Yes
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory Yes
Park Action Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
3D Positioning Yes
PTZ Status Display Yes
Preset Freezing Yes
Scheduled Task Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output

DORI
O2DCPVS [Panoramic channel] Overview: 48.3 m, Outline: 24.1 m, Discern: 12.1 m, Perceive: 7.7 m, Characterize: 3.9 m, Validate: 1.9 m, Scrutinize: 0.6 m [PTZ channel] Wide: Overview: 147.5 m, Outline: 73.8 m, Discern: 36.9 m, Perceive: 23.6 m, Characterize: 11.8 m, Validate: 5.9 m, Scrutinize: 2.0 m Tele: Overview: 3687.5 m, Outline: 1843.8 m, Discern: 921.9 m, Perceive: 590 m, Characterize: 295 m, Validate: 147.5 m, Scrutinize: 49.2 m The OODPCVS values are calculated using pixel densities for different use cases as recommended by the IEC/EN 62676-4: 2025 standard. IEC 62676-4:2025 describes the planning, design, installation, testing, commissioning, and maintaining of video surveillance systems (VSS) comprising image capture device(s), interconnection(s) and image handling device(s), for use in security applications within private or public spaces.

Video
Main Stream [Bullet channel] 50 Hz: 25 fps (3680 × 1656，3632 × 1632) 60 Hz: 30 fps (3680 × 1656，3632 × 1632) [PTZ channel] 50 Hz: 50 fps (3840 × 2160, 2688 × 1520), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 60 fps (3840 × 2160, 2688 × 1520), 120 fps (1920 × 1080, 1280 × 960, 1280 × 720) *High frame rate is supported under monitoring mode only.
Sub-Stream [Bullet channel] 50 Hz: 25 fps (1200 × 536、960x432) 60 Hz: 30 fps (1200 × 536、960x432) [PTZ channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream [Bullet channel] No [PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline profile,Main profile,High profile
H.265 Type Main profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 8 fixed regions for each stream

Audio
Audio Compression G.711,MP2L2,AAC-LC,MP3,G.726,G.722.1,PCM
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3),16 Kbps (G.726),16 Kbps (G.722.1)
Audio Sampling Rate 8 kHz,16 kHz,32 kHz,48 kHz
Environment Noise Filtering Yes

Network
Protocols DHCP,RTP,SMTP,DNS,WebSocket,ICMP,HTTPS,RTSP,QoS,SSL/TLS,RTCP,PPPoE,NTP,IGMP,UDP,FTP,WebSockets,SNMP,HTTP,DDNS,IPv4,UPnP,SFTP,TCP/IP,802.1X,IPv6
API ISAPI,SDK,ISUP,ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M)，OTAP
Security Password protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address),TLS 1.2
Network Storage NAS (NFS, SMB/CIFS),auto network replenishment (ANR)
Simultaneous Live View Up to 20 channels
User/Host Up to 32 users. 3 user levels: administrator, operator, and user
Client iVMS-4200,HikCentral Pro,Hik-Connect
Web Browser Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+； Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

AI Open Platform
Model Specification Model type for AI Open Platform trained algorithm loading: high-performance model (small model).↵ Supports 4 model packages, each capable of detecting 16 target types and classifying 4 targets. The targets can be classified as 64 types. The device runs only 1 model at the same time.
Task Type Algorithm type for AI Open Platform high-performance model (small model): Detection, Classification.
Event Type Region target exception status detection, region target number counting, area overlap ratio counting, area overlap ratio exception detection, line crossing target detection, line crossing target counting, full analysis rule, combined rule
Rule Setting Up to 16 rules. Supports moving target filtering and shield region setting.

Day/Night Switch Day,night,auto,schedule
Image Enhancement 3D DNR,HLC,BLC,EIS
Wide Dynamic Range (WDR) [Bullet channel] 120 dB, [PTZ channel] 140 dB
Defog Digital defog
Image Stabilization EIS (Built-in gyroscope to improve EIS performance)
Regional Exposure Yes
Regional Focus [Bullet channel] No, [PTZ channel] Yes
Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Image Parameters Switch Yes
Privacy Mask [Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
SNR ≥ 52 dB

Supplement Detection
Satellite Positioning No
Gyroscope Yes
Compass No

Interface
รีเซ็ต Yes
Ethernet Interface 1 RJ45 100M self-adaptive Ethernet port
On-board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1TB .
Alarm 7 input(s), 2 output(s)
Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω
RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Event
Basic Event [PTZ channel] video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception
Smart Event unattended baggage detection,object removal detection,people gathering detection,fast moving detection,loitering detection,parking detection,Line crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection
Linkage [Bullet channel] no,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function
Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
Multi-Target-Type Detection Supports simultaneous detection and capture of human body, face and vehicle
Face Capture Detects up to 30 faces simultaneously, Uploads face with background and closed-up face pictures
Face Comparison Up to 10 face libraries. 30000 faces for each library. 150000 faces in total, Recognizes face identity via face modeling, grading and comparing to those in face library
Road Traffic and Vehicle Detection Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc. Support vehicle and non-vehicle counting Blocklist and allowlist: up to 10,000 records LPR Countries/Regions: 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98% Capture rate ≥99% Driving direction accuracy rate ≥98% Vehicle Capture Speed: Front installation in checkpoint scenario: up to 120 km/h Side installation: up to 80 km/h Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode
People Density Supports detecting the level of people density in the configured area
Intelligent Transportation System Traffic Violation Evidence Collection: • PTZ camera channels support detection of six types of violations: wrongly parking, wrong-way driving, crossing the line, lane change, motor vehicle on non-motor vehicle lane, and U-turns. • Box camera channels support detection of five types of violations: wrong-way driving, driving on the lane line, lane change, motor vehicle on non-motor vehicle lane, and U-turns. Traffic Data Collection: Supports the collection of traffic flow, lane average speed, time headway, space headway, lane time occupancy, and lane space occupancy information. Traffic Flow Road incident detection: (1)Road incident detection for highways and elevated roads: The PTZ camera suppoorts fallen object detection, pedestrian detection, congestion detection, roadblock detection, construction detection, traffic accident detection; The box camera supports pedestrian detection, parking detction, congestion detection, roadblock detection, construction detection, traffic accident detection. (2)Road incident detection for urban roads: The PTZ camera suppoorts congestion detection, roadblock detection, construction detection, traffic accident detection; The box camera supports parking detction, congestion detection, roadblock detection, construction detection, traffic accident detection.
Regional People Counting Supports up to 8 detection regions, and independent arming schedule and linkage method Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection Supports parameter settings: alarm times per exception, alarm interval, first alarm delay Supports searching real-time number of people People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B) Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)

Linkage and Tracking
Smart Tracking Manual tracking, auto-tracking 3.0
Smart Linkage Manual tracking, auto tracking, tracking takeover, linked tracking capture
Object Tracking Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.

General
Power 36 VDC± 20%, max. 60 W (Max. 54W, including max. 15 W for IR and max. 8 W for heater) PoE 802.3bt, type4, class8, max. 90W (Max. 60 W, including max. 15 W for IR and max. 8 W for heater)
General Function mirror,password protection
Operating Condition -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing)
Wiper Yes
Demist Yes
Material ADC12
Dimension Ø260 mm × 382.9 mm (Ø10.24" × 15.07")
Approx. 8.1 kg (17.86 lb.)
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval
EMC CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021)
Safety CE-LVD (EN 62368-1:2014 + A11:2017),CB (IEC 62368-1:2014)
Environment CE-RoHS (2011/65/EU and its amendment (EU)2015/863)
Protection IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013),IK10 (IEC 62262:2002, excluding glass window),Lightning Protection,Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line
Anti-Corrosion Protection Model with -Y: NEMA 4X (NEMA 250-2018), Model without -Y: No

กล้อง

Image Sensor

[Panoramic channel] 1/1.8" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS

Min. Illumination

[Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR, [PTZ channel] Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON)

Shutter Speed

1/25 s to 1/30000 s

Slow Shutter

Yes

Day & Night

[Bullet channel] Color, [PTZ channel] IR cut filter

Zoom

[PTZ channel] 25 × optical, 16 × digital

Max. Resolution

[Bullet channel] 3680 × 1656, [PTZ channel] 3840 × 2160

Lens

Focus

Auto,semi-auto,manual

Zoom Speed

[Bullet channel] No, [PTZ channel] approx. 4.8 s

Focal Length

[Bullet channel] 4 mm, [PTZ channel] 5.9 to 147.5 mm

FOV

Aperture

[Bullet channel] F1.0, [PTZ channel] F1.5

Illuminator

Supplement Light Type

[Bullet channel] White light and IR, [PTZ channel] IR

Supplement Light Range

[Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 400 m

Smart Supplement Light

Yes

PTZ

Movement Range (Pan)

[PTZ channel] 0° to 360°

Movement Range (Tilt)

[Bullet channel] 7° to 17°, [PTZ channel] -20° to 90°

Pan Speed

[PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s

Tilt Speed

[Bullet channel] tilt speed configurable,[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s

Proportional Pan

[Bullet channel] No, [PTZ channel] Yes

Presets

300

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans, record time over 10 minutes for each scan

Power-off Memory

Yes

Park Action

Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan

3D Positioning

Yes

PTZ Status Display

Yes

Preset Freezing

Yes

Scheduled Task

Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output

DORI

O2DCPVS

Video

Main Stream

Sub-Stream

Third Stream

Video Compression

Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline profile,Main profile,High profile

H.265 Type

Main profile

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

8 fixed regions for each stream

Audio

Audio Compression

G.711,MP2L2,AAC-LC,MP3,G.726,G.722.1,PCM

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3),16 Kbps (G.726),16 Kbps (G.722.1)

Audio Sampling Rate

8 kHz,16 kHz,32 kHz,48 kHz

Environment Noise Filtering

Yes

Network

Protocols

DHCP,RTP,SMTP,DNS,WebSocket,ICMP,HTTPS,RTSP,QoS,SSL/TLS,RTCP,PPPoE,NTP,IGMP,UDP,FTP,WebSockets,SNMP,HTTP,DDNS,IPv4,UPnP,SFTP,TCP/IP,802.1X,IPv6

API

ISAPI,SDK,ISUP,ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M)，OTAP

Security

Network Storage

NAS (NFS, SMB/CIFS),auto network replenishment (ANR)

Simultaneous Live View

Up to 20 channels

User/Host

Up to 32 users. 3 user levels: administrator, operator, and user

Client

iVMS-4200,HikCentral Pro,Hik-Connect

Web Browser

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+； Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

AI Open Platform

Model Specification

Task Type

Algorithm type for AI Open Platform high-performance model (small model): Detection, Classification.

Event Type

Rule Setting

Up to 16 rules. Supports moving target filtering and shield region setting.


Day/Night Switch

Day,night,auto,schedule

Image Enhancement

3D DNR,HLC,BLC,EIS

Wide Dynamic Range (WDR)

[Bullet channel] 120 dB, [PTZ channel] 140 dB

Defog

Digital defog

Image Stabilization

EIS (Built-in gyroscope to improve EIS performance)

Regional Exposure

Yes

Regional Focus

[Bullet channel] No, [PTZ channel] Yes

Image Settings

Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

Image Parameters Switch

Yes

Privacy Mask

[Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable

SNR

≥ 52 dB

Supplement Detection

Satellite Positioning

Gyroscope

Yes

Compass

Interface

รีเซ็ต

Yes

Ethernet Interface

1 RJ45 100M self-adaptive Ethernet port

On-board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1TB .

Alarm

7 input(s), 2 output(s)

Audio

1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω

RS-485

1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Event

Basic Event

[PTZ channel] video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception

Smart Event

Linkage

Deep Learning Function

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

Multi-Target-Type Detection

Supports simultaneous detection and capture of human body, face and vehicle

Face Capture

Detects up to 30 faces simultaneously, Uploads face with background and closed-up face pictures

Face Comparison

Up to 10 face libraries. 30000 faces for each library. 150000 faces in total, Recognizes face identity via face modeling, grading and comparing to those in face library

Road Traffic and Vehicle Detection

People Density

Supports detecting the level of people density in the configured area

Intelligent Transportation System

Regional People Counting

Linkage and Tracking

Smart Tracking

Manual tracking, auto-tracking 3.0

Smart Linkage

Manual tracking, auto tracking, tracking takeover, linked tracking capture

Object Tracking

General

Power

36 VDC± 20%, max. 60 W (Max. 54W, including max. 15 W for IR and max. 8 W for heater) PoE 802.3bt, type4, class8, max. 90W (Max. 60 W, including max. 15 W for IR and max. 8 W for heater)

General Function

mirror,password protection

Operating Condition

-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing)

Wiper

Yes

Demist

Yes

Material

ADC12

Dimension

Ø260 mm × 382.9 mm (Ø10.24" × 15.07")

Approx. 8.1 kg (17.86 lb.)

Language

Approval

EMC

CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021)

Safety

CE-LVD (EN 62368-1:2014 + A11:2017),CB (IEC 62368-1:2014)

Environment

CE-RoHS (2011/65/EU and its amendment (EU)2015/863)

Protection

IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013),IK10 (IEC 62262:2002, excluding glass window),Lightning Protection,Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line

Anti-Corrosion Protection

Model with -Y: NEMA 4X (NEMA 250-2018), Model without -Y: No

Technical documents

Data Sheet

Quick Start Guide

User Manual

Dimensions

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.

Firmware_V5.10.0_260727

IPDG_XLF_H13H11_V5.10.0 Release Note

Applied to:

DS-2SF7C825MXG1-ELY/26(F0)(B)

กล้อง
Image Sensor [Panoramic channel] 1/1.8" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS
Min. Illumination [Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR, [PTZ channel] Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON)
Shutter Speed 1/25 s to 1/30000 s
Slow Shutter Yes
Day & Night [Bullet channel] Color, [PTZ channel] IR cut filter
Zoom [PTZ channel] 25 × optical, 16 × digital
Max. Resolution [Bullet channel] 3680 × 1656, [PTZ channel] 3840 × 2160

Lens
Focus Auto,semi-auto,manual
Zoom Speed [Bullet channel] No, [PTZ channel] approx. 4.8 s
Focal Length [Bullet channel] 4 mm, [PTZ channel] 5.9 to 147.5 mm
FOV [Bullet channel] horizontal field of view: 89° ± 5°°, vertical field of view: 45° ± 5°°, diagonal field of view: 107° ± 5°°, [PTZ channel] horizontal field of view: 60.2° to 2.3°, vertical field of view: 35.2° to 1.3°, diagonal field of view: 67.4° to 2.6°
Aperture [Bullet channel] F1.0, [PTZ channel] F1.5

Illuminator
Supplement Light Type [Bullet channel] White light and IR, [PTZ channel] IR
Supplement Light Range [Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 400 m
Smart Supplement Light Yes

PTZ
Movement Range (Pan) [PTZ channel] 0° to 360°
Movement Range (Tilt) [Bullet channel] 7° to 17°, [PTZ channel] -20° to 90°
Pan Speed [PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
Tilt Speed [Bullet channel] tilt speed configurable,[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
Proportional Pan [Bullet channel] No, [PTZ channel] Yes
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory Yes
Park Action Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
3D Positioning Yes
PTZ Status Display Yes
Preset Freezing Yes
Scheduled Task Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output

DORI
O2DCPVS [Panoramic channel] Overview: 48.3 m, Outline: 24.1 m, Discern: 12.1 m, Perceive: 7.7 m, Characterize: 3.9 m, Validate: 1.9 m, Scrutinize: 0.6 m [PTZ channel] Wide: Overview: 147.5 m, Outline: 73.8 m, Discern: 36.9 m, Perceive: 23.6 m, Characterize: 11.8 m, Validate: 5.9 m, Scrutinize: 2.0 m Tele: Overview: 3687.5 m, Outline: 1843.8 m, Discern: 921.9 m, Perceive: 590 m, Characterize: 295 m, Validate: 147.5 m, Scrutinize: 49.2 m The OODPCVS values are calculated using pixel densities for different use cases as recommended by the IEC/EN 62676-4: 2025 standard. IEC 62676-4:2025 describes the planning, design, installation, testing, commissioning, and maintaining of video surveillance systems (VSS) comprising image capture device(s), interconnection(s) and image handling device(s), for use in security applications within private or public spaces.

Video
Main Stream [Bullet channel] 50 Hz: 25 fps (3680 × 1656，3632 × 1632) 60 Hz: 30 fps (3680 × 1656，3632 × 1632) [PTZ channel] 50 Hz: 50 fps (3840 × 2160, 2688 × 1520), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 60 fps (3840 × 2160, 2688 × 1520), 120 fps (1920 × 1080, 1280 × 960, 1280 × 720) *High frame rate is supported under monitoring mode only.
Sub-Stream [Bullet channel] 50 Hz: 25 fps (1200 × 536、960x432) 60 Hz: 30 fps (1200 × 536、960x432) [PTZ channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream [Bullet channel] No [PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline profile,Main profile,High profile
H.265 Type Main profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 8 fixed regions for each stream

Audio
Audio Compression G.711,MP2L2,AAC-LC,MP3,G.726,G.722.1,PCM
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3),16 Kbps (G.726),16 Kbps (G.722.1)
Audio Sampling Rate 8 kHz,16 kHz,32 kHz,48 kHz
Environment Noise Filtering Yes

Network
Protocols DHCP,RTP,SMTP,DNS,WebSocket,ICMP,HTTPS,RTSP,QoS,SSL/TLS,RTCP,PPPoE,NTP,IGMP,UDP,FTP,WebSockets,SNMP,HTTP,DDNS,IPv4,UPnP,SFTP,TCP/IP,802.1X,IPv6
API ISAPI,SDK,ISUP,ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M)，OTAP
Security Password protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address),TLS 1.2
Network Storage NAS (NFS, SMB/CIFS),auto network replenishment (ANR)
Simultaneous Live View Up to 20 channels
User/Host Up to 32 users. 3 user levels: administrator, operator, and user
Client iVMS-4200,HikCentral Pro,Hik-Connect
Web Browser Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+； Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

AI Open Platform
Model Specification Model type for AI Open Platform trained algorithm loading: high-performance model (small model).↵ Supports 4 model packages, each capable of detecting 16 target types and classifying 4 targets. The targets can be classified as 64 types. The device runs only 1 model at the same time.
Task Type Algorithm type for AI Open Platform high-performance model (small model): Detection, Classification.
Event Type Region target exception status detection, region target number counting, area overlap ratio counting, area overlap ratio exception detection, line crossing target detection, line crossing target counting, full analysis rule, combined rule
Rule Setting Up to 16 rules. Supports moving target filtering and shield region setting.

Day/Night Switch Day,night,auto,schedule
Image Enhancement 3D DNR,HLC,BLC,EIS
Wide Dynamic Range (WDR) [Bullet channel] 120 dB, [PTZ channel] 140 dB
Defog Digital defog
Image Stabilization EIS (Built-in gyroscope to improve EIS performance)
Regional Exposure Yes
Regional Focus [Bullet channel] No, [PTZ channel] Yes
Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Image Parameters Switch Yes
Privacy Mask [Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
SNR ≥ 52 dB

Supplement Detection
Satellite Positioning No
Gyroscope Yes
Compass No

Interface
รีเซ็ต Yes
Ethernet Interface 1 RJ45 100M self-adaptive Ethernet port
On-board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1TB .
Alarm 7 input(s), 2 output(s)
Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω
RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Event
Basic Event [PTZ channel] video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception
Smart Event unattended baggage detection,object removal detection,people gathering detection,fast moving detection,loitering detection,parking detection,Line crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection
Linkage [Bullet channel] no,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function
Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
Multi-Target-Type Detection Supports simultaneous detection and capture of human body, face and vehicle
Face Capture Detects up to 30 faces simultaneously, Uploads face with background and closed-up face pictures
Face Comparison Up to 10 face libraries. 30000 faces for each library. 150000 faces in total, Recognizes face identity via face modeling, grading and comparing to those in face library
Road Traffic and Vehicle Detection Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc. Support vehicle and non-vehicle counting Blocklist and allowlist: up to 10,000 records LPR Countries/Regions: 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98% Capture rate ≥99% Driving direction accuracy rate ≥98% Vehicle Capture Speed: Front installation in checkpoint scenario: up to 120 km/h Side installation: up to 80 km/h Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode
People Density Supports detecting the level of people density in the configured area
Intelligent Transportation System Traffic Violation Evidence Collection: • PTZ camera channels support detection of six types of violations: wrongly parking, wrong-way driving, crossing the line, lane change, motor vehicle on non-motor vehicle lane, and U-turns. • Box camera channels support detection of five types of violations: wrong-way driving, driving on the lane line, lane change, motor vehicle on non-motor vehicle lane, and U-turns. Traffic Data Collection: Supports the collection of traffic flow, lane average speed, time headway, space headway, lane time occupancy, and lane space occupancy information. Traffic Flow Road incident detection: (1)Road incident detection for highways and elevated roads: The PTZ camera suppoorts fallen object detection, pedestrian detection, congestion detection, roadblock detection, construction detection, traffic accident detection; The box camera supports pedestrian detection, parking detction, congestion detection, roadblock detection, construction detection, traffic accident detection. (2)Road incident detection for urban roads: The PTZ camera suppoorts congestion detection, roadblock detection, construction detection, traffic accident detection; The box camera supports parking detction, congestion detection, roadblock detection, construction detection, traffic accident detection.
Regional People Counting Supports up to 8 detection regions, and independent arming schedule and linkage method Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection Supports parameter settings: alarm times per exception, alarm interval, first alarm delay Supports searching real-time number of people People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B) Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)

Linkage and Tracking
Smart Tracking Manual tracking, auto-tracking 3.0
Smart Linkage Manual tracking, auto tracking, tracking takeover, linked tracking capture
Object Tracking Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.

General
Power 36 VDC± 20%, max. 60 W (Max. 54W, including max. 15 W for IR and max. 8 W for heater) PoE 802.3bt, type4, class8, max. 90W (Max. 60 W, including max. 15 W for IR and max. 8 W for heater)
General Function mirror,password protection
Operating Condition -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing)
Wiper Yes
Demist Yes
Material ADC12
Dimension Ø260 mm × 382.9 mm (Ø10.24" × 15.07")
Approx. 8.1 kg (17.86 lb.)
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval
EMC CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021)
Safety CE-LVD (EN 62368-1:2014 + A11:2017),CB (IEC 62368-1:2014)
Environment CE-RoHS (2011/65/EU and its amendment (EU)2015/863)
Protection IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013),IK10 (IEC 62262:2002, excluding glass window),Lightning Protection,Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line
Anti-Corrosion Protection Model with -Y: NEMA 4X (NEMA 250-2018), Model without -Y: No

กล้อง

Image Sensor

[Panoramic channel] 1/1.8" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS

Min. Illumination

[Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR, [PTZ channel] Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON)

Shutter Speed

1/25 s to 1/30000 s

Slow Shutter

Yes

Day & Night

[Bullet channel] Color, [PTZ channel] IR cut filter

Zoom

[PTZ channel] 25 × optical, 16 × digital

Max. Resolution

[Bullet channel] 3680 × 1656, [PTZ channel] 3840 × 2160

Lens

Focus

Auto,semi-auto,manual

Zoom Speed

[Bullet channel] No, [PTZ channel] approx. 4.8 s

Focal Length

[Bullet channel] 4 mm, [PTZ channel] 5.9 to 147.5 mm

FOV

Aperture

[Bullet channel] F1.0, [PTZ channel] F1.5

Illuminator

Supplement Light Type

[Bullet channel] White light and IR, [PTZ channel] IR

Supplement Light Range

[Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 400 m

Smart Supplement Light

Yes

PTZ

Movement Range (Pan)

[PTZ channel] 0° to 360°

Movement Range (Tilt)

[Bullet channel] 7° to 17°, [PTZ channel] -20° to 90°

Pan Speed

[PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s

Tilt Speed

[Bullet channel] tilt speed configurable,[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s

Proportional Pan

[Bullet channel] No, [PTZ channel] Yes

Presets

300

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans, record time over 10 minutes for each scan

Power-off Memory

Yes

Park Action

Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan

3D Positioning

Yes

PTZ Status Display

Yes

Preset Freezing

Yes

Scheduled Task

Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output

DORI

O2DCPVS

Video

Main Stream

Sub-Stream

Third Stream

Video Compression

Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline profile,Main profile,High profile

H.265 Type

Main profile

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

8 fixed regions for each stream

Audio

Audio Compression

G.711,MP2L2,AAC-LC,MP3,G.726,G.722.1,PCM

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3),16 Kbps (G.726),16 Kbps (G.722.1)

Audio Sampling Rate

8 kHz,16 kHz,32 kHz,48 kHz

Environment Noise Filtering

Yes

Network

Protocols

DHCP,RTP,SMTP,DNS,WebSocket,ICMP,HTTPS,RTSP,QoS,SSL/TLS,RTCP,PPPoE,NTP,IGMP,UDP,FTP,WebSockets,SNMP,HTTP,DDNS,IPv4,UPnP,SFTP,TCP/IP,802.1X,IPv6

API

ISAPI,SDK,ISUP,ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M)，OTAP

Security

Network Storage

NAS (NFS, SMB/CIFS),auto network replenishment (ANR)

Simultaneous Live View

Up to 20 channels

User/Host

Up to 32 users. 3 user levels: administrator, operator, and user

Client

iVMS-4200,HikCentral Pro,Hik-Connect

Web Browser

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+； Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

AI Open Platform

Model Specification

Task Type

Algorithm type for AI Open Platform high-performance model (small model): Detection, Classification.

Event Type

Rule Setting

Up to 16 rules. Supports moving target filtering and shield region setting.


Day/Night Switch

Day,night,auto,schedule

Image Enhancement

3D DNR,HLC,BLC,EIS

Wide Dynamic Range (WDR)

[Bullet channel] 120 dB, [PTZ channel] 140 dB

Defog

Digital defog

Image Stabilization

EIS (Built-in gyroscope to improve EIS performance)

Regional Exposure

Yes

Regional Focus

[Bullet channel] No, [PTZ channel] Yes

Image Settings

Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

Image Parameters Switch

Yes

Privacy Mask

[Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable

SNR

≥ 52 dB

Supplement Detection

Satellite Positioning

Gyroscope

Yes

Compass

Interface

รีเซ็ต

Yes

Ethernet Interface

1 RJ45 100M self-adaptive Ethernet port

On-board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1TB .

Alarm

7 input(s), 2 output(s)

Audio

1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω

RS-485

1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Event

Basic Event

[PTZ channel] video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception

Smart Event

Linkage

Deep Learning Function

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

Multi-Target-Type Detection

Supports simultaneous detection and capture of human body, face and vehicle

Face Capture

Detects up to 30 faces simultaneously, Uploads face with background and closed-up face pictures

Face Comparison

Up to 10 face libraries. 30000 faces for each library. 150000 faces in total, Recognizes face identity via face modeling, grading and comparing to those in face library

Road Traffic and Vehicle Detection

People Density

Supports detecting the level of people density in the configured area

Intelligent Transportation System

Regional People Counting

Linkage and Tracking

Smart Tracking

Manual tracking, auto-tracking 3.0

Smart Linkage

Manual tracking, auto tracking, tracking takeover, linked tracking capture

Object Tracking

General

Power

36 VDC± 20%, max. 60 W (Max. 54W, including max. 15 W for IR and max. 8 W for heater) PoE 802.3bt, type4, class8, max. 90W (Max. 60 W, including max. 15 W for IR and max. 8 W for heater)

General Function

mirror,password protection

Operating Condition

-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing)

Wiper

Yes

Demist

Yes

Material

ADC12

Dimension

Ø260 mm × 382.9 mm (Ø10.24" × 15.07")

Approx. 8.1 kg (17.86 lb.)

Language

Approval

EMC

CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021)

Safety

CE-LVD (EN 62368-1:2014 + A11:2017),CB (IEC 62368-1:2014)

Environment

CE-RoHS (2011/65/EU and its amendment (EU)2015/863)

Protection

IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013),IK10 (IEC 62262:2002, excluding glass window),Lightning Protection,Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line

Anti-Corrosion Protection

Model with -Y: NEMA 4X (NEMA 250-2018), Model without -Y: No

Technical documents

Data Sheet

Quick Start Guide

User Manual

Dimensions

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.

Firmware_V5.10.0_260727

IPDG_XLF_H13H11_V5.10.0 Release Note

Applied to:

DS-2SF7C825MXG1-EL/26(F0)(B)

ติดต่อเรา

Hik-Partner Pro

Security Business Assistant. At Your Fingertips. Learn more

Scan and download the app

Download

Hik-Partner Pro

Get a better browsing experience

You are using a web browser we don’t support. Please try one of the following options to have a better experience of our web content.

DS-2SF7C825MXG1-EL(W)(Y)/26

DeepinView TandemVu 7C Series Panoramic 8 MP 25X DarkFighter Network Speed Dome

Specification

กล้อง

Lens

Illuminator

PTZ

DORI

Video

Audio

Network

AI Open Platform


Supplement Detection

Interface

Event

Deep Learning Function

Linkage and Tracking

General

Approval

Specification

Resources

Technical documents

Firmware

Firmware

Specification

กล้อง

Lens

Illuminator

PTZ

DORI

Video

Audio

Network

AI Open Platform


Supplement Detection

Interface

Event

Deep Learning Function

Linkage and Tracking

General

Approval

Specification

Resources

Technical documents

Firmware

Firmware

Specification

กล้อง

Lens

Illuminator

PTZ

DORI

Video

Audio

Network

AI Open Platform


Supplement Detection

Interface

Event

Deep Learning Function

Linkage and Tracking

General

Approval

Specification

Resources

Technical documents

Firmware

Firmware

Specification

กล้อง

Lens

Illuminator

PTZ

DORI

Video

Audio

Network
