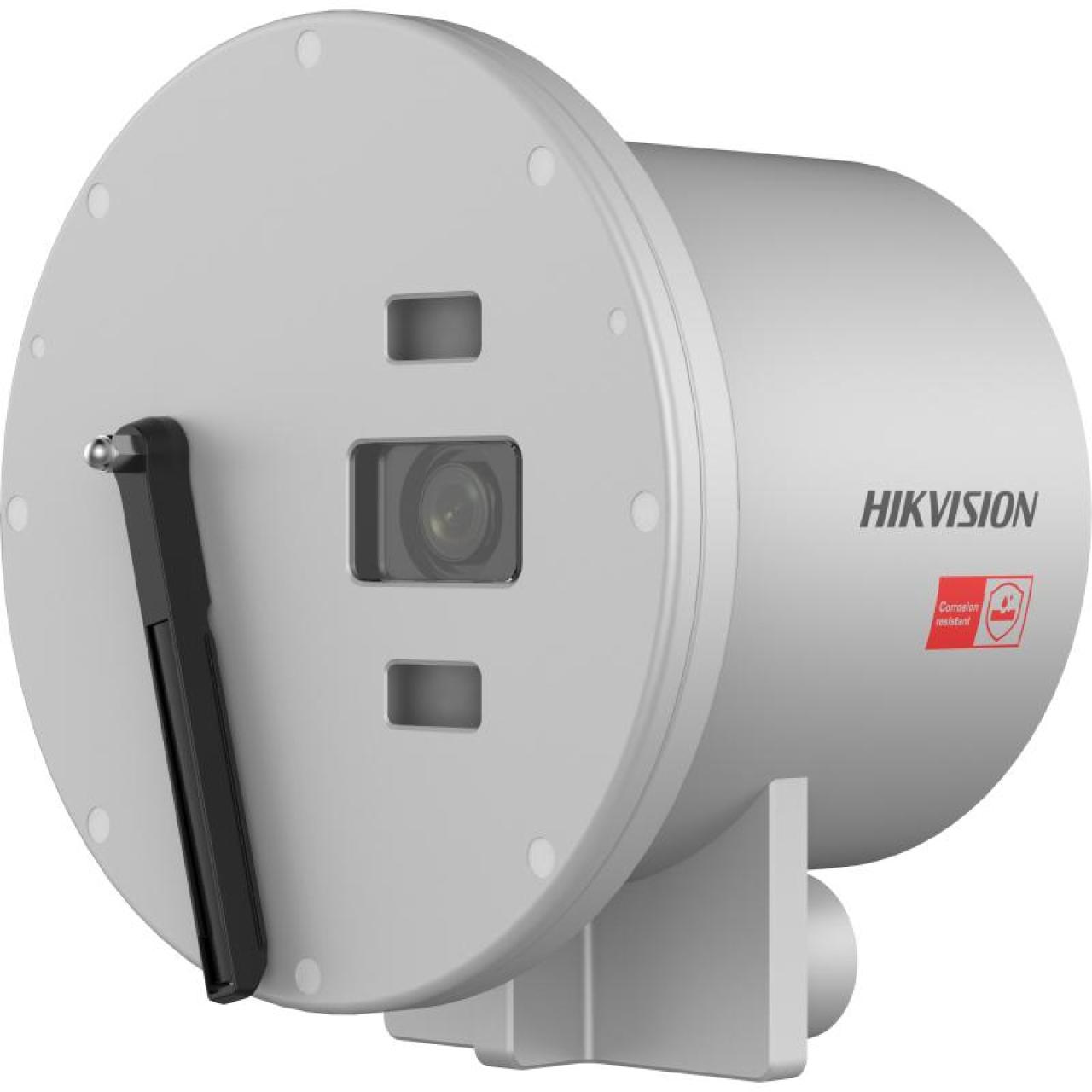

316L 8MP 15m Underwater Vari-focal Bullet

Name: 316L 8MP 15m Underwater Vari-focal Bullet
Brand: Hikvision
Availability: InStock
Rating: 5.0 (1 reviews)

316L stainless steel enclosure, protecting cameras to be used in corrosive environments, providing reliability and longevity compared to standard cameras
IP68: the camera can be used under water up to 15 meters
H.265+/H.265/H.264+/H.264 encoding: efficient compression technology saves storage space and reduces bandwidth requirements
DarkFighter technology enables the capture of high quality color images in even the dimmest lighting environments
True WDR technology provides clear imaging even with strong back lighting
Wiper Function Supported

View Less

Data Sheet

Available models:

DS-2XC6284G2-LIZRS(2.8-12mm)

View more View Less

DS-2XC6284G2-LIZRS ^NEW

Specification
Resources
Accessories

Data Sheet

กล้อง
Image Sensor1/1.8" Progressive Scan CMOS
Max. Resolution3840 × 2160
Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON),0 Lux with light,B/W: 0.0002 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
Shutter Time1 s to 1/100,000 s
Day & NightIR cut filter

Lens
Lens TypeVarifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV2.8 to 12 mm, horizontal FOV 72.7° to 30.7°, vertical FOV 40.0° to 17.3°, diagonal FOV 84.4° to 35.1°
FocusAuto,Semi-auto,Manual
ApertureF1.4

Illuminator
Supplement Light TypeIR,White Light
Supplement Light RangeIR: Turbidity (NTU) : 0 to 5, up to 1 m, Turbidity (NTU) : 5 to 15, up to 0.5 m, Turbidity (NTU) : ＞15, up to 0.2 m Light: Turbidity (NTU) : 0 to 5, up to 1 m, Turbidity (NTU) : 5 to 15, up to 0.5 m, Turbidity (NTU) : ＞15, up to 0.2 m
IR Wavelength850 nm

AI Open Platform
Model SpecificationSupports 4 model packages. The device runs only 1 model at the same time.
Task TypeAlgorithm type for AI Open Platform high-performance model (small model): Detection, Classification.
Event TypeRegion target exception status detection, region target number counting, area overlap ratio counting, area overlap ratio exception detection, line crossing target detection, line crossing target counting, full analysis rule, combined rule

Video
Main Stream50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression Main stream: H.264/H.264+/H.265/H.265+, Sub-stream: MJPEG/H.264/H.265, Third stream: MJPEG/H.264/H.265
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)5 fixed regions for main stream and sub-stream
Target CroppingYes

Network
ProtocolsSNMP,DDNS,IGMP,RTP,DHCP,FTP,WebSockets,DNS,TCP/IP,IPv6,SMTP,RTSP,ICMP,SSL/TLS,SFTP,IPv4,HTTPS,HTTP,WebSocket,NTP,PPPoE,UDP,UPnP,QoS,Bonjour,802.1X,RTCP
APIOpen Network Video Interface (Profile Main Profile),ISAPI,SDK,ISUP
Simultaneous Live ViewUp to 20 channels
User/HostUp to 32 users 3 user levels: administrator, operator, and user
Network StorageNAS (NFS, SMB/CIFS),CVR,NVR,Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClientiVMS-4200,Hik-Connect,Hik-Central
Web BrowserPlug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters SwitchYes
Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night SwitchDay,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR)120 dB
DefogYes
Image EnhancementBLC,HLC,3D DNR
Privacy Mask8 programmable polygon privacy masks
SNR≥ 50 dB

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB, *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.
Alarm 1 input, 1 output (max. 24 VDC, 1 A)
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Event
Basic Event Motion detection,video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection,Unattended baggage detection, object removal detection,Scene change detection
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture

General
Power36 VDC ± 20%, 0.54 A, max. 19 W,2-core terminal block, PoE: IEEE 802.3at, Class 4, max. 22 W
Material316L and anti-corrosion coating
Dimension224.0 mm × 208.0 mm × 230.1 mm (8.82" × 8.19" × 9.06")
Package Dimension700 mm × 530 mm × 365 mm (27.56" × 20.87" × 14.37")
Approx. 9380 g (20.67 lb.)
With Package WeightApprox. 12.1 kg (26.68 lb.)
Startup and Operating Conditions-10 °C to 60 °C (14 °F to 140 °F). Humidity 100% or less (non-condensing)
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
WiperYes
Cable Length15 m (49.2 ft.)

Approval
SafetyCB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
ProtectionIP68 (IEC 60529-2013) (within 15 m underwater)

กล้อง

Image Sensor

1/1.8" Progressive Scan CMOS

Max. Resolution

3840 × 2160

Min. Illumination

Color: 0.002 Lux @ (F1.2, AGC ON),0 Lux with light,B/W: 0.0002 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR

Shutter Time

1 s to 1/100,000 s

Day & Night

IR cut filter

Lens

Lens Type

Varifocal lens, motorized lens, 2.8 to 12 mm

Focal Length & FOV

2.8 to 12 mm, horizontal FOV 72.7° to 30.7°, vertical FOV 40.0° to 17.3°, diagonal FOV 84.4° to 35.1°

Focus

Auto,Semi-auto,Manual

Aperture

F1.4

Illuminator

Supplement Light Type

IR,White Light

Supplement Light Range

IR: Turbidity (NTU) : 0 to 5, up to 1 m, Turbidity (NTU) : 5 to 15, up to 0.5 m, Turbidity (NTU) : ＞15, up to 0.2 m Light: Turbidity (NTU) : 0 to 5, up to 1 m, Turbidity (NTU) : 5 to 15, up to 0.5 m, Turbidity (NTU) : ＞15, up to 0.2 m

IR Wavelength

850 nm

AI Open Platform

Model Specification

Supports 4 model packages. The device runs only 1 model at the same time.

Task Type

Algorithm type for AI Open Platform high-performance model (small model): Detection, Classification.

Event Type

Region target exception status detection, region target number counting, area overlap ratio counting, area overlap ratio exception detection, line crossing target detection, line crossing target counting, full analysis rule, combined rule

Video

Main Stream

50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression

Main stream: H.264/H.264+/H.265/H.265+, Sub-stream: MJPEG/H.264/H.265, Third stream: MJPEG/H.264/H.265

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

5 fixed regions for main stream and sub-stream

Target Cropping

Yes

Network

Protocols

SNMP,DDNS,IGMP,RTP,DHCP,FTP,WebSockets,DNS,TCP/IP,IPv6,SMTP,RTSP,ICMP,SSL/TLS,SFTP,IPv4,HTTPS,HTTP,WebSocket,NTP,PPPoE,UDP,UPnP,QoS,Bonjour,802.1X,RTCP

API

Open Network Video Interface (Profile Main Profile),ISAPI,SDK,ISUP

Simultaneous Live View

Up to 20 channels

User/Host

Up to 32 users 3 user levels: administrator, operator, and user

Network Storage

NAS (NFS, SMB/CIFS),CVR,NVR,Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client

iVMS-4200,Hik-Connect,Hik-Central

Web Browser

Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


Image Parameters Switch

Yes

Image Settings

Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Day/Night Switch

Day,Night,Auto,Schedule,Alarm Trigger

Wide Dynamic Range (WDR)

120 dB

Defog

Yes

Image Enhancement

BLC,HLC,3D DNR

Privacy Mask

8 programmable polygon privacy masks

SNR

≥ 50 dB

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB, *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.

Alarm

1 input, 1 output (max. 24 VDC, 1 A)

RS-485

1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Event

Basic Event

Motion detection,video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exiting detection,Unattended baggage detection, object removal detection,Scene change detection

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture

General

Power

36 VDC ± 20%, 0.54 A, max. 19 W,2-core terminal block, PoE: IEEE 802.3at, Class 4, max. 22 W

Material

316L and anti-corrosion coating

Dimension

224.0 mm × 208.0 mm × 230.1 mm (8.82" × 8.19" × 9.06")

Package Dimension

700 mm × 530 mm × 365 mm (27.56" × 20.87" × 14.37")

Approx. 9380 g (20.67 lb.)

With Package Weight

Approx. 12.1 kg (26.68 lb.)

Startup and Operating Conditions

-10 °C to 60 °C (14 °F to 140 °F). Humidity 100% or less (non-condensing)

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Wiper

Yes

Cable Length

15 m (49.2 ft.)

Approval

Safety

CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017

Protection

IP68 (IEC 60529-2013) (within 15 m underwater)
