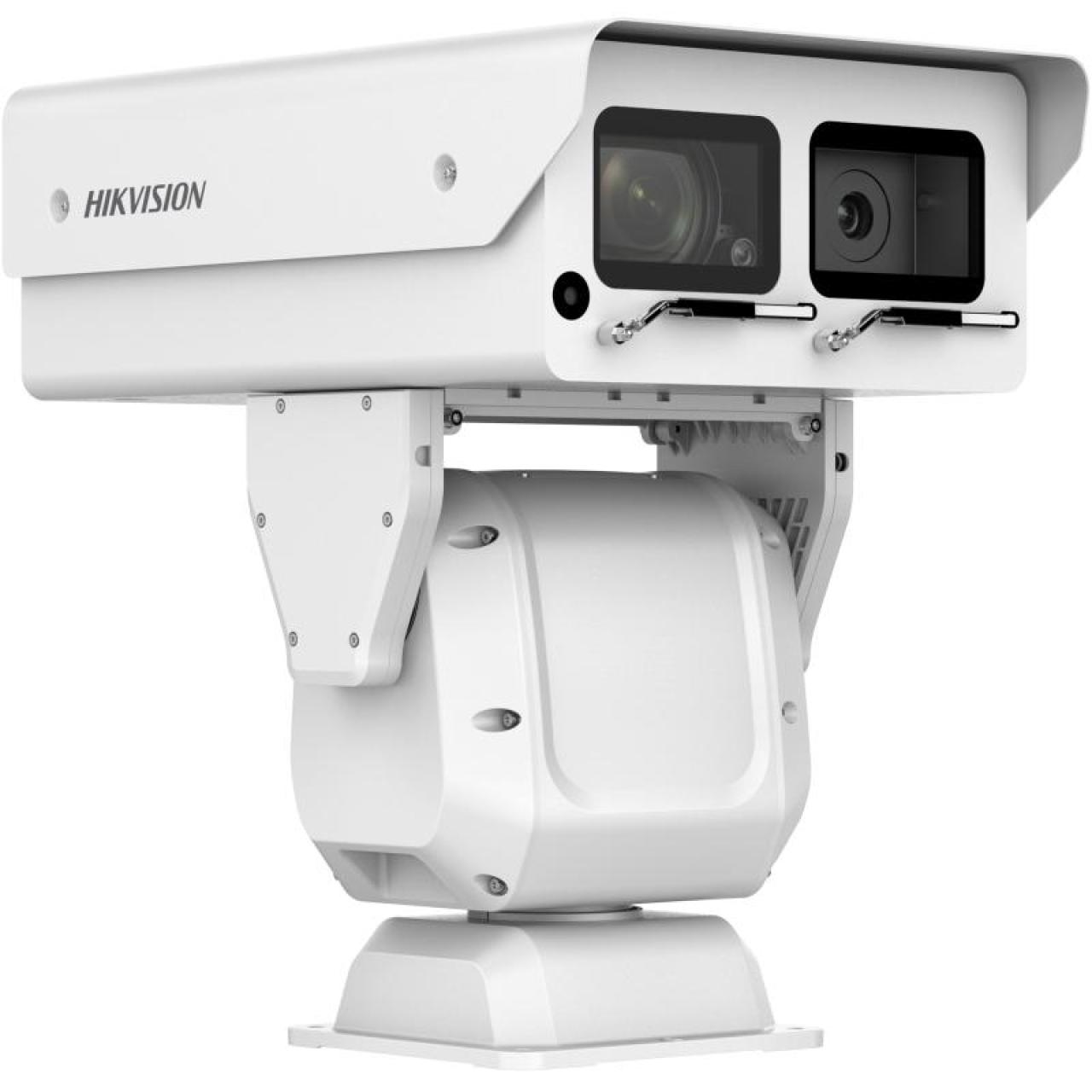

4MP 80X DarkFighter Laser Network Positioning System

Name: 4MP 80X DarkFighter Laser Network Positioning System
Brand: Hikvision
Availability: InStock
Rating: 5.0 (1 reviews)

Dual-lens positioning system captures a large area and great details at the same time
High quality imaging with an F1.0 24/7 colorful lens in panoramic channel, and 1/1.8" 800 mm lens in PTZ channel
Supports up to 3 km laser, optical defog, and OIS to enhance the video quality
Supports Picture-in-Picture mode. Video in two channels can be output in one stream in order to reduce the bandwidth and save the storage space
Support magnetic correction function. With closed-loop high-precision motor control technology, the PTZ moves back to the original position when the image offsets
Supports optical image stabilization (OIS) and the anti-jitter compensation angle reaches the 30% of the FOV to reduce the image shaking
Supports Smart Event, Face Capture, Multi-Target-Type Detection, Multi-Target-Type Comparison, and AI Open Platform

View Less

Data Sheet

Modèles disponibles:

DS-2DYH480LXG-LW/14(F1)

View more View Less

DS-2DYH480LXG-LW/14

Specification
Ressources
Accessoires

Data Sheet

Camera
Image Sensor[Panoramic channel] 1/1.8＂ progressive scan CMOS [PTZ channel] 1/1.8＂ progressive scan CMOS
Min. Illumination[Panoramic channel] Color: 0.005 Lux @（F1.0，AGC ON） [PTZ channel] 0.005 Lux @ (F3.0, AGC ON); B/W: 0.0005 Lux @(F3.0, AGC ON); 0 Lux with IR
Shutter Speed1/1 s to 1/30,000 s
Slow Shutteryes
Day & Night[Panoramic channel] No [PTZ channel] ICR
Zoom[Panoramic channel] No [PTZ channel] 80 × optical, 16 × digital
Max. Resolution[Panoramic channel] 2560 × 1440 [PTZ channel] 2560 × 1440

Lens
FocusAuto, semi-auto, manual
Focal Length[Panoramic channel] 4 mm [PTZ channel] 10 to 800 mm
FOV[Panoramic channel] Horizontal FOV 44.7°, vertical FOV 88.7°, diagonal FOV 107.4° [PTZ channel] Horizontal FOV 29.8° to 0.6°, vertical FOV 16.9° to 0.3°, diagonal FOV 32.3° to 0.7°
Aperture[Panoramic channel] F1.0 [PTZ channel] F3.0

Illuminator
Supplement Light TypeIR,Laser
Supplement Light RangeLaser distance: up to 3000 m

PTZ
Movement Range (Pan)360°
Movement Range (Tilt)+45°～ -70°
Pan Speedconfigurable from 0.1° to 30°/s
Tilt Speedconfigurable from 0.1° to 15°/s
Proportional Panyes
Presets300
Patrol Scan8 patrols
Pattern Scan4 pattern scans
Power-off Memoryyes
Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D Positioningyes
PTZ Status Displayyes
Preset Freezingyes
Scheduled Taskpreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, auxiliary output

Video
Main Stream[Panoramic channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz：30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) [PTZ channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz：30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream[Panoramic channel] 50Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) [PTZ channel] 50Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream[Panoramic channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) [PTZ channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Scalable Video Coding (SVC)yes
Region of Interest (ROI)yes

Audio
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Network
ClientiVMS-4200
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets
APIONVIF, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host32
SecurityAuthenticated username and password,MAC address binding,HTTPS encryption,802.1X authenticated access,IP address filter
Web BrowserIE11，Chrome 57.0+，Firefox 52.0+，Safari 12+

Day/Night Switch[Panoramic channel] No [PTZ channel] Day, Night, Auto, Schedule
Image Stabilization[Panoramic channel]: EIS,[PTZ channel]: OIS/EIS (Built-in gyroscope to improve EIS performance)
Image EnhancementBLC, HLC, 3D DNR
Wide Dynamic Range (WDR)120 dB WDR
Defog[Panoramic channel] no [PTZ channel] optical defog
Regional Exposureyes
Regional Focus[Panoramic channel] no [PTZ channel] yes
Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser.
Image Parameters Switchyes
Privacy Maskup to 24 masks,mosaic mask ,mask color configurable
SNR≥52 dB

Supplement Detection
Satellite PositioningGPS,Beidou
CompassYes

Interface
Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
On-board StorageBuilt-in memory card slot, supports MicroSD/MicroSDHC/MicroSDXC card, up to 512 GB
Alarm7 alarm inputs, 2 alarm outputs
Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive

Event
Smart TrackingManual tracking,auto-tracking
Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), alarm input and output, vandal-proof alarm
Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection
Alarm LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture

Deep Learning Function
Multi-Target-Type DetectionSupports simultaneous detection and capture of human body, face and vehicle
Face Comparison Recognizes face identity via face modeling, grading and comparing to those in face library
Face Capture Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture

General
Power48 VDC ± 25%, max. 250 W
Vandal-proof AlarmYes
General Functionmirror,password protection,watermark,IP address filter
Operating Condition-40℃~70℃ (-40 °F to 158 °F); Humidity 95% or less (non-condensing)
Wiperyes
Dimension584.5 mm × 406 mm × 615 mm (23.01" × 15.98" × 24.12")
Approx. 50 kg (110.25 lb.)

Approval
ProtectionIP66 (IEC 60529-2013)

Camera

Image Sensor

[Panoramic channel] 1/1.8＂ progressive scan CMOS [PTZ channel] 1/1.8＂ progressive scan CMOS

Min. Illumination

[Panoramic channel] Color: 0.005 Lux @（F1.0，AGC ON） [PTZ channel] 0.005 Lux @ (F3.0, AGC ON); B/W: 0.0005 Lux @(F3.0, AGC ON); 0 Lux with IR

Shutter Speed

1/1 s to 1/30,000 s

Slow Shutter

yes

Day & Night

[Panoramic channel] No [PTZ channel] ICR

Zoom

[Panoramic channel] No [PTZ channel] 80 × optical, 16 × digital

Max. Resolution

[Panoramic channel] 2560 × 1440 [PTZ channel] 2560 × 1440

Lens

Focus

Auto, semi-auto, manual

Focal Length

[Panoramic channel] 4 mm [PTZ channel] 10 to 800 mm

FOV

[Panoramic channel] Horizontal FOV 44.7°, vertical FOV 88.7°, diagonal FOV 107.4° [PTZ channel] Horizontal FOV 29.8° to 0.6°, vertical FOV 16.9° to 0.3°, diagonal FOV 32.3° to 0.7°

Aperture

[Panoramic channel] F1.0 [PTZ channel] F3.0

Illuminator

Supplement Light Type

IR,Laser

Supplement Light Range

Laser distance: up to 3000 m

PTZ

Movement Range (Pan)

360°

Movement Range (Tilt)

+45°～ -70°

Pan Speed

configurable from 0.1° to 30°/s

Tilt Speed

configurable from 0.1° to 15°/s

Proportional Pan

yes

Presets

300

Patrol Scan

8 patrols

Pattern Scan

4 pattern scans

Power-off Memory

yes

Park Action

Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan

3D Positioning

yes

PTZ Status Display

yes

Preset Freezing

yes

Scheduled Task

preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, auxiliary output

Video

Main Stream

[Panoramic channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz：30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) [PTZ channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz：30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

[Panoramic channel] 50Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) [PTZ channel] 50Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

[Panoramic channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) [PTZ channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Scalable Video Coding (SVC)

yes

Region of Interest (ROI)

yes

Audio

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Network

Client

iVMS-4200

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets

API

ONVIF, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

User/Host

Security

Authenticated username and password,MAC address binding,HTTPS encryption,802.1X authenticated access,IP address filter

Web Browser

IE11，Chrome 57.0+，Firefox 52.0+，Safari 12+


Day/Night Switch

[Panoramic channel] No [PTZ channel] Day, Night, Auto, Schedule

Image Stabilization

[Panoramic channel]: EIS,[PTZ channel]: OIS/EIS (Built-in gyroscope to improve EIS performance)

Image Enhancement

BLC, HLC, 3D DNR

Wide Dynamic Range (WDR)

120 dB WDR

Defog

[Panoramic channel] no [PTZ channel] optical defog

Regional Exposure

yes

Regional Focus

[Panoramic channel] no [PTZ channel] yes

Image Settings

Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser.

Image Parameters Switch

yes

Privacy Mask

up to 24 masks,mosaic mask ,mask color configurable

SNR

≥52 dB

Supplement Detection

Satellite Positioning

GPS,Beidou

Compass

Yes

Interface

Ethernet Interface

1 RJ45 10M/100M self-adaptive Ethernet port

On-board Storage

Built-in memory card slot, supports MicroSD/MicroSDHC/MicroSDXC card, up to 512 GB

Alarm

7 alarm inputs, 2 alarm outputs

Audio

1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω

RS-485

Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive

Event

Smart Tracking

Manual tracking,auto-tracking

Basic Event

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), alarm input and output, vandal-proof alarm

Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exiting detection

Alarm Linkage

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture

Deep Learning Function

Multi-Target-Type Detection

Supports simultaneous detection and capture of human body, face and vehicle

Face Comparison

Recognizes face identity via face modeling, grading and comparing to those in face library

Face Capture

Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture

General

Power

48 VDC ± 25%, max. 250 W

Vandal-proof Alarm

Yes

General Function

mirror,password protection,watermark,IP address filter

Operating Condition

-40℃~70℃ (-40 °F to 158 °F); Humidity 95% or less (non-condensing)

Wiper

yes

Dimension

584.5 mm × 406 mm × 615 mm (23.01" × 15.98" × 24.12")

Approx. 50 kg (110.25 lb.)

Approval

Protection

IP66 (IEC 60529-2013)

Camera

Camera
Camera
Camera
Camera
Camera
Camera
Camera

Lens

Lens
Lens
Lens
Lens

Illuminator

Illuminator
Illuminator

PTZ

Video

Video
Video
Video
Video
Video
Video
Video
Video

Audio

Audio

Network

Network
Network
Network
Network
Network
Network



Supplement Detection

Supplement Detection
Supplement Detection

Interface

Interface
Interface
Interface
Interface
Interface

Event

Event
Event
Event
Event

Deep Learning Function

Deep Learning Function
Deep Learning Function
Deep Learning Function

General

General
General
General
General
General
General
General

Approval

Approval

Documents techniques

Language: English

Data Sheet EN

Quick Start Guide EN

User Manual EN

Dimensions EN
