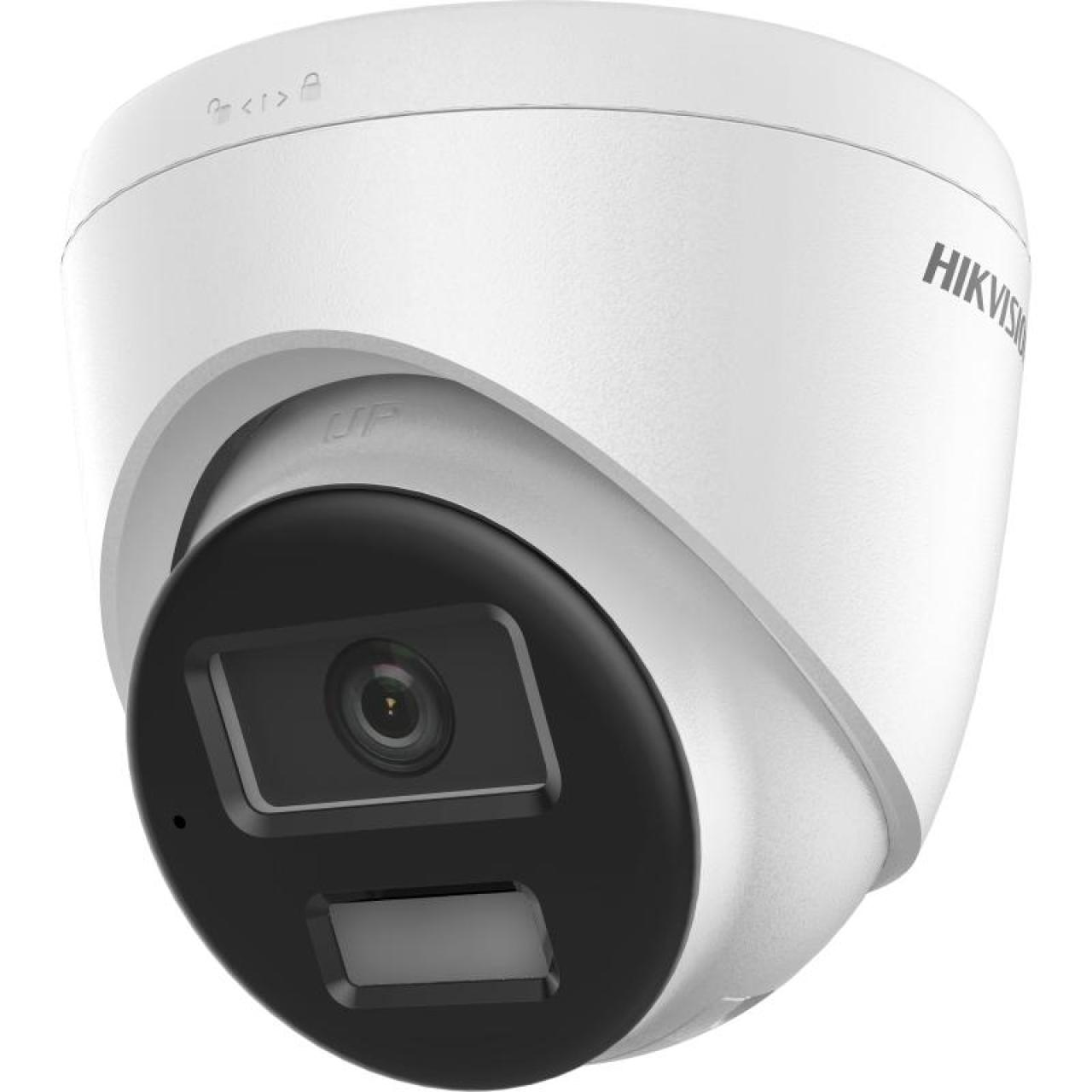

4MP Smart Hybrid Light Motion 3.0 Fixed Turret Network Camera

Name: 4MP Smart Hybrid Light Motion 3.0 Fixed Turret Network Camera
Brand: Hikvision
Availability: InStock
Rating: 5.0 (1 reviews)

HikAI-ISP for well noise reduction, color correction and image quality improvement
Motion Detection 3.0 detects persons and vehicles more accurately, reducing false alarms
Smart Hybrid Light: integrates IR and white lights, 3 supplemental lighting modes
Built-in microphone for real-time audio security
-F: Support on-board storage up to 512 GB (memory card slot)
Dust and water resistant (IP67)

View Less

Data Sheet

Modèles disponibles:

DS-2CD3341G3-LIUF(2.8mm)

DS-2CD3341G3-LIUF(4mm)

View more View Less

DS-2CD3341G3-LIU(F) AcuSeek

^NEW

Specification
Ressources
Accessoires

Data Sheet

Camera
Image Sensor1/3" Progressive Scan CMOS
Max. Resolution2688 × 1520
Min. IlluminationColor: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time1 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 115° 4 mm, horizontal FOV 79°, vertical FOV 42°, diagonal FOV 93°
Lens MountM12
FocusNA
Iris TypeFixed
ApertureF1.6
Depth of Field2.8 mm: 1.4 m to ∞ 4 mm: 1.5 m to ∞

Pixel Density
DORI2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m

Illuminator
Supplement Light TypeIR,White Light
Supplement Light RangeUp to 30 m
Smart Supplement LightYes
IR Wavelength850 nm

Video
Main Stream50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream50 Hz: 1 fps (1280 × 720，640 × 480, 640 × 360) 60 Hz: 1 fps (1280 × 720，640 × 480, 640 × 360
Video Compression Main stream: H.264+/H.264/H.265/H.265+, Sub-stream: MJPEG/H.264/H.265, Third stream: H.264/H.265
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR
Scalable Video Coding (SVC)YES
Region of Interest (ROI)1 fixed regions for each stream
Target CroppingNO

Audio
Audio TypeMono sound
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate8 kHz/16 kHz
Environment Noise FilteringYes

Network
ProtocolsDHCP,QoS,FTP,SSL/TLS,ICMP,RTSP,UDP,HTTPS,HTTP,DNS,IPv6,IPv4,IGMP,RTCP,RTP,DDNS,TCP/IP,UPnP,NTP,SMTP
Simultaneous Live ViewUp to 6 channels
APIONVIF (Profile S, Profile T),ISAPI,SDK,ISUP,EZVIZ
User/HostUp to 32 users 3 user levels: administrator, operator, and user
SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Network StorageNO
ClientiVMS-4200,Hik-Connect
Web BrowserPlug-in required live view: Chrome 91+, Firefox 88+, Edge 91+

Image Parameters SwitchYes
Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,AGC,adjustable by client software or web browser
Day/Night SwitchDay,Night,Auto,Schedule
Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Image EnhancementBLC,HLC,3D DNR
Privacy Mask4 programmable polygon privacy masks

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in MicrophoneYes,1 built-in microphone
Built-in SpeakerNA
AudioNA
Alarm NA
Reset Key-F: Yes

Event
Basic Event Video tampering alarm, motion detection (support alarm triggering by specified target types (human, vehicle)), exception
Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human, vehicle and animal))
LinkageUpload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture

Deep Learning Function
Perimeter Protection NO
Face CaptureNO

General
Power12 VDC ± 25%, 0.54 A, max. 6.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W
MaterialCover: PLASTIC, main body: Metal
DimensionØ110 mm × 93 mm (Ø4.33" × 3.66")
Package Dimension134 mm × 134 mm × 108 mm (5.28" × 5.28" × 4.25")
Approx. 375 g (0.83 lb.)
With Package WeightApprox. 515 g (1.13 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
LanguageEnglish, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German
General FunctionHeartbeat,mirror,password reset via email,password protection,anti-banding
Flashing LightNA

Approval
EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
SafetyCB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
ProtectionIP67: IEC 60529-2013

Camera

Image Sensor

1/3" Progressive Scan CMOS

Max. Resolution

2688 × 1520

Min. Illumination

Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR

Shutter Time

1 s to 1/100,000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lens

Lens Type

Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 115° 4 mm, horizontal FOV 79°, vertical FOV 42°, diagonal FOV 93°

Lens Mount

M12

Focus

Iris Type

Fixed

Aperture

F1.6

Depth of Field

2.8 mm: 1.4 m to ∞ 4 mm: 1.5 m to ∞

Pixel Density

DORI

2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m

Illuminator

Supplement Light Type

IR,White Light

Supplement Light Range

Up to 30 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Video

Main Stream

50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

50 Hz: 1 fps (1280 × 720，640 × 480, 640 × 360) 60 Hz: 1 fps (1280 × 720，640 × 480, 640 × 360

Video Compression

Main stream: H.264+/H.264/H.265/H.265+, Sub-stream: MJPEG/H.264/H.265, Third stream: H.264/H.265

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Scalable Video Coding (SVC)

YES

Region of Interest (ROI)

1 fixed regions for each stream

Target Cropping

Audio

Audio Type

Mono sound

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz/16 kHz

Environment Noise Filtering

Yes

Network

Protocols

DHCP,QoS,FTP,SSL/TLS,ICMP,RTSP,UDP,HTTPS,HTTP,DNS,IPv6,IPv4,IGMP,RTCP,RTP,DDNS,TCP/IP,UPnP,NTP,SMTP

Simultaneous Live View

Up to 6 channels

API

ONVIF (Profile S, Profile T),ISAPI,SDK,ISUP,EZVIZ

User/Host

Up to 32 users 3 user levels: administrator, operator, and user

Security

Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

Network Storage

Client

iVMS-4200,Hik-Connect

Web Browser

Plug-in required live view: Chrome 91+, Firefox 88+, Edge 91+


Image Parameters Switch

Yes

Image Settings

Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,AGC,adjustable by client software or web browser

Day/Night Switch

Day,Night,Auto,Schedule

Wide Dynamic Range (WDR)

120 dB

SNR

≥ 52 dB

Image Enhancement

BLC,HLC,3D DNR

Privacy Mask

4 programmable polygon privacy masks

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Built-in Microphone

Yes,1 built-in microphone

Built-in Speaker

Audio

Alarm

Reset Key

-F: Yes

Event

Basic Event

Video tampering alarm, motion detection (support alarm triggering by specified target types (human, vehicle)), exception

Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human, vehicle and animal))

Linkage

Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture

Deep Learning Function

Perimeter Protection

Face Capture

General

Power

12 VDC ± 25%, 0.54 A, max. 6.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W

Material

Cover: PLASTIC, main body: Metal

Dimension

Ø110 mm × 93 mm (Ø4.33" × 3.66")

Package Dimension

134 mm × 134 mm × 108 mm (5.28" × 5.28" × 4.25")

Approx. 375 g (0.83 lb.)

With Package Weight

Approx. 515 g (1.13 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

English, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German

General Function

Heartbeat,mirror,password reset via email,password protection,anti-banding

Flashing Light

Approval

EMC

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021

Safety

CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017

Environment

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529-2013
