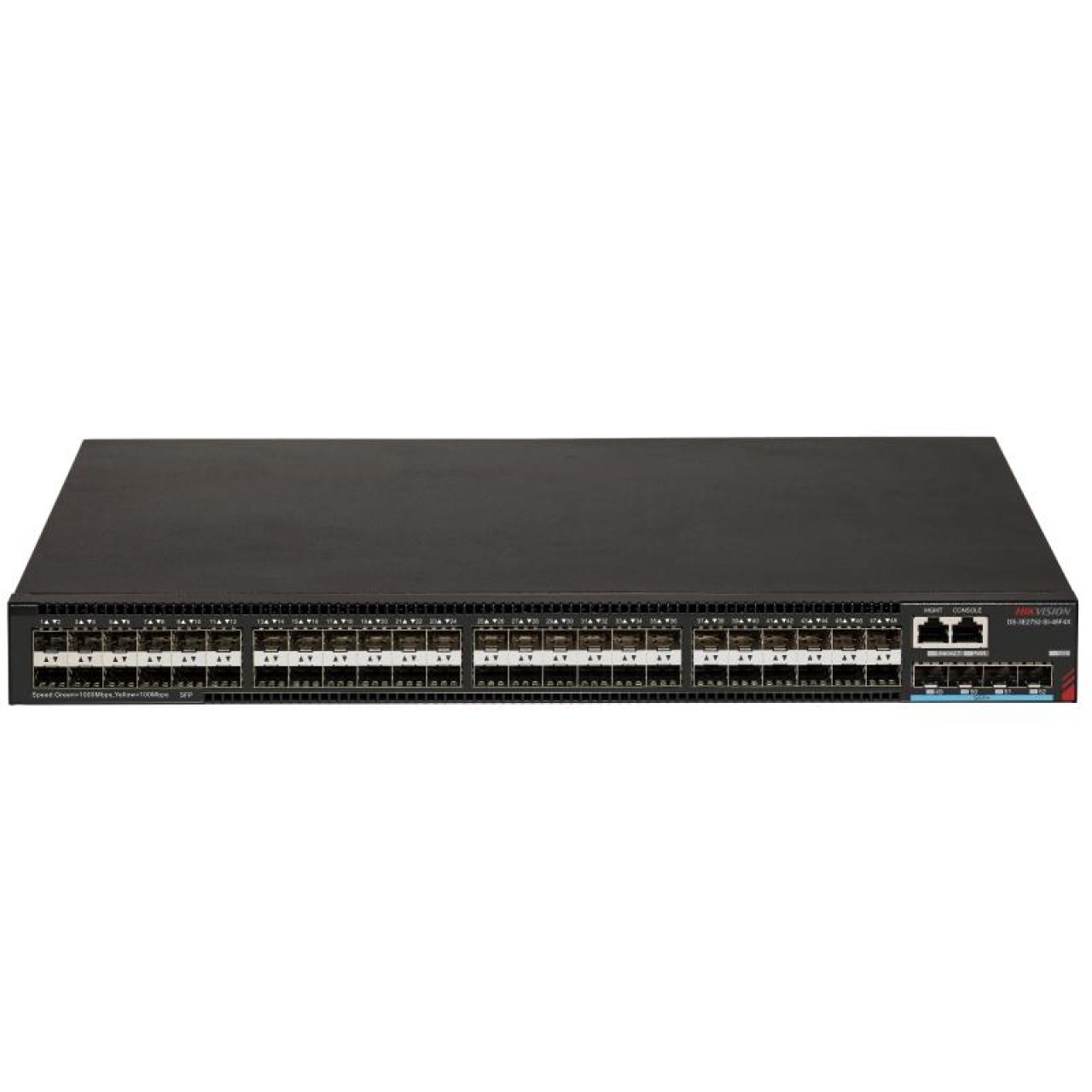

48 GE SFP, 4 10GE SFP+ Switch

Name: 48 GE SFP, 4 10GE SFP+ Switch
Brand: Hikvision
Availability: InStock
Rating: 5.0 (1 reviews)

Provides 48 Gigabit SFP ports and 4 10-Gigabit SFP+ ports.
Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z standards.
Supports management via Hik-Partner Pro app.
Supports management via unified network management platform (UNMP).
Supports port isolation, storm control, MAC binding, and port mirroring.
Supports STP/RSTP/MSTP, which can eliminate loops in LAN.
Supports L3 IPv4/IPv6 static route forwarding.
Supports port rate limiting and flow rate limiting functions to prevent malicious network bandwidth occupation. It has rich queue scheduling algorithms, which can place packets into the output queue of the port with different priorities.
Uses professional built-in lightning protection technology, supports industry-leading 10 kV business port lightning protection capability, which can greatly reduce the damage rate caused by lightning strikes to the equipment even in harsh working environments.

View Less

Data Sheet

Available models:

DS-3E2752-SI-48F4X

View more View Less

DS-3E2752-SI-48F4X

Specification
Resources
Accessories

Data Sheet

Hardware Specifications
Port48 × Gigabit SFP port,4 × 10 Gigabit SFP+ port
Switching Capacity176 Gbps
Packet Forwarding Rate130.94 Mpps
Power Supply1 fixed PSU(s)
Fan2 fixed fan(s)
Cache16 Mbits
Dimensions (W × H × D)442.0 mm × 44.0 mm × 283.3 mm (17.40'' × 1.73'' × 11.15'')
Net Weight3.98 kg (8.76 lb)
Gross Weight5.68 kg (12.52 lb)
Operating Temperature0°C to 45°C (32°F to 113°F)
Operating Humidity5% to 95% (no condensation)
Storage Temperature-40°C to 85°C (-40°F to 185°F)
Storage Humidity5% to 95% (no condensation)
Installation Mode1U Rack Mounting (19'' width)
Power Supply MethodAC: 100-240 V, 50/60 Hz, 2.1 A
Console Port1 × Console Port
MGMT PortSupported
Power Consumption (Max. Load)Single AC: 150 W
Surge Protection10 kV
Packing ListSwitch × 1 AC Power Cord × 1 L-Shaped Bracket Kit × 1 Console Cable × 1 Grounding Cable × 1 Cable Retention Clip × 1 Rubber Foot × 4 Quick Start Guide × 1 Regulatory Compliance and Safety Information × 1

Performance Specifications
Flash Memory256 MB
System Memory1 GB
MAC Address Capacity32 K
Jumbo Frame Size12000 bytes
VLANs4094
VLANIF Interfaces128
IPv4 Routes6144
IPv6 Routes2048
ARP Entries1024
System-wide L2 Multicast Entries1024
ACL Entries1024
QoS Forwarding Queues8

Service Features
Flow ControlSupported
Link AggregationSupports static aggregation. Supports dynamic aggregation via LACP.
Auto-NegotiationGigabit SFP ports 1 to 48: 1G/100M rate adaptation,10 Gigabit SFP+ ports 49 to 52: 10G/1G rate adaptation
VLANSupports 4K VLANs. Supports port-based VLAN. Supports IP subnet-based VLAN. Supports protocol-based VLAN. Supports Private VLAN (PVLAN). Supports MVRP/GVRP. Supports QinQ. Supports flexible QinQ. Supports VLAN mapping.
MulticastSupports IGMPv1/v2/v3 Snooping. Supports MLDv1/v2 Snooping.
STPSupports STP (IEEE 802.1d). Supports RSTP (IEEE 802.1w). Supports MSTP (IEEE 802.1s).
ERPSSupports G.8032 ERPS.
RRPPSupported
Private Loop DetectionSupported
Storm ControlSupported
Traffic SuppressionSupported
MirroringSupports local port mirroring. Supports remote port mirroring. Supports N:1 port mirroring. Supports flow mirroring.
IPv4 ServiceSupports Ping. Supports Traceroute. Supports DNS. Supports ARP. Supports ARP Proxy.
IPv4 RoutingSupports static routing. Supports equal-cost multi-path (ECMP) routing.
IPv6 ServiceSupports IPv4/IPv6 dual stack. Supports Ping6. Supports Telnet6. Supports FTP6. Supports TFTP6. Supports Traceroute6. Supports Neighbor Discovery (ND). Supports Path MTU (PMTU) Discovery. Supports DNSv6. Supports ICMPv6.
IPv6 RoutingSupports IPv6 static routing.
DHCPSupports DHCP Client. Supports DHCP Snooping. Supports DHCP Snooping Option 82. Supports DHCPv6 Client. Supports DHCPv6 Snooping.
Cable DetectionSupports virtual cable test (VCT). Supports device link detection protocol (DLDP).
802.1X AuthenticationSupported
MAC AuthenticationSupported
RADIUSSupports RADIUS authentication.
TACACS+Supports TACACS+ authentication.
ACLSupports L2 to L4 packet filtering. Supports ACL definitions based on source/destination MAC address, source/destination IP address (IPv4/IPv6), IP protocol type, TCP/UDP port number or port range, etc. Supports Time Range-based ACLs. Supports ACL application globally, on ports, or to VLANs. Supports Basic ACL, Advanced ACL, and MAC ACL configurations. Supports inbound, outbound, and VLAN-based ACLs.
QoSSupports 802.1p priority mapping. Supports queue scheduling mechanisms including SP, WRR, SP+WRR. Supports priority marking and remarking. Supports flow-based packet filtering. Supports flow-based traffic statistics. Supports flow-based redirection. Supports flow-based rate limiting.
SecuritySupports DoS attack protection. Supports CPU protection. Supports IP Source Guard (IPv4/IPv6). Supports port isolation. Supports HTTPS. Supports ARP detection. Supports ND snooping. Supports IP-MAC binding. Supports port security.
LLDPSupports LLDP. Supports CDP.

Operation Management
Topology DisplaySupported
Status AlarmSupported
Management PlatformSupports device management via web interface. Supports device management via iVMS-4200 Client. Supports device management via Unified Network Management Platform. Supports device management via Hik-Partner Pro app. Supports SADP. Supports AR-based port visualization.
SSHSupports SSHv2.
TelnetSupported
SNMPSupports SNMPv1. Supports SNMPv2c. Supports SNMPv3.
Clock ManagementSupports NTP.
RMONSupported
sFlowSupports counter sampling.
FTPSupported
TFTPSupported
CFMSupported
EFMSupported
Y.1731Supported
DDMFiber optical ports support DDM.
LogSupports system logs.

Approval
EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
SafetyCB (IEC 62368-1: 2023, CE-LVD (EN 62368-1: 2024+A11: 2024)
ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)

Hardware Specifications

Port

48 × Gigabit SFP port,4 × 10 Gigabit SFP+ port

Switching Capacity

176 Gbps

Packet Forwarding Rate

130.94 Mpps

Power Supply

1 fixed PSU(s)

Fan

2 fixed fan(s)

Cache

16 Mbits

Dimensions (W × H × D)

442.0 mm × 44.0 mm × 283.3 mm (17.40'' × 1.73'' × 11.15'')

Net Weight

3.98 kg (8.76 lb)

Gross Weight

5.68 kg (12.52 lb)

Operating Temperature

0°C to 45°C (32°F to 113°F)

Operating Humidity

5% to 95% (no condensation)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Storage Humidity

5% to 95% (no condensation)

Installation Mode

1U Rack Mounting (19'' width)

Power Supply Method

AC: 100-240 V, 50/60 Hz, 2.1 A

Console Port

1 × Console Port

MGMT Port

Supported

Power Consumption (Max. Load)

Single AC: 150 W

Surge Protection

10 kV

Packing List

Switch × 1 AC Power Cord × 1 L-Shaped Bracket Kit × 1 Console Cable × 1 Grounding Cable × 1 Cable Retention Clip × 1 Rubber Foot × 4 Quick Start Guide × 1 Regulatory Compliance and Safety Information × 1

Performance Specifications

Flash Memory

256 MB

System Memory

1 GB

MAC Address Capacity

32 K

Jumbo Frame Size

12000 bytes

VLANs

4094

VLANIF Interfaces

128

IPv4 Routes

6144

IPv6 Routes

2048

ARP Entries

1024

System-wide L2 Multicast Entries

1024

ACL Entries

1024

QoS Forwarding Queues

Service Features

Flow Control

Supported

Link Aggregation

Supports static aggregation. Supports dynamic aggregation via LACP.

Auto-Negotiation

Gigabit SFP ports 1 to 48: 1G/100M rate adaptation,10 Gigabit SFP+ ports 49 to 52: 10G/1G rate adaptation

VLAN

Supports 4K VLANs. Supports port-based VLAN. Supports IP subnet-based VLAN. Supports protocol-based VLAN. Supports Private VLAN (PVLAN). Supports MVRP/GVRP. Supports QinQ. Supports flexible QinQ. Supports VLAN mapping.

Multicast

Supports IGMPv1/v2/v3 Snooping. Supports MLDv1/v2 Snooping.

STP

Supports STP (IEEE 802.1d). Supports RSTP (IEEE 802.1w). Supports MSTP (IEEE 802.1s).

ERPS

Supports G.8032 ERPS.

RRPP

Supported

Private Loop Detection

Supported

Storm Control

Supported

Traffic Suppression

Supported

Mirroring

Supports local port mirroring. Supports remote port mirroring. Supports N:1 port mirroring. Supports flow mirroring.

IPv4 Service

Supports Ping. Supports Traceroute. Supports DNS. Supports ARP. Supports ARP Proxy.

IPv4 Routing

Supports static routing. Supports equal-cost multi-path (ECMP) routing.

IPv6 Service

Supports IPv4/IPv6 dual stack. Supports Ping6. Supports Telnet6. Supports FTP6. Supports TFTP6. Supports Traceroute6. Supports Neighbor Discovery (ND). Supports Path MTU (PMTU) Discovery. Supports DNSv6. Supports ICMPv6.

IPv6 Routing

Supports IPv6 static routing.

DHCP

Supports DHCP Client. Supports DHCP Snooping. Supports DHCP Snooping Option 82. Supports DHCPv6 Client. Supports DHCPv6 Snooping.

Cable Detection

Supports virtual cable test (VCT). Supports device link detection protocol (DLDP).

802.1X Authentication

Supported

MAC Authentication

Supported

RADIUS

Supports RADIUS authentication.

TACACS+

Supports TACACS+ authentication.

ACL

Supports L2 to L4 packet filtering. Supports ACL definitions based on source/destination MAC address, source/destination IP address (IPv4/IPv6), IP protocol type, TCP/UDP port number or port range, etc. Supports Time Range-based ACLs. Supports ACL application globally, on ports, or to VLANs. Supports Basic ACL, Advanced ACL, and MAC ACL configurations. Supports inbound, outbound, and VLAN-based ACLs.

QoS

Supports 802.1p priority mapping. Supports queue scheduling mechanisms including SP, WRR, SP+WRR. Supports priority marking and remarking. Supports flow-based packet filtering. Supports flow-based traffic statistics. Supports flow-based redirection. Supports flow-based rate limiting.

Security

Supports DoS attack protection. Supports CPU protection. Supports IP Source Guard (IPv4/IPv6). Supports port isolation. Supports HTTPS. Supports ARP detection. Supports ND snooping. Supports IP-MAC binding. Supports port security.

LLDP

Supports LLDP. Supports CDP.

Operation Management

Topology Display

Supported

Status Alarm

Supported

Management Platform

Supports device management via web interface. Supports device management via iVMS-4200 Client. Supports device management via Unified Network Management Platform. Supports device management via Hik-Partner Pro app. Supports SADP. Supports AR-based port visualization.

SSH

Supports SSHv2.

Telnet

Supported

SNMP

Supports SNMPv1. Supports SNMPv2c. Supports SNMPv3.

Clock Management

Supports NTP.

RMON

Supported

sFlow

Supports counter sampling.
