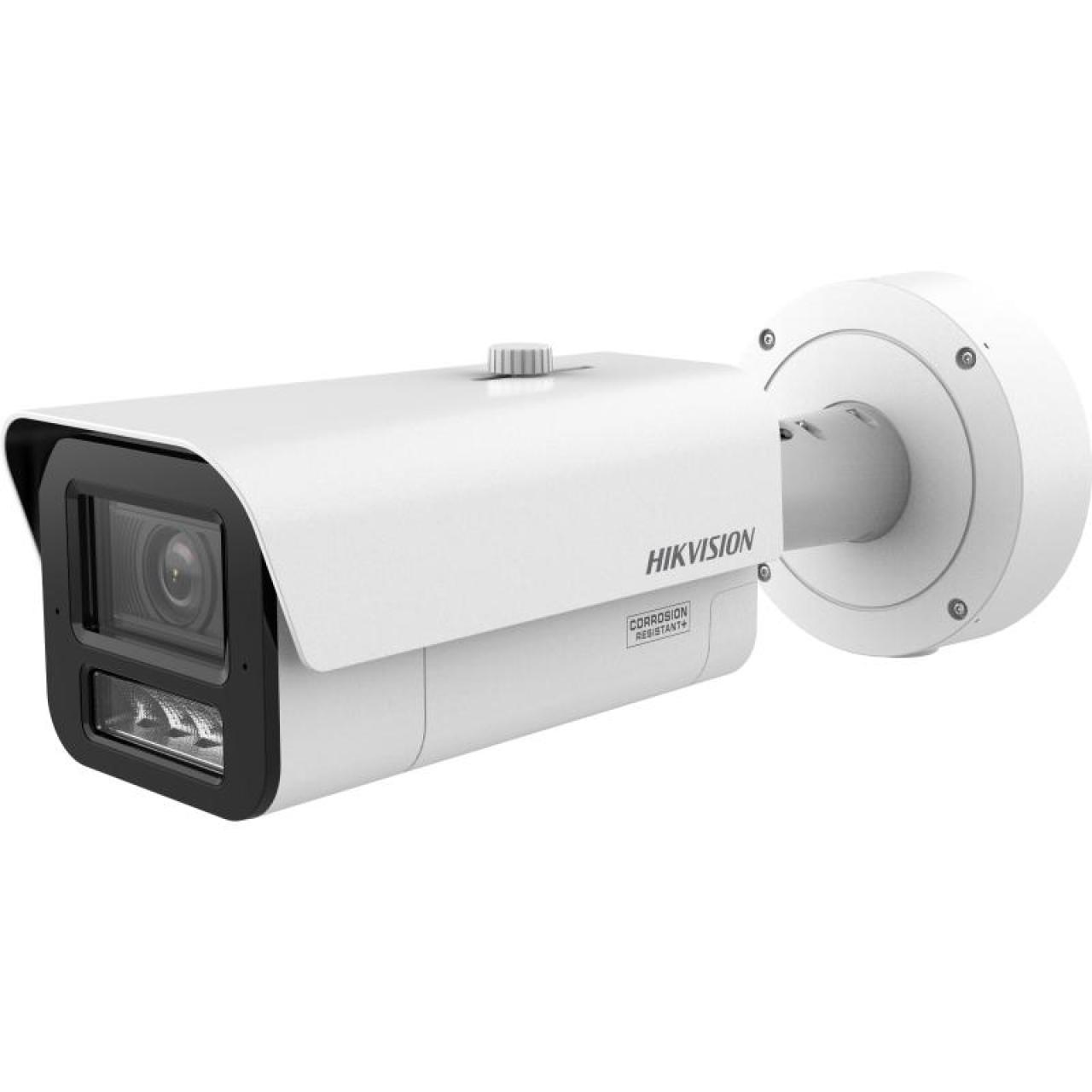

4MP Darkfighter DeepinView ANPR Moto Varifocal Bullet Camera

  • High quality imaging with 4 MP resolution
  • Excellent low-light performance via DarkFighter 2.0 technology
  • Clear imaging against strong back light due to 150 dB AWDR technology
  • Efficient H.265+ compression technology to save bandwidth and storage
  • 5 streams to meet a wide variety of applications
  • Water and dust resistant (IP67), vandal proof (IK10) and corrosion resistant (NEMA 4X, optional)
  • High frame rate, up to 2MP@120fps and 4MP@60fps
  • Built-in heater to ensure clear image under rainy or snowy weather
  • Built-in G-sensor for vibration detection
  • Built-in power meter for historical power statistics
  • License plate recognition and vehicle attribution recognition

View Less
View more
Data Sheet
Sales Inquiry

Available models:

iDS-2CD7A47G2H/P-XZHSY(10-50mm)
View more View Less
iDS-2CD7A47G2H/P-XZHSY AcuSeek NEW
Data Sheet

Specification

  • Camera
  • Image Sensor1/1.2" Progressive Scan CMOS
  • Max. Resolution2688 × 1520
  • Min. IlluminationColor: 0.0003 Lux @ (F1.0, AGC ON),B/W: 0.0001 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
  • Shutter Time1 s to 1/100,000 s
  • Day & NightIR cut filter, Blue glass module (less ghost phenomenon)
  • Lens
  • Focal Length & FOV10 to 50 mm, horizontal FOV 36.9° to 13.2°, vertical FOV 20.9° to 7.6°, diagonal FOV 42.4° to 15.1°
  • Lens TypeVarifocal lens, motorized lens, 10 to 50 mm
  • FocusAuto,Semi-auto,Manual
  • Iris TypeP-iris
  • Aperture10 to 50 mm: F1.65 to F1.67
  • Pixel Density
  • OODPCVSWide: Overview: 208.3 m, Outline: 104.2 m, Discern: 52.1 m, Perceive: 33.3 m, Characterize: 16.7 m, Validate: 8.3 m, Scrutinize: 2.8 m . Tele: Overview: 571.4 m, Outline: 285.7 m, Discern: 142.9 m, Perceive: 91.4 m, Characterize: 45.7 m, Validate: 22.9 m, Scrutinize: 7.6 m . The OODPCVS values are calculated using pixel densities for different use cases as recommended by the IEC/EN 62676-4: 2025 standard. IEC 62676-4:2025 describes the planning, design, installation, testing, commissioning, and maintaining of video surveillance systems (VSS) comprising image capture device(s), interconnection(s) and image handling device(s), for use in security applications within private or public spaces.
  • Illuminator
  • Supplement Light TypeIR,White Light
  • Supplement Light Range10 to 50 mm: Monitoring: 100 m;
  • Smart Supplement LightYes
  • IR Wavelength850 nm
  • HEOP
  • Open ResourcesMemory: 150 MB, Smart RAM: 2200 MB, eMMC: 1288 MB
  • Computing Power2.5 TOPS
  • Open CapabilityHEOP 2.0 OpendevSDK, Basic service, basic media capability, deep learning reasoning acceleration capability
  • Deep Learning StructureCaffe,PyTorch,TensorFlow
  • Programming LanguageC,C++
  • Video
  • Main StreamMonitoring mode: 50 Hz: up to 50 fps (2688 × 1520, 1280 × 720), up to 100 fps (1920 × 1080) 60 Hz: up to 60 fps (2688 × 1520, 1280 × 720), up to 120 fps (1920 × 1080) *High frame rate is supported under monitoring mode only. smart mode: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)
  • Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Fourth Stream50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)
  • Fifth Stream50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG, Fifth stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR,VBR
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)4 fixed regions for each stream
  • Target CroppingYes
  • e-PTZSupport Patrol and Auto Tracking settings
  • Guanlan AI EncodingYes
  • Audio
  • Audio TypeMono sound
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
  • Environment Noise FilteringYes
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, SRTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, WebSocket, WebSockets，MQTT/MQTTS，Support X.509 authentication，Support802.1xEAP-GTC and MSCHAP V2；802.1xEAP 1.2 supports a maximum 32-bit key.
  • Simultaneous Live ViewUp to 20 channels
  • APIISAPI,SDK,ISUP,OTAP,ONVIF (Profile S, Profile G, Profile T, Profile M)
  • User/HostUp to 32 users 3 user levels: administrator, operator, and user
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
  • Smooth StreamingYes
  • Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • ClientiVMS-4200,Hik-Connect,Hik-Central
  • Web BrowserPlug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
  • Image
  • Image Parameters SwitchYes
  • Image SettingsRotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
  • Day/Night SwitchDay,Night,Auto,Schedule,Alarm Trigger
  • Wide Dynamic Range (WDR)150 dB
  • Image EnhancementBLC,HLC,3D DNR,Distortion Correction,Defog
  • Privacy Mask8 programmable polygon privacy masks
  • SNR≥ 52 dB
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
  • Image StabilizationEIS
  • Interface
  • Video Output1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
  • Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
  • On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
  • Alarm 2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
  • Built-in Microphone 2 built-in microphones
  • Audio1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
  • Built-in Speaker 1 built-in speaker,Max. power consumption: 2.0W
  • RS-485-Y: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Reset KeyYes
  • Power Output-Y: 12 VDC, max. 100 mA
  • Wiegand-Y: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72 bit)
  • Event
  • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),glass break detection,scream detection,gunshot and explosion sound detection,crying sound detection
  • Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection
  • LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
  • Deep Learning Function
  • Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) Support combined event alarm triggering
  • MetadataIntrusion detection,line crossing detection,region entrance detection,region exiting detection,road traffic
  • Road Traffic and Vehicle DetectionSmart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc. Support vehicle and non-vehicle counting Blocklist and allowlist: up to 50,000 records LPR Countries/Regions: 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98% Capture rate ≥99% Driving direction accuracy rate ≥98% Vehicle Capture Speed: Front installation in checkpoint scenario: up to 120 km/h Side installation: up to 80 km/h Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode Supports license plate recognition in detection area or lane line in the entrance and exit. Supports Reverse License Plate Secondary Detection. If the vehicle is always in the camera view, when it triggers one capture, another capture will be triggered when it backs out of parking lot. Supports JSON files in alarm upload.
  • Parking ManagementSupport distant view mode and close view mode Distant view mode: support status detection on up to 40 parking spaces, parking duration detection, and vacant parking space alarm Close view mode: support status detection on up to 4 parking spaces, license plate recognition, parking timeout alarm, and vacant parking space alarm
  • AcuSeekSupport searching for humans, license plates, vehicles, non-motorized vehicles, and animals and uploading the feature information. This function requires use with AcuSeek NVR/Servers.
  • Vehicle Event DetectionSupports Parking Detection and Congestion Detection Supports Vehicle Statistics to count the number of vehicles staying within the detection area. Suppots real-time upload data, and OSD overlay.
  • GeneralSupports scheduled-switch of smart applications. Supports enabling 2 smart applications at the same time.
  • General
  • Powerthree-core terminal block, 12 VDC ± 20%, 1.8A, max. 21.6 W, 24 VAC ± 20%, 1.47A, max. 20.8 W, PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.54 A to 0.4 A, max. 23.1 W
  • MaterialAluminum alloy body
  • Dimension120.8 mm × 102.9 mm × 367.4 mm (4.75" × 4.05" × 14.77")
  • Package Dimension425 mm × 190 mm × 180 mm (16.7" × 7.5" × 7.1")
  • Approx. 2330 g (5.14 lb.)
  • With Package WeightApprox. 3475 g (7.66 lb.)
  • Storage Conditions-40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing)
  • Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General FunctionHeartbeat,anti-banding,one-key reset,mirror,password protection,flash log
  • HeaterYes
  • DemistYes
  • Device ManagementSupports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces
  • Integrated Connector Panel-Y: No
  • Approval
  • EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015
  • Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
  • EnvironmentCE-RoHS: 2011/65/EU
  • ProtectionIP67: IEC 60529-2013,IK10: IEC 62262:2002
  • Anti-Corrosion Protection-Y: NEMA 4X (NEMA 250-2018)
  • Automotive and RailwayEN50121-4
  • OtherPVC FREE
  • Cyber SecurityIEC62443-4-1 ML2 EUCC CC: EAL3
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/1.2" Progressive Scan CMOS
Max. Resolution
2688 × 1520
Min. Illumination
Color: 0.0003 Lux @ (F1.0, AGC ON),B/W: 0.0001 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
Shutter Time
1 s to 1/100,000 s
Day & Night
IR cut filter, Blue glass module (less ghost phenomenon)
Lens
Focal Length & FOV
10 to 50 mm, horizontal FOV 36.9° to 13.2°, vertical FOV 20.9° to 7.6°, diagonal FOV 42.4° to 15.1°
Lens Type
Varifocal lens, motorized lens, 10 to 50 mm
Focus
Auto,Semi-auto,Manual
Iris Type
P-iris
Aperture
10 to 50 mm: F1.65 to F1.67
Pixel Density
OODPCVS
Wide: Overview: 208.3 m, Outline: 104.2 m, Discern: 52.1 m, Perceive: 33.3 m, Characterize: 16.7 m, Validate: 8.3 m, Scrutinize: 2.8 m . Tele: Overview: 571.4 m, Outline: 285.7 m, Discern: 142.9 m, Perceive: 91.4 m, Characterize: 45.7 m, Validate: 22.9 m, Scrutinize: 7.6 m . The OODPCVS values are calculated using pixel densities for different use cases as recommended by the IEC/EN 62676-4: 2025 standard. IEC 62676-4:2025 describes the planning, design, installation, testing, commissioning, and maintaining of video surveillance systems (VSS) comprising image capture device(s), interconnection(s) and image handling device(s), for use in security applications within private or public spaces.
Illuminator
Supplement Light Type
IR,White Light
Supplement Light Range
10 to 50 mm: Monitoring: 100 m;
Smart Supplement Light
Yes
IR Wavelength
850 nm
HEOP
Open Resources
Memory: 150 MB, Smart RAM: 2200 MB, eMMC: 1288 MB
Computing Power
2.5 TOPS
Open Capability
HEOP 2.0 OpendevSDK, Basic service, basic media capability, deep learning reasoning acceleration capability
Deep Learning Structure
Caffe,PyTorch,TensorFlow
Programming Language
C,C++
Video
Main Stream
Monitoring mode: 50 Hz: up to 50 fps (2688 × 1520, 1280 × 720), up to 100 fps (1920 × 1080) 60 Hz: up to 60 fps (2688 × 1520, 1280 × 720), up to 120 fps (1920 × 1080) *High frame rate is supported under monitoring mode only. smart mode: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)
Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream
50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)
Fifth Stream
50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG, Fifth stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR,VBR
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
4 fixed regions for each stream
Target Cropping
Yes
e-PTZ
Support Patrol and Auto Tracking settings
Guanlan AI Encoding
Yes
Audio
Audio Type
Mono sound
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering
Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, SRTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, WebSocket, WebSockets，MQTT/MQTTS，Support X.509 authentication，Support802.1xEAP-GTC and MSCHAP V2；802.1xEAP 1.2 supports a maximum 32-bit key.
Simultaneous Live View
Up to 20 channels
API
ISAPI,SDK,ISUP,OTAP,ONVIF (Profile S, Profile G, Profile T, Profile M)
User/Host
Up to 32 users 3 user levels: administrator, operator, and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
Smooth Streaming
Yes
Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client
iVMS-4200,Hik-Connect,Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch
Yes
Image Settings
Rotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
Day/Night Switch
Day,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR)
150 dB
Image Enhancement
BLC,HLC,3D DNR,Distortion Correction,Defog
Privacy Mask
8 programmable polygon privacy masks
SNR
≥ 52 dB
Picture Overlay
LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Image Stabilization
EIS
Interface
Video Output
1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
Ethernet Interface
1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Alarm
2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
Built-in Microphone
2 built-in microphones
Audio
1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
Built-in Speaker
1 built-in speaker,Max. power consumption: 2.0W
RS-485
-Y: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key
Yes
Power Output
-Y: 12 VDC, max. 100 mA
Wiegand
-Y: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72 bit)
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),glass break detection,scream detection,gunshot and explosion sound detection,crying sound detection
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Linkage
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
Deep Learning Function
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) Support combined event alarm triggering
Metadata
Intrusion detection,line crossing detection,region entrance detection,region exiting detection,road traffic
Road Traffic and Vehicle Detection
Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc. Support vehicle and non-vehicle counting Blocklist and allowlist: up to 50,000 records LPR Countries/Regions: 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98% Capture rate ≥99% Driving direction accuracy rate ≥98% Vehicle Capture Speed: Front installation in checkpoint scenario: up to 120 km/h Side installation: up to 80 km/h Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode Supports license plate recognition in detection area or lane line in the entrance and exit. Supports Reverse License Plate Secondary Detection. If the vehicle is always in the camera view, when it triggers one capture, another capture will be triggered when it backs out of parking lot. Supports JSON files in alarm upload.
Parking Management
Support distant view mode and close view mode Distant view mode: support status detection on up to 40 parking spaces, parking duration detection, and vacant parking space alarm Close view mode: support status detection on up to 4 parking spaces, license plate recognition, parking timeout alarm, and vacant parking space alarm
AcuSeek
Support searching for humans, license plates, vehicles, non-motorized vehicles, and animals and uploading the feature information. This function requires use with AcuSeek NVR/Servers.
Vehicle Event Detection
Supports Parking Detection and Congestion Detection Supports Vehicle Statistics to count the number of vehicles staying within the detection area. Suppots real-time upload data, and OSD overlay.
General
Supports scheduled-switch of smart applications. Supports enabling 2 smart applications at the same time.
General
Power
three-core terminal block, 12 VDC ± 20%, 1.8A, max. 21.6 W, 24 VAC ± 20%, 1.47A, max. 20.8 W, PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.54 A to 0.4 A, max. 23.1 W
Material
Aluminum alloy body
Dimension
120.8 mm × 102.9 mm × 367.4 mm (4.75" × 4.05" × 14.77")
Package Dimension
425 mm × 190 mm × 180 mm (16.7" × 7.5" × 7.1")
Approx. 2330 g (5.14 lb.)
With Package Weight
Approx. 3475 g (7.66 lb.)
Storage Conditions
-40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing)
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Heartbeat,anti-banding,one-key reset,mirror,password protection,flash log
Heater
Yes
Demist
Yes
Device Management
Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces
Integrated Connector Panel
-Y: No
Approval
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015
Safety
CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU
Protection
IP67: IEC 60529-2013,IK10: IEC 62262:2002
Anti-Corrosion Protection
-Y: NEMA 4X (NEMA 250-2018)
Automotive and Railway
EN50121-4
Other
PVC FREE
Cyber Security
IEC62443-4-1 ML2 EUCC CC: EAL3
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Camera
  • Camera
  • Camera
  • Camera
  • Camera
  • Camera
Lens
  • Lens
  • Lens
  • Lens
  • Lens
  • Lens
Pixel Density
  • Pixel Density
Illuminator
  • Illuminator
  • Illuminator
  • Illuminator
  • Illuminator
HEOP
  • HEOP
  • HEOP
  • HEOP
  • HEOP
  • HEOP
Video
  • Video
  • Video
  • Video
  • Video
  • Video
  • Video
  • Video
  • Video
  • Video
  • Video
  • Video
  • Video
  • Video
  • Video
  • Video
Audio
  • Audio
  • Audio
  • Audio
  • Audio
  • Audio
Network
  • Network
  • Network
  • Network
  • Network
  • Network
  • Network
  • Network
  • Network
  • Network
  • Image
  • Image
  • Image
  • Image
  • Image
  • Image
  • Image
  • Image
  • Image
Interface
  • Interface
  • Interface
  • Interface
  • Interface
  • Interface
  • Interface
  • Interface
  • Interface
  • Interface
  • Interface
  • Interface
Event
  • Event
  • Event
  • Event
Deep Learning Function
  • Deep Learning Function
  • Deep Learning Function
  • Deep Learning Function
  • Deep Learning Function
  • Deep Learning Function
  • Deep Learning Function
  • Deep Learning Function
General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
Approval
  • Approval
  • Approval
  • Approval
  • Approval
  • Approval
  • Approval
  • Approval
  • Approval
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.9.24_260901
DeepinView Camera_V5.9.24 release note
Applied to:
iDS-2CD7A47G2H/P-XZHSY(10-50mm)

Hikvision.com uses strictly necessary cookies and related technologies to enable the website to function. With your consent, we would also like to use cookies to observe and analyse traffic levels and other metrics / show you targeted advertising / show you advertising on the basis of your location / tailor our website's content. For more information on cookie practices please refer to our cookie policy.

Manage cookies Reject All Accept All
Accept All
Reject All Manage cookies
Sales
Technical Support
Newsletter Subscription
Hikie
Where to Buy
Website Feedback
Contact Us
Hik-Partner Pro close
Hik-Partner Pro
Security Business Assistant. At Your Fingertips. Learn more
Download Hik-Partner Pro
Scan and download the app
Download
Hik-Partner Pro

Get a better browsing experience

You are using a web browser we don’t support. Please try one of the following options to have a better experience of our web content.
