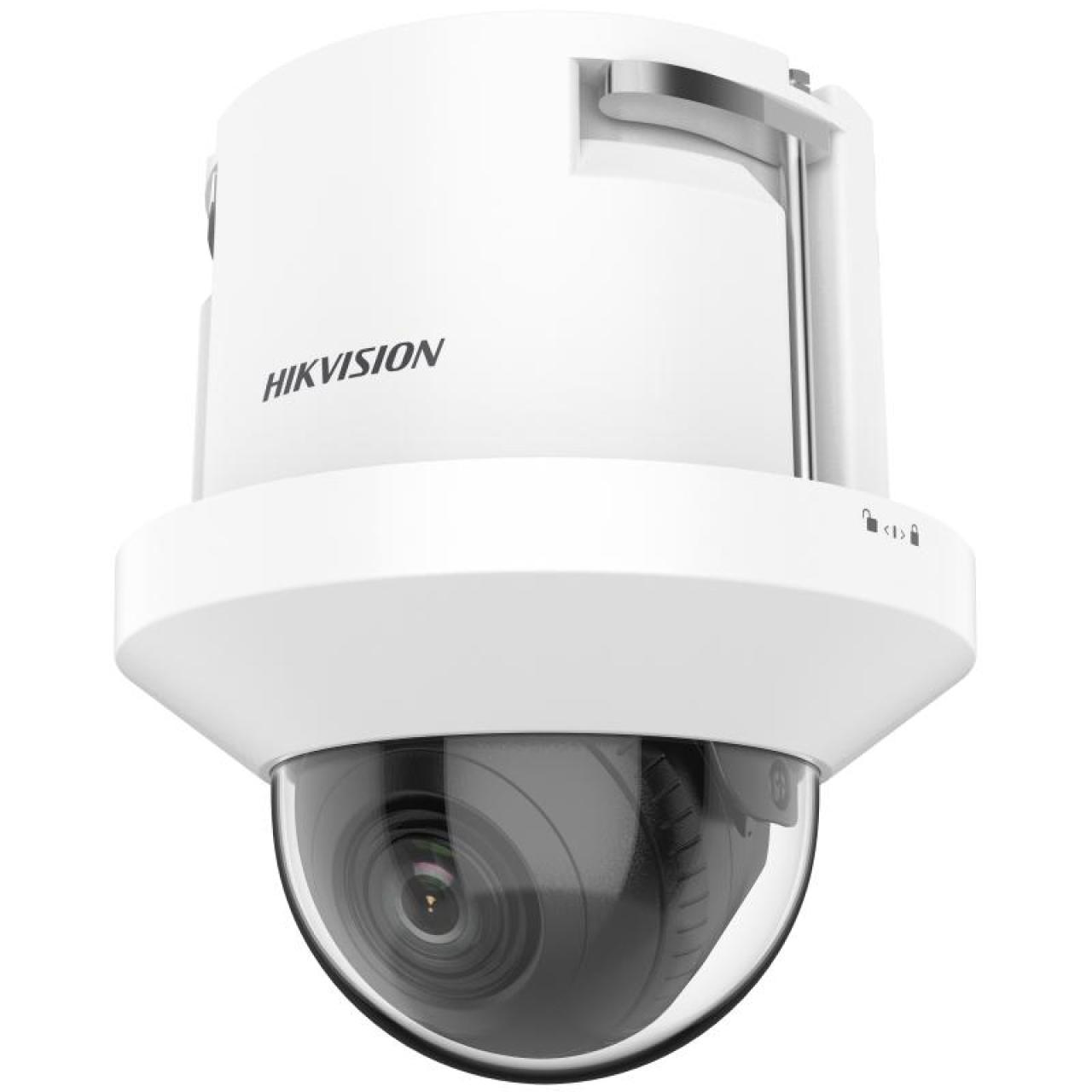

8MP DeepinViewX In-Ceiling Mount Moto Varifocal Dome Camera

Name: 8MP DeepinViewX In-Ceiling Mount Moto Varifocal Dome Camera
Brand: Hikvision
Availability: InStock
Rating: 5.0 (1 reviews)

High quality imaging with 8 MP resolution
Excellent low-light performance via Darkfighter 2.0 technology
Efficient H.265+ compression technology to save bandwidth and storage
Water and dust resistant (IP67) and vandal proof (IK10)
Unique PTRZ capability for efficient installation and maintenance
Specially designed for recessed inceiling mount
Powered by Guanlan large-scale model, camera supports AI Encoding to reduce storage usage by 50% while keeping image quality of key targets like human and vehicles.
Dedicated large-scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI cameras

View Less

Data Sheet

Available models:

iDS-2CD5186G2/V-ZS/RC(2.8-12mm)

View more View Less

iDS-2CD5186G2/V-ZS/RC AcuSeek

^NEW

Specification
Resources
Accessories

Data Sheet

Camera
Image Sensor1/1.8" Progressive Scan CMOS
Max. Resolution3840 × 2160
Min. IlluminationColor: 0.001 Lux @ (F1.2, AGC ON),0 Lux with light
Shutter Time1 s to 1/100,000 s
Day & NightIR cut filter, Blue glass module (less ghost phenomenon)
Angle AdjustmentPan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°

Lens
Focal Length & FOV2.8 to 12 mm, horizontal FOV 112.0° to 47.5°, vertical FOV 58.0° to 26.6°, diagonal FOV 137.5° to 54.6° 8 to 32 mm, horizontal FOV 41.8° to 15.0°, vertical FOV 22.9° to 8.5°, diagonal FOV 48.7° to 17.1°
Lens TypeVarifocal lens, motorized lens, 2.8 to 12 mm and 8 to 32 mm optional
Iris TypeP-iris
Aperture2.8 to 12 mm: F1.4 to F2.1 8 to 32 mm: F1.7 to F1.7

Pixel Density
OODPCVSWide: 2.8 to 12 mm: Overview: 110.0 m, Outline: 55.0 m, Discern: 27.5 m, Perceive: 17.6 m, Characterize: 8.8 m, Validate: 4.4 m, Scrutinize: 1.5 m 8 to 32 mm: Overview: 272.5 m, Outline: 136.3 m, Discern: 68.1 m, Perceive: 43.6 m, Characterize: 21.8 m, Validate: 10.9 m, Scrutinize: 3.6 m Tele: 2.8 to 12 mm: Overview: 232.5 m, Outline: 116.3 m, Discern: 58.1 m, Perceive: 37.2 m, Characterize: 18.6 m, Validate: 9.3 m, Scrutinize: 3.1 m 8 to 32 mm: Overview: 725.0 m, Outline: 362.5 m, Discern: 181.3 m, Perceive: 116.0 m, Characterize: 58.0 m, Validate: 29.0 m, Scrutinize: 9.7 m The OODPCVS values are calculated using pixel densities for different use cases as recommended by the IEC/EN 62676-4: 2025 standard. IEC 62676-4:2025 describes the planning, design, installation, testing, commissioning, and maintaining of video surveillance systems (VSS) comprising image capture device(s), interconnection(s) and image handling device(s), for use in security applications within private or public spaces.

AI Open Platform
Model SpecificationModel type for AI Open Platform trained algorithm loading: high-performance model (small model). Supports 4 model packages, each capable of detecting 16 target types and classifying 4 targets. The targets can be classified as 64 types. The device runs only 1 model at the same time.

Video
Main Stream50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)8 fixed regions for each stream
Target CroppingNO
AI EncodingYes

Audio
Audio TypeMono sound
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/8~320 Kbps(MP3)/32~192 Kbps(MP2L2)/16~64 Kbps(AAC-LC)
Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise FilteringYes

Network
ProtocolsIPv4,HTTP,SSL/TLS,ICMP,SFTP,SMTP,RTSP,HTTPS,NTP,QoS,WebSocket,FTP,RTP,WebSockets,UDP,DHCP,IGMP,TCP/IP,DNS,RTCP,IPv6,Bonjour
Simultaneous Live ViewUp to 20 channels
APIISAPI,EZVIZ,Open Network Video Interface,ISUP,OTAP,SDK
User/HostUp to 32 users 3 user levels: administrator, operator, and user
SecurityAES128/256, complicated password, control timeout settings, TLS 1.2, host authentication (MAC address), Password protection, WSSE and digest authentication for Open Network Video Interface, security audit log, 802.1X authentication(EAP-LEAP,EAP-TLS,EAP-MD5), RTP/RTSP over HTTPS, basic and digest authentication for HTTP/HTTPS, TLS 1.3, HTTPS encryption, watermark, IP address filter
Network StorageNAS（NFS,SMB/CIFS）
ClientiVMS-4200,Hik-Connect
Web BrowserPlug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters SwitchYes
Day/Night SwitchDay,Night,Auto,Schedule,Alarm Trigger
Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Wide Dynamic Range (WDR)130 dB
Image EnhancementHLC,BLC,3D DNR
Privacy Mask8 programmable polygon privacy masks
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Image StabilizationEIS

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Alarm 2 input, 2 output (max. 12 VDC, 30 mA)
Audio1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Reset KeyYes
Power Output12 VDC, max. 100 mA External extension cord less than 10 meters.
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (HDD full, HDD error, network disconnected, IP address conflict, illegal login, abnormal restart),alarm input and output,video quality diagnosis
Smart Eventparking detection,people gathering detection,object removal detection,loitering detection,audio exception detection,defocus detection,region exiting detection,unattended baggage detection,intrusion detection,scene change detection,Line crossing detection,fast moving detection,region entrance detection
Linkagesend email,trigger recording,notify surveillance center,trigger alarm output,Upload to FTP/NAS/memory card,audible warning

Deep Learning Function
Multi-target-type Detection Supports simultaneous detection and capture of human body, face, and vehicle, Gets face features, Gets human body features, Gets vehicle features, Supports counting the number of line crossing targets by type, including human body, non-motor vehicle, motor vehicle
Face CaptureDetects up to 60 faces simultaneously, Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°, Uploads face with background and closed-up face pictures
Heat Map A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area., Two report types are available, space heat map and time heat map line chart.
Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) Support combined event alarm triggering Dedicated large scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI cameras
MetadataIntrusion detection,line crossing detection,region entrance detection,region exiting detection
Regional People CountingSupports up to 8 detection regions, and independent arming schedule and linkage method Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection Supports parameter settings: alarm times per exception, alarm interval, first alarm delay Supports searching real-time number of people People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B) Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)
On/Off Duty DetectionSupports up to 8 detection regions, and independent arming schedule and linkage method, Supports 2 detection modes: absence detection, on/off duty detection, Supports parameter settings: person on duty, absence duration
AcuSeekSupport search for humans, vehicles, This function requires use with AcuSeek NVR/Servers.

General
Power12 VDC ± 20%, 0.96 A, max. 11.5 W, PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.32 A to 0.24 A, max. 13.3W
MaterialAluminum alloy body
DimensionØ135 mm × 149.1 mm (Ø5.31" × 5.87")
Package Dimension170 mm × 170 mm × 242 mm (6.69" × 6.69" × 9.53")
Approx. 1080 g (2.38 lb.)
With Package WeightApprox. 1380 g (3.04 lb.)
Storage Conditions-30 °C to 60 °C (-30 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-30 °F to 140 °F). Humidity 95% or less (non-condensing)
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionHeartbeat,anti-banding,one-key reset,mirror,password protection,flash log
Integrated Connector PanelNo

Approval
EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015
SafetyCB: IEC 62368-1: 2014+A11
ProtectionIK10: IEC 62262:2002
EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Transport CertificationIATA Dangerous Goods Regulations, Dangerous Goods List, International Maritime Dangerous Goods Code, Railway Dangerous Goods List

Camera

Image Sensor

1/1.8" Progressive Scan CMOS

Max. Resolution

3840 × 2160

Min. Illumination

Color: 0.001 Lux @ (F1.2, AGC ON),0 Lux with light

Shutter Time

1 s to 1/100,000 s

Day & Night

IR cut filter, Blue glass module (less ghost phenomenon)

Angle Adjustment

Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°

Lens

Focal Length & FOV

2.8 to 12 mm, horizontal FOV 112.0° to 47.5°, vertical FOV 58.0° to 26.6°, diagonal FOV 137.5° to 54.6° 8 to 32 mm, horizontal FOV 41.8° to 15.0°, vertical FOV 22.9° to 8.5°, diagonal FOV 48.7° to 17.1°

Lens Type

Varifocal lens, motorized lens, 2.8 to 12 mm and 8 to 32 mm optional

Iris Type

P-iris

Aperture

2.8 to 12 mm: F1.4 to F2.1 8 to 32 mm: F1.7 to F1.7

Pixel Density

OODPCVS

Wide: 2.8 to 12 mm: Overview: 110.0 m, Outline: 55.0 m, Discern: 27.5 m, Perceive: 17.6 m, Characterize: 8.8 m, Validate: 4.4 m, Scrutinize: 1.5 m 8 to 32 mm: Overview: 272.5 m, Outline: 136.3 m, Discern: 68.1 m, Perceive: 43.6 m, Characterize: 21.8 m, Validate: 10.9 m, Scrutinize: 3.6 m Tele: 2.8 to 12 mm: Overview: 232.5 m, Outline: 116.3 m, Discern: 58.1 m, Perceive: 37.2 m, Characterize: 18.6 m, Validate: 9.3 m, Scrutinize: 3.1 m 8 to 32 mm: Overview: 725.0 m, Outline: 362.5 m, Discern: 181.3 m, Perceive: 116.0 m, Characterize: 58.0 m, Validate: 29.0 m, Scrutinize: 9.7 m The OODPCVS values are calculated using pixel densities for different use cases as recommended by the IEC/EN 62676-4: 2025 standard. IEC 62676-4:2025 describes the planning, design, installation, testing, commissioning, and maintaining of video surveillance systems (VSS) comprising image capture device(s), interconnection(s) and image handling device(s), for use in security applications within private or public spaces.

AI Open Platform

Model Specification

Model type for AI Open Platform trained algorithm loading: high-performance model (small model). Supports 4 model packages, each capable of detecting 16 target types and classifying 4 targets. The targets can be classified as 64 types. The device runs only 1 model at the same time.

Video

Main Stream

50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)

Third Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Fourth Stream

50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

8 fixed regions for each stream

Target Cropping

AI Encoding

Yes

Audio

Audio Type

Mono sound

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/8~320 Kbps(MP3)/32~192 Kbps(MP2L2)/16~64 Kbps(AAC-LC)

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/48 kHz

Environment Noise Filtering

Yes

Network

Protocols

IPv4,HTTP,SSL/TLS,ICMP,SFTP,SMTP,RTSP,HTTPS,NTP,QoS,WebSocket,FTP,RTP,WebSockets,UDP,DHCP,IGMP,TCP/IP,DNS,RTCP,IPv6,Bonjour

Simultaneous Live View

Up to 20 channels

API

ISAPI,EZVIZ,Open Network Video Interface,ISUP,OTAP,SDK

User/Host

Up to 32 users 3 user levels: administrator, operator, and user

Security

AES128/256, complicated password, control timeout settings, TLS 1.2, host authentication (MAC address), Password protection, WSSE and digest authentication for Open Network Video Interface, security audit log, 802.1X authentication(EAP-LEAP,EAP-TLS,EAP-MD5), RTP/RTSP over HTTPS, basic and digest authentication for HTTP/HTTPS, TLS 1.3, HTTPS encryption, watermark, IP address filter

Network Storage

NAS（NFS,SMB/CIFS）

Client

iVMS-4200,Hik-Connect

Web Browser

Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


Image Parameters Switch

Yes

Day/Night Switch

Day,Night,Auto,Schedule,Alarm Trigger

Image Settings

Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Wide Dynamic Range (WDR)

130 dB

Image Enhancement

HLC,BLC,3D DNR

Privacy Mask

8 programmable polygon privacy masks

Picture Overlay

LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Image Stabilization

EIS

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB

Alarm

2 input, 2 output (max. 12 VDC, 30 mA)

Audio

1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Reset Key

Yes

Power Output

12 VDC, max. 100 mA External extension cord less than 10 meters.

RS-485

1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Event

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (HDD full, HDD error, network disconnected, IP address conflict, illegal login, abnormal restart),alarm input and output,video quality diagnosis

Smart Event

parking detection,people gathering detection,object removal detection,loitering detection,audio exception detection,defocus detection,region exiting detection,unattended baggage detection,intrusion detection,scene change detection,Line crossing detection,fast moving detection,region entrance detection

Linkage

send email,trigger recording,notify surveillance center,trigger alarm output,Upload to FTP/NAS/memory card,audible warning

Deep Learning Function

Multi-target-type Detection

Supports simultaneous detection and capture of human body, face, and vehicle, Gets face features, Gets human body features, Gets vehicle features, Supports counting the number of line crossing targets by type, including human body, non-motor vehicle, motor vehicle

Face Capture

Detects up to 60 faces simultaneously, Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°, Uploads face with background and closed-up face pictures

Heat Map

A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area., Two report types are available, space heat map and time heat map line chart.

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) Support combined event alarm triggering Dedicated large scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI cameras

Metadata

Intrusion detection,line crossing detection,region entrance detection,region exiting detection

Regional People Counting

Supports up to 8 detection regions, and independent arming schedule and linkage method Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection Supports parameter settings: alarm times per exception, alarm interval, first alarm delay Supports searching real-time number of people People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B) Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)

On/Off Duty Detection

Supports up to 8 detection regions, and independent arming schedule and linkage method, Supports 2 detection modes: absence detection, on/off duty detection, Supports parameter settings: person on duty, absence duration

AcuSeek

Support search for humans, vehicles, This function requires use with AcuSeek NVR/Servers.

General

Power

12 VDC ± 20%, 0.96 A, max. 11.5 W, PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.32 A to 0.24 A, max. 13.3W

Material

Aluminum alloy body

Dimension

Ø135 mm × 149.1 mm (Ø5.31" × 5.87")

Package Dimension

170 mm × 170 mm × 242 mm (6.69" × 6.69" × 9.53")

Approx. 1080 g (2.38 lb.)

With Package Weight

Approx. 1380 g (3.04 lb.)

Storage Conditions

-30 °C to 60 °C (-30 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-30 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Heartbeat,anti-banding,one-key reset,mirror,password protection,flash log

Integrated Connector Panel

Approval

EMC

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015

Safety

CB: IEC 62368-1: 2014+A11

Protection

IK10: IEC 62262:2002

Environment

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
