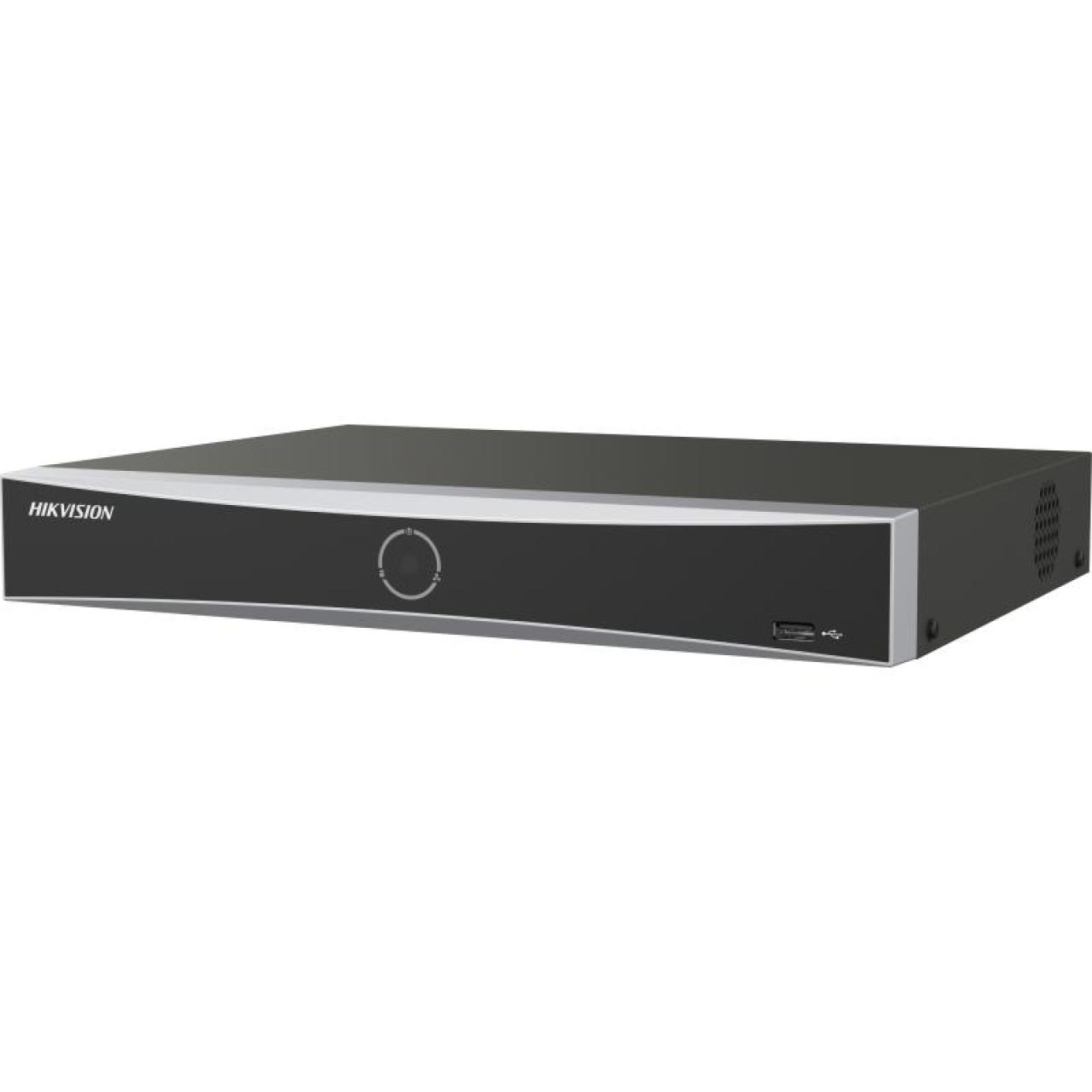

16-ch 1U K Series AcuSense 4K NVR

Name: 16-ch 1U K Series AcuSense 4K NVR
Brand: Hikvision
Availability: InStock
Rating: 5.0 (1 reviews)

Adopt Hikvision AcuSense technology to minimize manual effort and security costs
Efficient playback with AcuSearch technology
Accurate perimeter protection effectively reduces false alarms
Automatic cameras connection and configuration
Up to 16-ch IP camera inputs
H.265+/H.265/H.264+/H.264 video formats
Up to 3-ch@12 MP or 5-ch@8 MP or 10-ch@4 MP or 16-ch@2 MP decoding capacity
Up to 160 Mbps incoming bandwidth

View Less

Data Sheet

Available models:

DS-7616NXI-K1(E)

View more View Less

DS-7616NXI-K1(E) ^NEW

Specifikace
Resources
Příslušenství

Data Sheet

Intelligent Analytics
AI by NVRFacial recognition, perimeter protection, motion detection 2.0, AcuSearch
AI by CameraFacial recognition, perimeter protection, motion detection2.0, ANPR

AcuSearch
By CameraAll channels *：The camera should enable AcuSearch function

Ochrana perimetru
By NVRVideo analysis (HD network camera, H.264/H.265) for human and vehicle recognition to reduce false alarm. Up to 4 MP: 2-ch; 8 MP to 5 MP: 1-ch
By CameraAll channels

Target Recognition
Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
Facial Detection and Analytics PerformanceUp to 4 MP: 2-ch; 8 MP to 5 MP: 1-ch
Srovnání obrazu obličeje8-ch
Knihovna obrazů obličejeUp to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 1 GB)

Detekce pohybu 2.0
By NVRAll channels, up to 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
By CameraAll channels

Video and Audio
IP Video Input16-ch
IP Speaker Input4-ch
Incoming Bandwidth160 Mbps
Outgoing Bandwidth80 Mbps
HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output1-ch, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output ModeHDMI/VGA independent output
Audio výstup1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Dekódování
Formát dekódováníH.265/H.265+/H.264/H.264+
Rozlišení záznamu16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF *: 16 MP is only available for channel 1.
Synchronní přehrávání16-ch
Schopnost dekódováníAI on: 2-channel 12 MP@30 fps, 4-channel 8 MP@30 fps, 5-channel 6 MP@30 fps, 8-channel 4 MP@30 fps, 10-channel 3 MP@30fps, 16-channel 2 MP@30fps AI off: 3-channel 12 MP@30 fps, 5-channel 8 MP@30 fps, 6-channel 6 MP@30 fps, 10-channel 4 MP@30 fps, 13-channel 3 MP@30fps, 16-channel 2 MP@30fps
Typ streamuVideo, Video and Audio
Audio kompreseG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2

Síť
Vzdálené připojení128
APIONVIF (profile S/G); SDK; ISAPI
Compatible BrowserIE 11, Chrome 91, Firefox 88, Safari 12, Edge 91,or above version
Síťový protokolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Síťové rozhraní2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface;1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Auxiliary Interface
SATA1 SATA interface
KapacitaUp to 16 TB capacity for each HDD
Vstup/výstup alarmu4/1;NA
USB rozhraníFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0

Všeobecné
GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Hebrew, Ukrainian, Indonesian
VentilátorSupports
Zdroj napájení12 VDC, 1.5 A
Spotřeba≤ 10 W (without HDD)
Pracovní teplota-10 °C to 55 °C (14 °F to 131 °F)
Pracovní vlhkost10% to 90%
Rozměry (Š × H × V)319 mm × 240 mm × 48 mm (12.56 × 9.43 × 1.87 inch)
Váha≤ 2kg (without HDD, 3 lb.)

Certifikace
CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 55035: 2017
Obtained CertificationCE,CB,REACH,WEEE,UKCA,RCM,IC

Intelligent Analytics

AI by NVR

Facial recognition, perimeter protection, motion detection 2.0, AcuSearch

AI by Camera

Facial recognition, perimeter protection, motion detection2.0, ANPR

AcuSearch

By Camera

All channels *：The camera should enable AcuSearch function

Ochrana perimetru

By NVR

Video analysis (HD network camera, H.264/H.265) for human and vehicle recognition to reduce false alarm. Up to 4 MP: 2-ch; 8 MP to 5 MP: 1-ch

By Camera

All channels

Target Recognition

Facial Detection and Analytics

Face picture comparison, human face capture, face picture search

Facial Detection and Analytics Performance

Up to 4 MP: 2-ch; 8 MP to 5 MP: 1-ch

Srovnání obrazu obličeje

8-ch

Knihovna obrazů obličeje

Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 1 GB)

Detekce pohybu 2.0

By NVR

All channels, up to 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm

By Camera

All channels

Video and Audio

IP Video Input

16-ch

IP Speaker Input

4-ch

Incoming Bandwidth

160 Mbps

Outgoing Bandwidth

80 Mbps

HDMI Output

1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA Output

1-ch, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output Mode

HDMI/VGA independent output

Audio výstup

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Dekódování

Formát dekódování

H.265/H.265+/H.264/H.264+

Rozlišení záznamu

16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF *: 16 MP is only available for channel 1.

Synchronní přehrávání

16-ch

Schopnost dekódování

AI on: 2-channel 12 MP@30 fps, 4-channel 8 MP@30 fps, 5-channel 6 MP@30 fps, 8-channel 4 MP@30 fps, 10-channel 3 MP@30fps, 16-channel 2 MP@30fps AI off: 3-channel 12 MP@30 fps, 5-channel 8 MP@30 fps, 6-channel 6 MP@30 fps, 10-channel 4 MP@30 fps, 13-channel 3 MP@30fps, 16-channel 2 MP@30fps

Typ streamu

Video, Video and Audio

Audio komprese

G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2

Síť

Vzdálené připojení

128

API

ONVIF (profile S/G); SDK; ISAPI

Compatible Browser

IE 11, Chrome 91, Firefox 88, Safari 12, Edge 91,or above version

Síťový protokol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Síťové rozhraní

2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface;1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Auxiliary Interface

SATA

1 SATA interface

Kapacita

Up to 16 TB capacity for each HDD

Vstup/výstup alarmu

4/1;NA

USB rozhraní

Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0

Všeobecné

GUI Language

English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Hebrew, Ukrainian, Indonesian

Ventilátor

Supports

Zdroj napájení

12 VDC, 1.5 A

Spotřeba

≤ 10 W (without HDD)

Pracovní teplota

-10 °C to 55 °C (14 °F to 131 °F)

Pracovní vlhkost

10% to 90%

Rozměry (Š × H × V)

319 mm × 240 mm × 48 mm (12.56 × 9.43 × 1.87 inch)
