AcuSeek NEW HOT
add compare icon

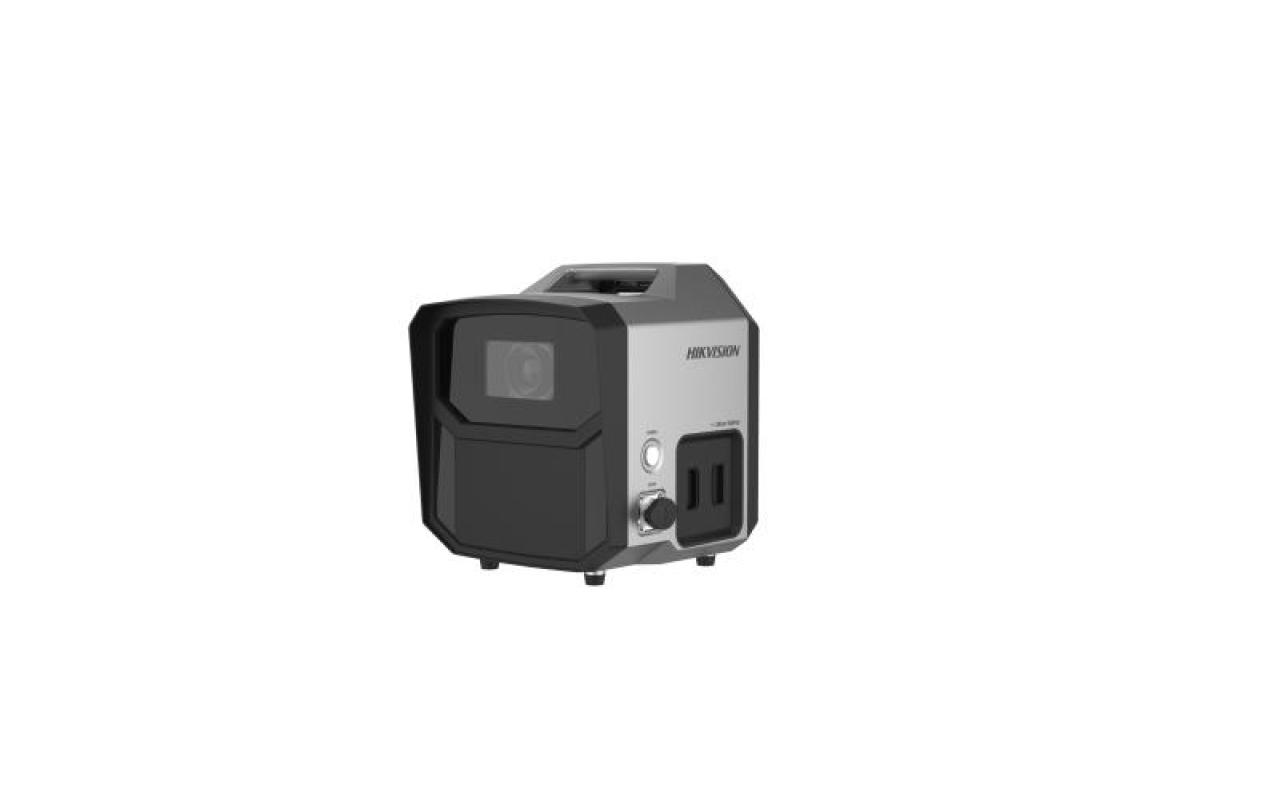

12 MP Portable Radar Speed Detector

  • High quality imaging with 12 MP resolution(1.1'' GMOS)
  • All-in-one design, integrating camera, radar and supplement light
  • Equipped with an 8-inch touch screen, the setup can be completed within 5 minutes.
  • Support speed detection with built-in radar, the speeding ranged from 10 to 320 km/h
  • Support license plate recognition (LPR)
  • Large storage capacity, up to 1 TB SSD
  • Built-in Two detachable lithium batterys(13.2AH, 7.27V) for power supply
View Less
View more
Data Sheet
Sales Inquiry

Available models:

iDS-TDIC00-HI/PT25
View more View Less
iDS-TDIC00-HI
Data Sheet

Specification

  • Camera
  • Image Sensor1.1" Progressive Scan CMOS
  • Max. Resolution4112 × 3072
  • Min. IlluminationColor: 0.001 Lux @ (F1.4, AGC ON), B/W: 0.0005 Lux @ (F1.4, AGC ON), 0 Lux with IR
  • Shutter Time50 to 40000 μs
  • Day & NightIR cut filter
  • Lens
  • Lens TypeFixed focal lens, 25 mm
  • Focal Length & FOV 25 mm, horizontal FOV 32.1°, vertical FOV 23.9°, diagonal FOV 40.3°
  • Focus Auto
  • ApertureF1.6
  • Illuminator
  • Built-in Supplement Light TypeIR light
  • Light Bead6
  • Built-in Supplement Light RangeUp to 50 m
  • Flashlight Control Supports light control/time control
  • IR Wavelength850 nm
  • Radar
  • Working Frequency24.05 to 24.25 GHz
  • Modulation WaveformFMCW
  • Speed Measuring Range 10 to 320 km/h
  • Max. Detectable TargetsUp to 32
  • Speed Measuring Accuracy± 2 km/h
  • Antenna Beam Width35° × 16°
  • Coverage LanesUp to 3 lane(s)
  • Capture Rate≥ 95%
  • Video
  • Main Stream 50Hz: 25 fps (4112 × 3072, 3296 × 2472, 3392 × 2008, 2560 × 1920, 2048 × 1536, 1920 × 1080, 1600 × 1200, 1280 × 720) 60Hz: 30 fps (4112 × 3072, 3296 × 2472, 3392 × 2008, 2560 × 1920, 2048 × 1536, 1920 × 1080, 1600 × 1200, 1280 × 720)
  • Sub-Stream 50 Hz: 25 fps (1920 × 1080, 1600 × 1200, 1280 × 720, 704 × 576) 60 Hz: 30 fps (1920 × 1080, 1600 × 1200, 1280 × 720, 704 × 576)
  • Third Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576)
  • Video Compression Main stream: H.265/H.264/MJPEG,, Sub-stream: H.265/H.264/MJPEG,, Third stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • PTZ
  • Pan Range-10° to 10°
  • Tilt Range-5° to 3°
  • Network
  • ProtocolsTCP/IP,HTTP,HTTPS,DHCP,DNS,DDNS,RTSP,NTP,SNMP,802.1X,QoS,IPv4/IPv6,UDP
  • Simultaneous Live ViewUp to 6 channels
  • APIISAPI,SDK,ISUP
  • User/HostUp to 16 users
  • SecurityPassword protection,Complicated password,HTTPS encryption,IP address filter,Basic and digest authentication for HTTP/HTTPS,RTP/RTSP over HTTPS,Control timeout settings,Security audit log,802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5),TLS 1.3
  • Network StorageLocal storage,CVR,ANR
  • Web BrowserChrome V61+, IE9 to IE11, Firefox V41+, Edge
  • Wireless (Wi-Fi)
  • Encryption ModeWPA-PSK/WPA2-PSK
  • Wi-Fi ProtocolIEEE 802.11a/b/g/n/ac/ax
  • Frequency Range 2.4 GHz~2.4835 GHz, 5.150 GHz~5.850 GHz
  • Channel Bandwidth 20/40/80 MHz
  • Modulation802.11b: CCK(11,5.5Mbps),QPSK(2Mbps),BPSK(1Mbps), 802.11a/g/n/ac/ax: OFDM
  • Transfer Rate 11a: up to 54 Mbps, 11b: up to 11 Mbps, 11g: up to 54 Mbps, 11n: up to 150 Mbps, 11ac: up to 433.3 Mbps, 11ax: up to 600 Mbps
  • Wireless RangeUp to 120 m (The performance varies based on actual environment.)
  • Wireless (Mobile Communication)
  • FrequencyLTE FDD: Band 1/3/5/7/8/20/28 LTE TDD: Band 38/40/41 WCDMA: Band 1/5/8 GSM/GPRS/EDGE: 850/900/1800MHz
  • Standard LTE-FDD, LTE-TDD, DC-HSPA+, WCDMA, EDGE, GPRS
  • SIM Card TypeNano SIM
  • Image
  • Image SettingsSaturation, brightness, contrast, white balance, AGC
  • Day/Night SwitchAuto,Schedule,Manual
  • Image EnhancementBLC, HLC, 3D DNR
  • Supplement Detection (Satellite Positioning)
  • Satellite PositioningGPS
  • Interface
  • Video Output2 outputs for extra supplement light control
  • Ethernet Interface1 RJ45 10M/100M/1000M Ethernet interface
  • USB1 USB 3.0
  • Event
  • Basic EventHDD Error, network disconnected, IP address conflicted
  • Road Traffic and Vehicle Detection
  • Trigger ModeRadar trigger,Video trigger
  • Capture Speed Range10 to 320 km/h
  • CoverageUp to 3 lanes
  • Smart FunctionLicense Plate Recognition, Vehicle type classification, Vehicle Color,Vehicle Brand
  • LPR Countries/RegionsMiddle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain, Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria, Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka, America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala, Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina, Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan
  • Accuracy (Under recommended installation and lighting conditions)Capture rate > 95%, LPR accuracy > 98%, Mistaken capture rate < 5%
  • No License Plate DetectionSupported
  • General
  • Operating SystemLinux and Android dual system
  • Power DC12V, 6.5 A, max. 78W
  • Material ADC & PC
  • Dimension292 mm × 270.5 mm × 252.8 mm (11.50" × 10.65" × 9.95") (L × W × H)
  • Package Dimension435 mm × 375 mm × 395 mm (17.13" × 14.76" × 15.55") (L × W × H)
  • Weight Approx. 8.3 kg (18.3 lb.)
  • With Package WeightApprox. 11 kg (24.3 lb.)
  • Operating Condition-30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing), Lithium batery included: -20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Storage Condition-30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
  • General FunctionPassword protection,One-key reset,Three streams,Heartbeat, NTP time sync, Anti-Theft/Fall Detection, Power Management
  • Approval
  • RF CE-RED: EN 300328 V2.2.2, EN 303413 V1.2.1, EN 301511 V12.5.1, EN 301908-1 V15.2.1, EN 301908-2 V13.1.1, EN 301908-13 V13.2.1, ETSI TS 136 521-1 V18.4.0, EN IEC 62311: 2020
  • EMC CE-EMC: EN 301489-1 V2.2.3, EN 301489-17 V3.3.1, EN 301489-19 V2.2.1, EN 301489-51 V2.1.1, EN 301489-52 V1.3.1,EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2: 2019+A1:2021+A2:2024, EN 55032: 2015+A11:2020+A1:2020, EN 50130-4: 2011+A1:2014, EN 61000-3-3: 2013+A1:2019+A2:2021,EN IEC 61000-3-2:2019+A1:2021+A2:2024, EN IEC 61326-1: 2021
  • SafetyCB: IEC 61010-1:2010, IEC 61010-1:2010/AMD1:2016 CE-LVD: EN 61010-1:2010+A1:2019
  • EnvironmentCE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
  • ProtectionIK10: IEC 62262:2002,IP66: IEC 60529-2013
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1.1" Progressive Scan CMOS
Max. Resolution
4112 × 3072
Min. Illumination
Color: 0.001 Lux @ (F1.4, AGC ON), B/W: 0.0005 Lux @ (F1.4, AGC ON), 0 Lux with IR
Shutter Time
50 to 40000 μs
Day & Night
IR cut filter
Lens
Lens Type
Fixed focal lens, 25 mm
Focal Length & FOV
25 mm, horizontal FOV 32.1°, vertical FOV 23.9°, diagonal FOV 40.3°
Focus
Auto
Aperture
F1.6
Illuminator
Built-in Supplement Light Type
IR light
Light Bead
6
Built-in Supplement Light Range
Up to 50 m
Flashlight Control
Supports light control/time control
IR Wavelength
850 nm
Radar
Working Frequency
24.05 to 24.25 GHz
Modulation Waveform
FMCW
Speed Measuring Range
10 to 320 km/h
Max. Detectable Targets
Up to 32
Speed Measuring Accuracy
± 2 km/h
Antenna Beam Width
35° × 16°
Coverage Lanes
Up to 3 lane(s)
Capture Rate
≥ 95%
Video
Main Stream
50Hz: 25 fps (4112 × 3072, 3296 × 2472, 3392 × 2008, 2560 × 1920, 2048 × 1536, 1920 × 1080, 1600 × 1200, 1280 × 720) 60Hz: 30 fps (4112 × 3072, 3296 × 2472, 3392 × 2008, 2560 × 1920, 2048 × 1536, 1920 × 1080, 1600 × 1200, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1920 × 1080, 1600 × 1200, 1280 × 720, 704 × 576) 60 Hz: 30 fps (1920 × 1080, 1600 × 1200, 1280 × 720, 704 × 576)
Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576)
Video Compression
Main stream: H.265/H.264/MJPEG,, Sub-stream: H.265/H.264/MJPEG,, Third stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
PTZ
Pan Range
-10° to 10°
Tilt Range
-5° to 3°
Network
Protocols
TCP/IP,HTTP,HTTPS,DHCP,DNS,DDNS,RTSP,NTP,SNMP,802.1X,QoS,IPv4/IPv6,UDP
Simultaneous Live View
Up to 6 channels
API
ISAPI,SDK,ISUP
User/Host
Up to 16 users
Security
Password protection,Complicated password,HTTPS encryption,IP address filter,Basic and digest authentication for HTTP/HTTPS,RTP/RTSP over HTTPS,Control timeout settings,Security audit log,802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5),TLS 1.3
Network Storage
Local storage,CVR,ANR
Web Browser
Chrome V61+, IE9 to IE11, Firefox V41+, Edge
Wireless (Wi-Fi)
Encryption Mode
WPA-PSK/WPA2-PSK
Wi-Fi Protocol
IEEE 802.11a/b/g/n/ac/ax
Frequency Range
2.4 GHz~2.4835 GHz, 5.150 GHz~5.850 GHz
Channel Bandwidth
20/40/80 MHz
Modulation
802.11b: CCK(11,5.5Mbps),QPSK(2Mbps),BPSK(1Mbps), 802.11a/g/n/ac/ax: OFDM
Transfer Rate
11a: up to 54 Mbps, 11b: up to 11 Mbps, 11g: up to 54 Mbps, 11n: up to 150 Mbps, 11ac: up to 433.3 Mbps, 11ax: up to 600 Mbps
Wireless Range
Up to 120 m (The performance varies based on actual environment.)
Wireless (Mobile Communication)
Frequency
LTE FDD: Band 1/3/5/7/8/20/28 LTE TDD: Band 38/40/41 WCDMA: Band 1/5/8 GSM/GPRS/EDGE: 850/900/1800MHz
Standard
LTE-FDD, LTE-TDD, DC-HSPA+, WCDMA, EDGE, GPRS
SIM Card Type
Nano SIM
Image Settings
Saturation, brightness, contrast, white balance, AGC
Day/Night Switch
Auto,Schedule,Manual
Image Enhancement
BLC, HLC, 3D DNR
Supplement Detection (Satellite Positioning)
Satellite Positioning
GPS
Interface
Video Output
2 outputs for extra supplement light control
Ethernet Interface
1 RJ45 10M/100M/1000M Ethernet interface
USB
1 USB 3.0
Event
Basic Event
HDD Error, network disconnected, IP address conflicted
Road Traffic and Vehicle Detection
Trigger Mode
Radar trigger,Video trigger
Capture Speed Range
10 to 320 km/h
Coverage
Up to 3 lanes
Smart Function
License Plate Recognition, Vehicle type classification, Vehicle Color,Vehicle Brand
LPR Countries/Regions
Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain, Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria, Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka, America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala, Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina, Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan
Accuracy (Under recommended installation and lighting conditions)
Capture rate > 95%, LPR accuracy > 98%, Mistaken capture rate < 5%
No License Plate Detection
Supported
General
Operating System
Linux and Android dual system
Power
DC12V, 6.5 A, max. 78W
Material
ADC & PC
Dimension
292 mm × 270.5 mm × 252.8 mm (11.50" × 10.65" × 9.95") (L × W × H)
Package Dimension
435 mm × 375 mm × 395 mm (17.13" × 14.76" × 15.55") (L × W × H)
Weight
Approx. 8.3 kg (18.3 lb.)
With Package Weight
Approx. 11 kg (24.3 lb.)
Operating Condition
-30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing), Lithium batery included: -20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
Storage Condition
-30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
General Function
Password protection,One-key reset,Three streams,Heartbeat, NTP time sync, Anti-Theft/Fall Detection, Power Management
Approval
RF
CE-RED: EN 300328 V2.2.2, EN 303413 V1.2.1, EN 301511 V12.5.1, EN 301908-1 V15.2.1, EN 301908-2 V13.1.1, EN 301908-13 V13.2.1, ETSI TS 136 521-1 V18.4.0, EN IEC 62311: 2020
EMC
CE-EMC: EN 301489-1 V2.2.3, EN 301489-17 V3.3.1, EN 301489-19 V2.2.1, EN 301489-51 V2.1.1, EN 301489-52 V1.3.1,EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2: 2019+A1:2021+A2:2024, EN 55032: 2015+A11:2020+A1:2020, EN 50130-4: 2011+A1:2014, EN 61000-3-3: 2013+A1:2019+A2:2021,EN IEC 61000-3-2:2019+A1:2021+A2:2024, EN IEC 61326-1: 2021
Safety
CB: IEC 61010-1:2010, IEC 61010-1:2010/AMD1:2016 CE-LVD: EN 61010-1:2010+A1:2019
Environment
CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
Protection
IK10: IEC 62262:2002,IP66: IEC 60529-2013
